Schneider Electric TeSys D Control Relay 5 NO <= 690V 48V AC Standard Coil CAD50E7

Name: Schneider Electric TeSys D Control Relay 5 NO <= 690V 48V AC Standard Coil CAD50E7
Brand: Schneider Electric
Price: 99.75 AED
Availability: InStock

AED 99.75

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Control Relay

Description

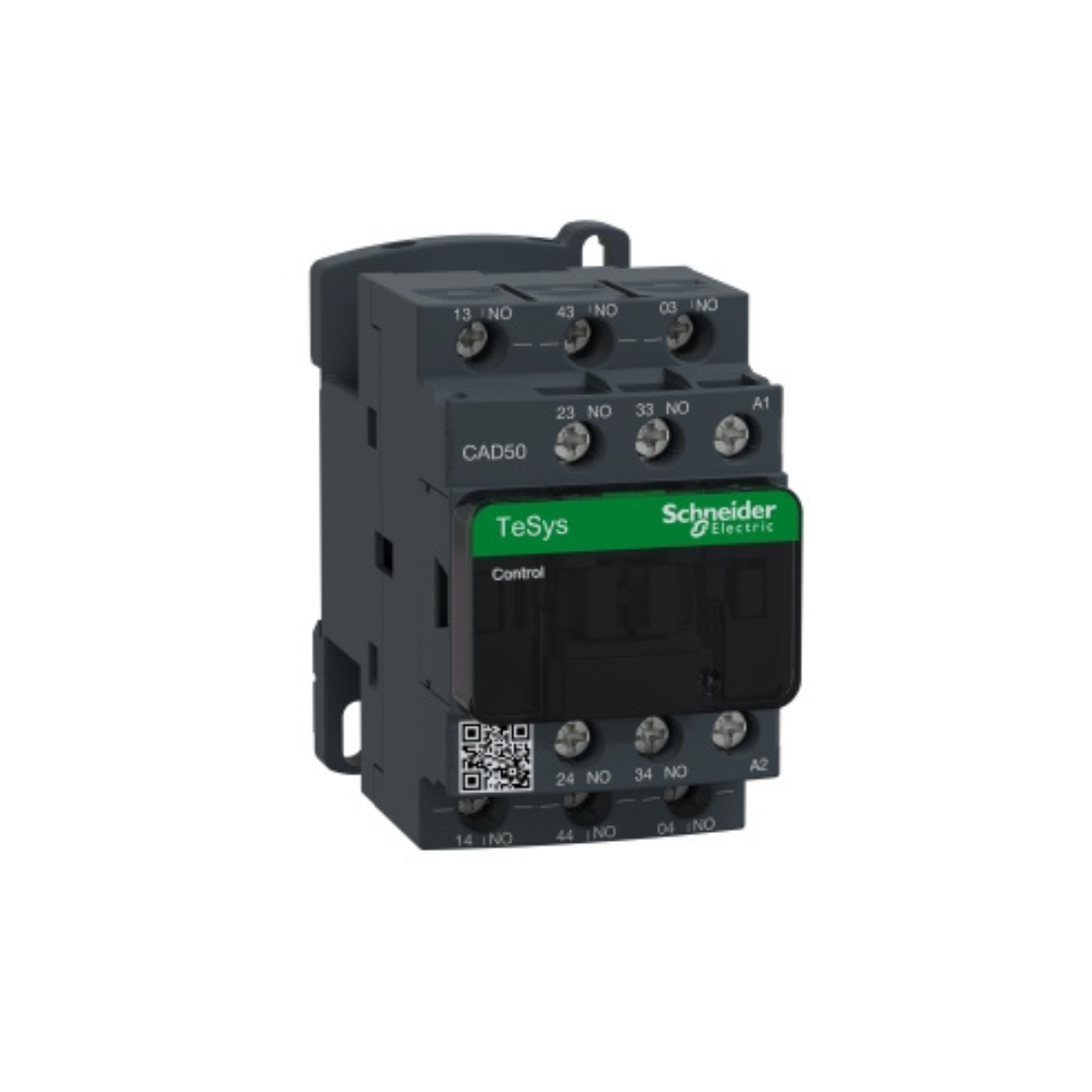

Schneider Electric CAD50E7 TeSys D Control Relay, 5 contacts (5NO), 10A/690V, to control AC-15/DC-13 electromagnetic loads. It has a 48V 50/60Hz AC control circuit connected via screw terminals. At high operating speeds of up to 180 cycles/min and an ambient temperature of -40/+60°C, it guarantees high reliability and longevity.

Compact (45mm wide), it can be clipped onto a 35mm DIN rail or fixed with a screw. Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Features

It is an electrically operated switch
It has 5 Normally Open (NO) contacts.
48V AC is the voltage required to energize the coil of the relay.

Specifications

Brand : Schneider Electric

Item Name : Control Relay

Model : CAD50E7

Conventional Free Air Thermal Current : 10 A (at 60 °C)

Control Circuit Voltage : 48 V AC 50/60 Hz

Rated Insulation Voltage : 600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1

Rated Impulse Withstand Voltage : 6 kV conforming to IEC 60947

Ambient Air Temperature For Storage : -60-80 °C

Associated Fuse Rating : 10 A gG conforming to IEC 60947-5-1

Compatibility Code : CAD

Connections - Terminals : Screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end

Contactor Application : Control Circuit

Control Circuit Type : AC at 50/60 Hz

Control Circuit Voltage Limits : 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz

Depth : 84 mm

Height : 77 mm

Hold-in Power Consumption in VA : 8-8 VA 50 Hz (at 20 °C)

Inrush Power in VA : 70-70 VA 50 Hz (at 20 °C)

IP Degree Of Protection : IP2X front face conforming to VDE 0106

Irms Rated Making Capacity : 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1

Maximum Operating Rate : 180 cyc/mn

Mechanical Durability : 30 Mcycles

Mechanical Robustness : Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6

Minimum Switching Current : 5 mA

Minimum Switching Voltage : 17 V

Mounting Support : Rail, Plate

Non-overlap Time : 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact

Operating Altitude : 0...3000 m

Operating Time : 12...22 ms coil energisation and NO closing, 4...12 ms coil de-energisation and NO opening, 4...19 ms coil energisation and NC opening, 6...17 ms coil de-energisation and NC closing

Pole Contact Composition : 5 NO

Certifications : CB Scheme, CCC, UL, CSA, EAC, CE, UKCA

Protective Treatment : TH Conforming to IEC 60068-2-30

Range Of Product : TeSys D Control Relay

Rated Operational Voltage Limits : <= 690 V AC 25...400 Hz

Tightening Torque : 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Utilisation Category : DC-13, AC-15, AC-14

Width : 45 mm

Rated Short-time Withstand Current : 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms

Ambient Air Temperature For Operation : -40-60 °C, 60-70 °C with derating

Insulation Resistance : > 10 MOhm

Standards : EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
