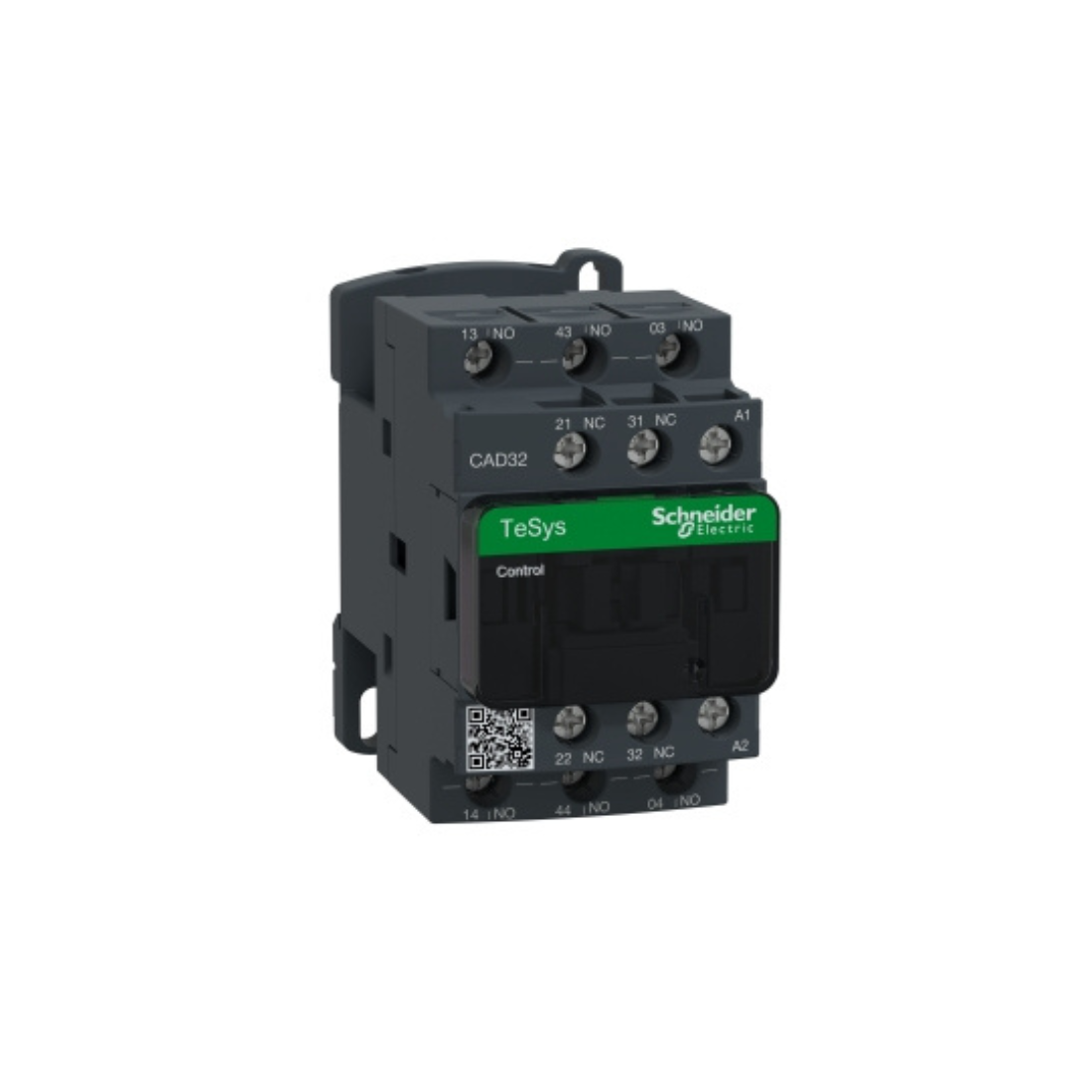

Schneider Electric TeSys D Control Relay 3NO+2NC 0-690V 115VAC 50/60Hz Standard Coil CAD32FE7
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Control Relay
Description
Schneider Electric CAD32FE7 TeSys D Control Relay, 5 contacts (3NO + 2NC), 10A/690V, to control AC-15/DC-13 electromagnetic loads. It has a 115V 50/60Hz AC control circuit connected via screw terminals. At high operating speeds of up to 180 cycles/min and an ambient temperature of -40/+60°C, it guarantees high reliability and longevity.
Compact (45mm wide), can be clipped onto a 35mm DIN rail or fixed with a screw. Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Features
- TeSys Control Relays provide a cost-effective solution to a simple application
- Same design as TeSys D, K, and SK contactors
- Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
- Compatible with all the voltages on the market
- Multiple international certifications
| Brand | Schneider Electric |
| Item Name | Control Relay |
| Model | CAD32FE7 |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Control Circuit Voltage | 115 V AC 50/60 Hz |
| Rated Insulation Voltage | 600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1 |
| Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947-5-1 |
| Compatibility Code | CAD |
| Connections - Terminals | Screw Clamp Terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end |
| Contactor Application | Control Circuit |
| Control Circuit Type | AC at 50/60 Hz |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz |
| Depth | 84 mm |
| Height | 77 mm |
| Hold-in Power Consumption in VA | 2.4-2.4 W at 20 °C |
| Inrush Power in VA | 70-70 VA 50 Hz (at 20 °C) |
| IP Degree Of Protection | IP2X front face conforming to VDE 0106 |
| Irms Rated Making Capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
| Maximum Operating Rate | 180 cyc/mn |
| Mechanical Durability | 30 Mcycles |
| Mechanical Robustness | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Mounting Support | Rail, Plate |
| Non-overlap Time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| Operating Altitude | 0...3000 m |
| Operating Time | 12...22 ms coil energisation and NO closing, 4...12 ms coil de-energisation and NO opening, 4...19 ms coil energisation and NC opening, 6...17 ms coil de-energisation and NC closing |
| Pole Contact Composition | 3 NO + 2 NC |
| Certifications | CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Protective Treatment | TH Conforming to IEC 60068-2-30 |
| Range Of Product | TeSys D Control Relay |
| Rated Operational Voltage Limits | <= 690 V AC 25...400 Hz |
| Tightening Torque | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation Category | AC-14, AC-15, DC-13 |
| Width | 45 mm |
| Rated Short-time Withstand Current | 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms |
| Ambient Air Temperature For Operation | -40-60 °C, 60-70 °C with derating |
| Insulation Resistance | > 10 MOhm |
| Standards | EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1 |
| Weight | 0.58 kg |
