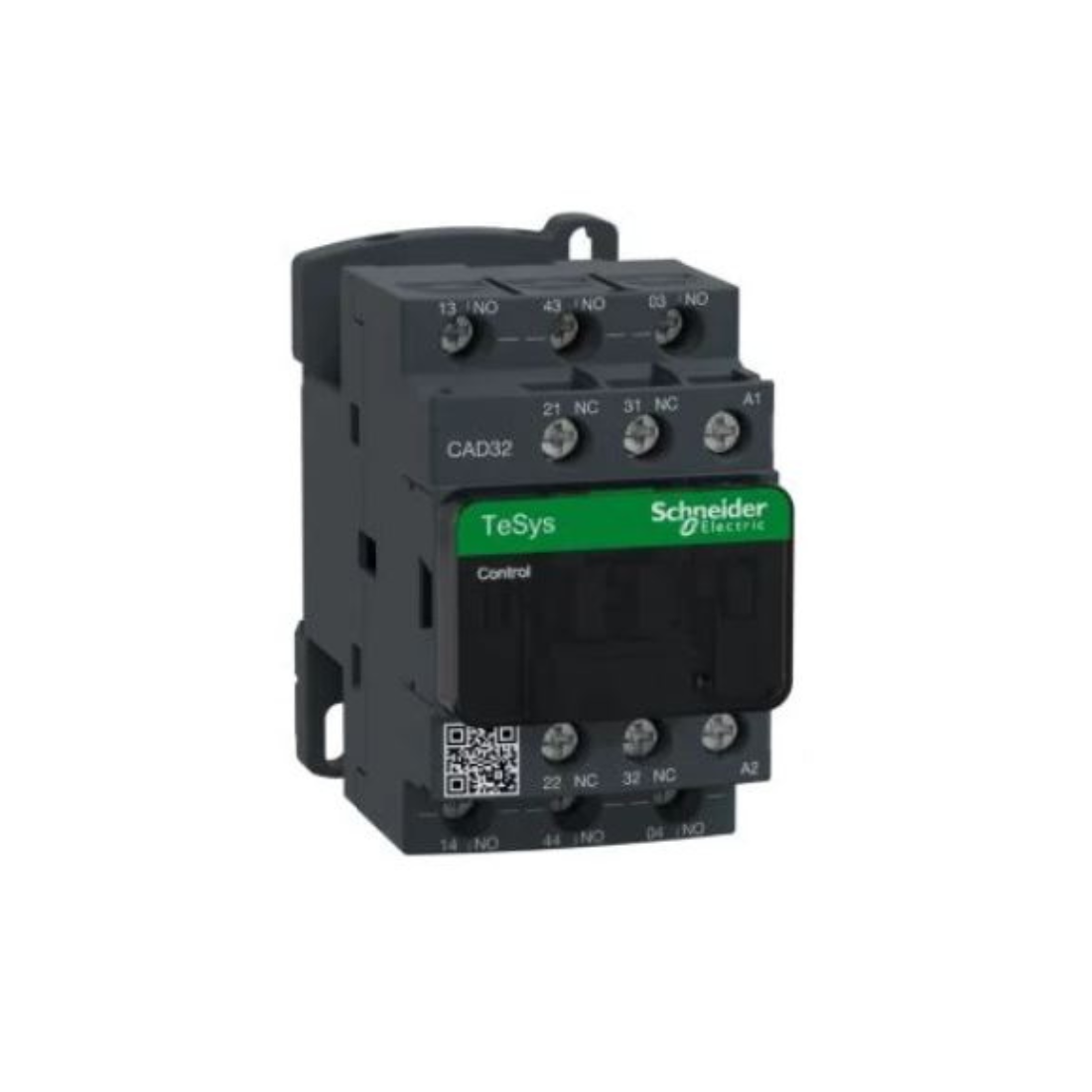

Schneider Electric TeSys D Control Relay 3 NO + 2 NC <= 690V 110V AC Standard Coil CAD32F7

Name: Schneider Electric TeSys D Control Relay 3 NO + 2 NC <= 690V 110V AC Standard Coil CAD32F7
Brand: Schneider Electric
Price: 94.5 AED
Availability: InStock

AED 94.50

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Control Relay

Description

Schneider Electric CAD32F7 TeSys D Control Relay is a device used to remotely control electrical circuits. It has 3 Normally Open (NO) contacts and 2 Normally Closed (NC) contacts. This means that in the resting state, the NO contacts are not connected, but will close when the relay is energized. Conversely, the NC contacts are connected in the resting state and will open when the relay is energized.

Control Relay is rated for up to 690V. This indicates that the It is designed to handle voltages up to 690 volts. The coil, which is the part of the relay that is energized to switch the contacts, operates at 110V AC. Schneider Electric CAD32F7 TeSys D Control Relay uses a standard design for its coil, which might be compatible with commonly used control systems.

Features

Used to remotely control electrical circuits.
It has three Normally Open (NO) contacts and two Normally Closed (NC) contacts

Specifications

Brand : Schneider Electric

Item Name : Control Relay

Model : CAD32F7

Conventional Free Air Thermal Current : 10 A (at 60 °C)

Control Circuit Voltage : 110 V AC 50/60 Hz

Rated Insulation Voltage : 600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1

Rated Impulse Withstand Voltage : 6 kV conforming to IEC 60947

Ambient Air Temperature For Storage : -60-80 °C

Associated Fuse Rating : 10 A gG conforming to IEC 60947-5-1

Compatibility Code : CAD

Connections - Terminals : screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end

Contactor Application : Control Circuit

Control Circuit Type : AC at 50/60 Hz

Control Circuit Voltage Limits : 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz

Depth : 84 mm

Height : 77 mm

Hold-in Power Consumption in VA : 8-8 VA 50 Hz (at 20 °C)

Inrush Power in VA : 70-70 VA 50 Hz (at 20 °C)

IP Degree Of Protection : IP2X front face conforming to VDE 0106

Irms Rated Making Capacity : 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1

Maximum Operating Rate : 180 cyc/mn

Mechanical Durability : 30 Mcycles

Mechanical Robustness : shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6

Minimum Switching Current : 5 mA

Minimum Switching Voltage : 17 V

Mounting Support : Rail, Plate

Non-overlap Time : 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact

Operating Altitude : 0...3000 m

Operating Time : 12...22 ms coil energisation and NO closing, 4...12 ms coil de-energisation and NO opening, 4...19 ms coil energisation and NC opening, 6...17 ms coil de-energisation and NC closing

Pole Contact Composition : 3 NO + 2 NC

Certifications : CB Scheme, CCC, UL, CSA, EAC, CE, UKCA

Protective Treatment : TH Conforming to IEC 60068-2-30

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : <= 690 V AC 25...400 Hz

Tightening Torque : 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Utilisation Category : AC-14, DC-13, AC-15

Width : 45 mm

Rated Short-time Withstand Current : 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms

Ambient Air Temperature For Operation : -40-60 °C, 60-70 °C with derating

Insulation Resistance : > 10 MOhm

Standards : EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
