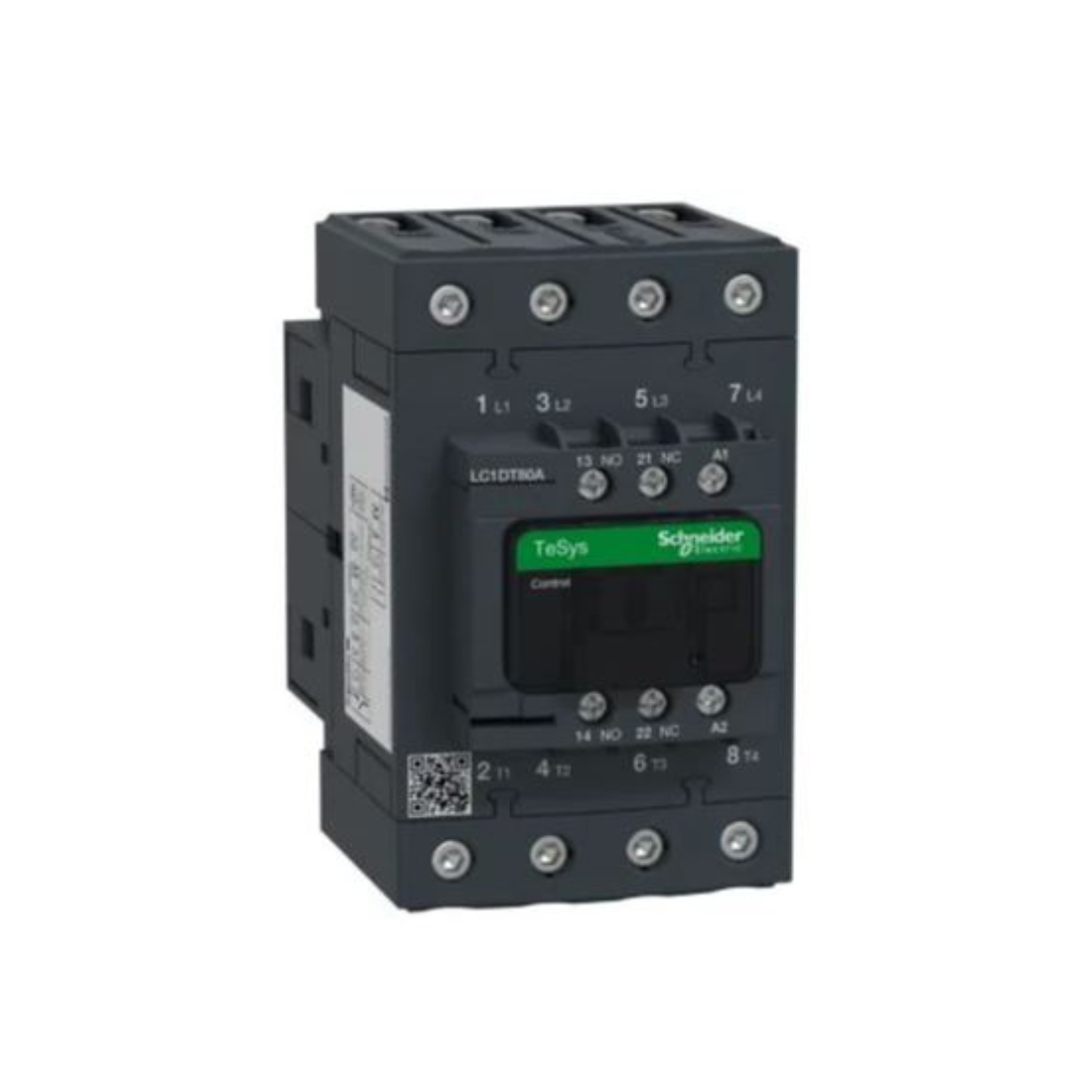

Schneider Electric TeSys D contactor 4P(4 NO) AC-1 <= 440V 80A 240V AC 50/60Hz Coil LC1DT80AU7
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Contactor
Description
Schneider Electric LC1DT80AU7 TeSys D Contactor has four sets of contacts. Each set can be used to control an independent circuit. AC-1 is a contactor duty cycle rating. AC-1 operation is intended for non-inductive or slightly inductive loads. It is mainly used for resistive loads.
<= 440V 80A is the maximum voltage and current the contactor is designed for. It can handle voltages up to 440V and the current is up to 80A. 240V AC 50/60Hz coil is the voltage and frequency of the coil. The contactor is designed to be controlled by a 240 VAC source that can operate at 50 Hz or 60 Hz.
In summary, Schneider Electric LC1DT80AU7 TeSys D Contactor is designed to handle loads up to 440 V and 80 A on an AC-1 duty cycle. Control is via a 240 V AC source operating at 50 Hz or 60 Hz. This type of contactor can be used in various applications such as controlling large motors or other heavy loads.
Features
- 80A TP AC1 Contactor AC1 240V AC Coil
- Used to make or break an electrical connection
- 4-pole contactor for connection by screw clamp terminals
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1DT80AU7 |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) for signalling circuit, 80 A (at 60 °C) for power circuit |
| Control Circuit Voltage | 240 V AC 50/60 Hz |
| Rated Insulation Voltage | Power Circuit: 600 V CSA certified, power circuit: 600 V UL certified, signalling circuit: 690 V conforming to IEC 60947-1, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified, power circuit: 690 V conforming to IEC 60947-4-1 |
| Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 125 A gG at <= 690 V coordination type 1 for power circuit, 125 A gG at <= 690 V coordination type 2 for power circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Average Impedance | 1.6 mOhm - Ith 80 A 50 Hz for power circuit |
| Climatic Withstand | Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Coil Technology | Without built-in suppressor module |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: solid without cable end |
| Contact Compatibility | M6 |
| Contactor Application | Motor Control, Resistive Load |
| Control Circuit Type | AC at 50/60 Hz |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz |
| Depth | 120 mm |
| Electrical Durability | 1.4 Mcycles 80 A AC-1 at Ue <= 440 V |
| Fire Resistance | 850 °C Conforming to IEC 60695-2-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Heat Dissipation | 4-5 W at 50/60 Hz |
| Height | 122 mm |
| Hold-in Power Consumption in VA | 13-13 VA 60 Hz cos phi 0.3 (at 20 °C), 15-15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Inrush Power in VA | 140-140 VA 60 Hz cos phi 0.75 (at 20 °C), 160-160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 1000 A at 440 V for power circuit conforming to IEC 60947 |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Mechanical Durability | 6 Mcycles |
| Mechanical Robustness | vibrations contactor open (2 Gn, 5...300 Hz) , vibrations contactor closed (4 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (10 Gn for 11 ms) |
| Minimum Switching Current | 5 mA for signalling circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Mounting Support | Rail, Plate |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Operating Altitude | 0...3000 m |
| Operating Time | 4...19 ms opening, 12...26 ms closing |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C, 60-70 °C with derating |
| Pole Contact Composition | 4 NO |
| Poles Description | 4P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 10.2 W AC-1 |
| Certifications | UL, CSA, GL, GOST, DNV, LROS (Lloyds register of shipping), RINA, BV, CCC |
| Protective Cover | With |
| Protective Treatment | TH Conforming to IEC 60068-2-30 |
| Range | TeSys, TeSys Deca |
| Rated Breaking Capacity | 1000 A at 440 V for power circuit conforming to IEC 60947 |
| Rated Operational Voltage Limits | Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1 |
| Tightening Torque | control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 8 N.m - on screw clamp terminals - cable 25-35 mm² hexagonal screw head 4 mm, power circuit: 5 N.m - on screw clamp terminals - cable 1-25 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation Category | AC-1 |
| Rated Operational Current | 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| Width | 70 mm |
| Rated Short-time Withstand Current | 520 A 40 °C - 10 s for power circuit, 900 A 40 °C - 1 s for power circuit, 110 A 40 °C - 10 min for power circuit, 260 A 40 °C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Weight | 1.15 kg |
