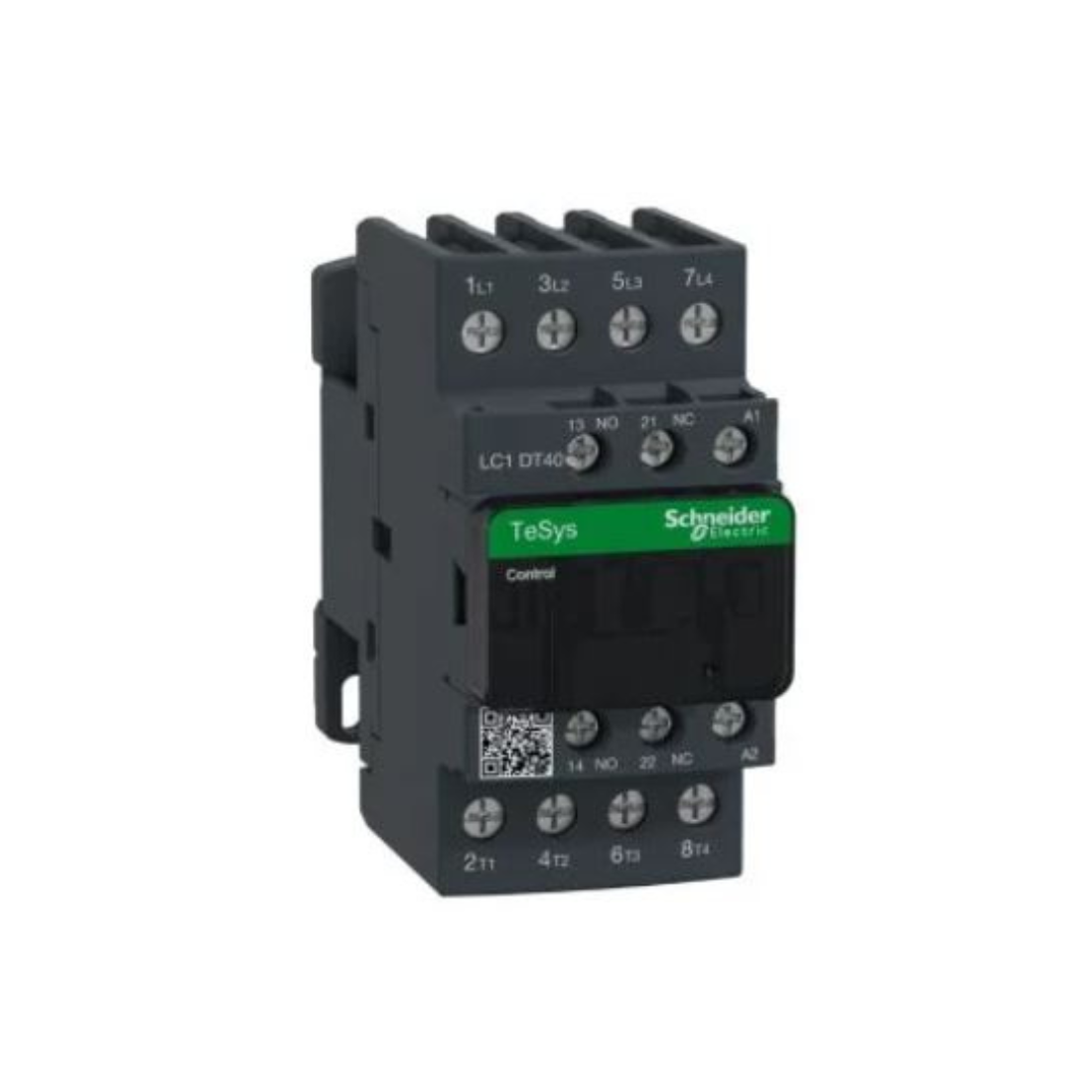

Schneider Electric TeSys D Contactor 4P(4 NO) AC-1 <= 440V 40A 220V AC 50/60Hz Coil LC1DT40M7

Name: Schneider Electric TeSys D Contactor 4P(4 NO) AC-1 <= 440V 40A 220V AC 50/60Hz Coil LC1DT40M7
Brand: Schneider Electric
Price: 303.45 AED
Availability: InStock

AED 303.45

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Contactor

Description

Schneider Electric LC1DT40M7 TeSys D Contactor is an electrically controlled switch used for switching an electrical power circuit. The contactor has four poles. In electrical terms, a pole refers to a set of contacts. A 4-pole contactor has four sets of contacts that open and close simultaneously.

AC-1 is a code that defines the type of load the contactor is designed for. It is a category for non-inductive or slightly inductive loads. It's used for switching resistive loads, such as incandescent lamps, heating elements, and other non-inductive loads. <= 440V is the maximum voltage the contactor can handle. In this case, it can handle voltages up to 440 volts.

40A is the maximum current the contactor can handle under normal operating conditions. It's designed to handle up to 40 amperes of current. 220V AC 50/60Hz Coil is the characteristic of the coil that controls the contactor. It's designed to operate with a 220-volt AC supply at either 50 or 60 Hertz.

In practical terms, Schneider Electric LC1DT40M7 TeSys D Contactor is designed for applications that need to switch a resistive load (AC-1) of up to 40 amperes at voltages of up to 440 volts. The coil requires a 220-volt AC supply, which can operate at either 50 or 60 Hertz.

Features

40A TP AC1 Contactor AC1 220V AC Coil
Used to make or break an electrical connection
4-pole contactor for connection by screw clamp terminals

Specifications

Brand : Schneider Electric

Item Name : Contactor

Model : LC1DT40M7

Conventional Free Air Thermal Current : 10 A (at 60 °C) for signalling circuit, 40 A (at 60 °C) for power circuit

Control Circuit Voltage : 220 V AC 50/60 Hz

Rated Operational Voltage : Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC

Rated Insulation Voltage : Power Circuit: 600 V CSA certified, power circuit: 600 V UL certified, signalling circuit: 690 V conforming to IEC 60947-1, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified, power circuit: 690 V conforming to IEC 60947-4-1

Rated Impulse Withstand Voltage : 6 kV conforming to IEC 60947

Associated Fuse Rating : 10 A gG for signalling circuit conforming to IEC 60947-5-1, 80 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Auxiliary Contacts Type : Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1

Average Impedance : 2 mOhm - Ith 40 A 50 Hz for power circuit

Climatic Withstand : Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Coil Technology : Without built-in suppressor module

Compatibility Code : LC1D

Connections - Terminals : control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: solid without cable end

Contact Compatibility : M6

Contactor Application : Motor Control, Resistive Load

Control Circuit Type : AC at 50/60 Hz

Control Circuit Voltage Limits : 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz

Depth : 99 mm

Electrical Durability : 1.4 Mcycles 40 A AC-1 at Ue <= 440 V

Fire Resistance : 850 °C Conforming to IEC 60695-2-1

Flame Retardance : V1 conforming to UL 94

Heat Dissipation : 2-3 W at 50/60 Hz

Height : 91 mm

Hold-in Power Consumption in VA : 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C), 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)

Inrush Power in VA : 70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)

Insulation Resistance : > 10 MOhm for Signalling Circuit

IP Degree Of Protection : IP20 Front Face Conforming to IEC 60529

Irms Rated Making Capacity : 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 450 A at 440 V for power circuit conforming to IEC 60947

Maximum Operating Rate : 3600 cyc/h 60 °C

Mechanical Durability : 15 Mcycles

Mechanical Robustness : vibrations contactor open (2 Gn, 5...300 Hz) , vibrations contactor closed (4 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (8 Gn for 11 ms)

Minimum Switching Current : 5 mA for signalling circuit

Minimum Switching Voltage : 17 V for signalling circuit

Mounting Support : Rail, Plate

Non-overlap Time : 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact

Operating Altitude : 0...3000 m

Operating Time : 12...22 ms closing, 4...19 ms opening

Overvoltage Category : III

Permissible Ambient Air Temperature Around The Device : -40-60 °C, 60-70 °C with derating

Pole Contact Composition : 4 NO

Poles Description : 4P

Pollution Degree : 3

Power Dissipation Per Pole : 3.2 W AC-1

Certifications : UL, LROS (Lloyds register of shipping), CCC, BV, RINA, DNV, GL, GOST, CSA

Protective Cover : With

Protective Treatment : TH Conforming to IEC 60068-2-30

Range : TeSys, TeSys Deca

Rated Breaking Capacity : 450 A at 440 V for power circuit conforming to IEC 60947

Rated Operational Voltage Limits : Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC

Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Signalling Circuit Frequency : 25...400 Hz

Standards : CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Utilisation Category : AC-4, AC-1, AC-3, AC-3e

Rated Operational Current : 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Width : 45 mm

Rated Short-time Withstand Current : 50 A 40 °C - 10 min for power circuit, 120 A 40 °C - 1 min for power circuit, 240 A 40 °C - 10 s for power circuit, 380 A 40 °C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit

Weight : 0.425 kg
