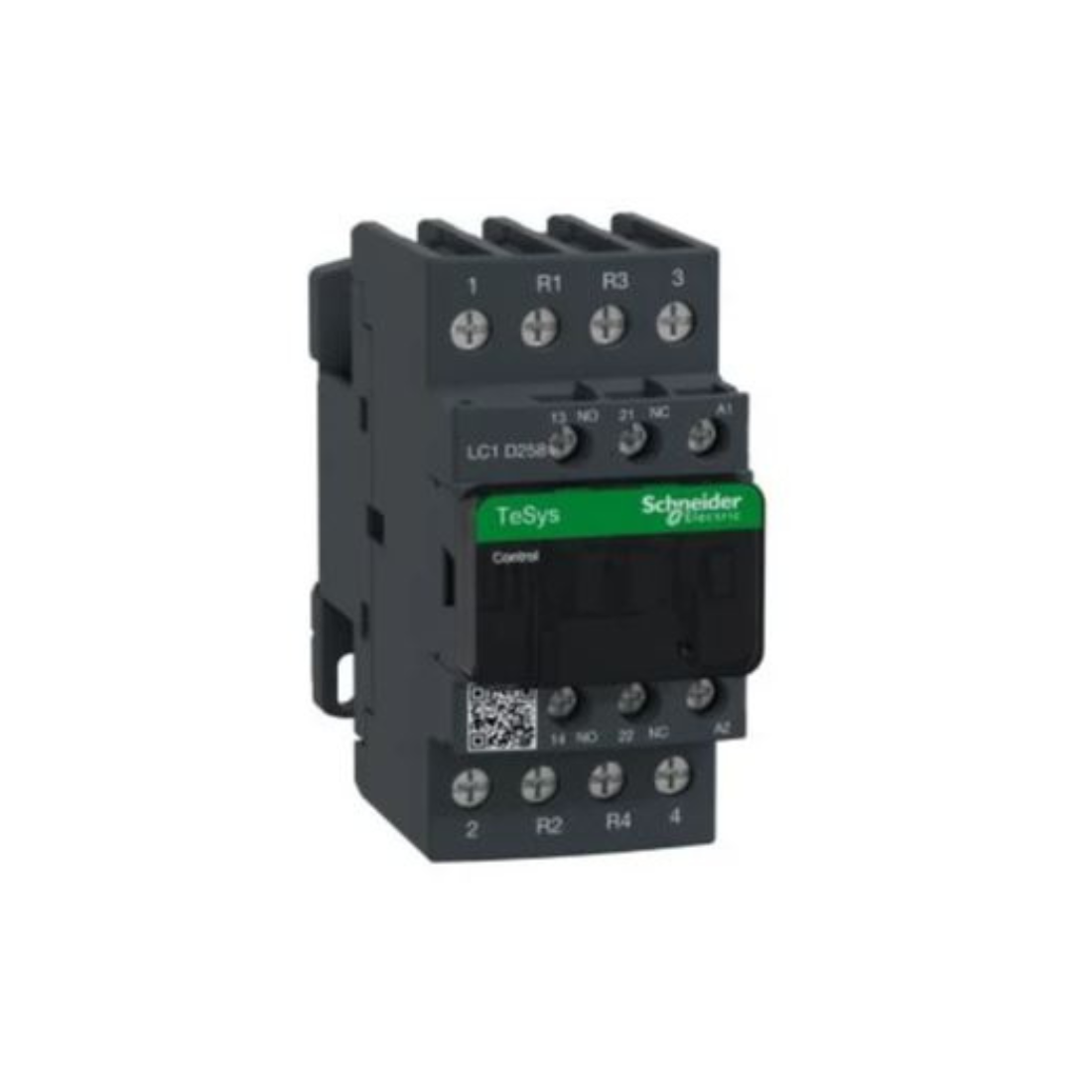

Schneider Electric TeSys D Contactor 4P(2 NO + 2 NC) AC-1 <= 440V 40A 48V AC Coil LC1D258E7

Name: Schneider Electric TeSys D Contactor 4P(2 NO + 2 NC) AC-1 <= 440V 40A 48V AC Coil LC1D258E7
Brand: Schneider Electric
Price: 316.05 AED
Availability: InStock

AED 316.05

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Contactor

Description

Schneider Electric LC1D258E7 TeSys D Contactor is an electrical relay that is used to control a high-voltage circuit with a lower-voltage control circuit. It's commonly used in applications like motor control. It is a four-pole contactor specifically designed to handle non-inductive or slightly inductive loads, making it suitable for applications involving resistive loads. AC-1 refers to non-inductive or slightly inductive loads. AC-1 rated contactors are not designed to handle motors or other highly inductive loads.

<= 440V is the maximum voltage the contactor is designed to handle. In this case, it can handle voltages up to 440 volts. 40A is the maximum current the contactor can handle. In this case, it's rated for a maximum of 40 amperes. 48V AC Coil is the voltage and type of the coil used to energize the contactor. It requires a 48-volt AC power supply to activate the contactor.

In summary, Schneider Electric LC1D258E7 TeSys D Contactor is a three-pole contactor, suitable for AC-3 applications, with a maximum voltage rating of 440V and a maximum current rating of 40A. It is designed to be activated by a 48V AC power supply.

Features

40A TP AC1 Contactor AC1 48V AC Coil
Control the flow of electric current in a circuit
4-pole contactor for connection by screw clamp terminals

Specifications

Brand : Schneider Electric

Item Name : Contactor

Model : LC1D258E7

Rated Operational Ccurrent : 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Conventional Free Air Thermal Current : 10 A (at 60 °C) for signalling circuit, 40 A (at 60 °C) for power circuit

Control Circuit Voltage : 48 V AC 50/60 Hz

Rated Operational Voltage : Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC

Rated Insulation Voltage : power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V CSA certified, power circuit: 600 V UL certified, signalling circuit: 690 V conforming to IEC 60947-1, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified

Rated Impulse Withstand Voltage : 6 kV conforming to IEC 60947

Associated Fuse Rating : 10 A gG for signalling circuit conforming to IEC 60947-5-1, 63 A gG at <= 690 V coordination type 1 for power circuit, 40 A gG at <= 690 V coordination type 2 for power circuit

Auxiliary Contact Composition : 1 NO + 1 NC

Auxiliary Contacts Type : Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1

Average Impedance : 2 mOhm - Ith 40 A 50 Hz for power circuit

Climatic Withstand : Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Coil Technology : Without built-in suppressor module

Compatibility Code : LC1D

Connections - Terminals : control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: solid without cable end

Contact Compatibility : M6

Contactor Application : Motor Control, Resistive Load

Control Circuit Type : AC at 50/60 Hz standard

Control Circuit Voltage Limits : 0.3...0.6 Uc (-40-60 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz

Depth : 99 mm

Electrical Durability : 1.4 Mcycles 40 A AC-1 at Ue <= 440 V

Fire Resistance : 850 °C Conforming to IEC 60695-2-1

Flame Retardance : V1 conforming to UL 94

Heat Dissipation : 2-3 W at 50/60 Hz

Height : 91 mm

Hold-in Power Consumption in VA : 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C), 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)

Inrush Power in VA : 70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)

Insulation Resistance : > 10 MOhm for Signalling Circuit

IP Degree Of Protection : IP20 Front Face Conforming to IEC 60529

Irms Rated Making Capacity : 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 450 A at 440 V for power circuit conforming to IEC 60947

Maximum Operating Rate : 3600 cyc/h 60 °C

Mechanical Durability : 15 Mcycles

Mechanical Robustness : vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 4 Gn, 5...300 Hz, shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms

Minimum Switching Current : 5 mA for signalling circuit

Minimum Switching Voltage : 17 V for signalling circuit

Mounting Support : Rail, Plate

Non-overlap Time : 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact

Operating Altitude : 0...3000 m

Operating Time : 4...19 ms opening, 12...22 ms closing

Overvoltage Category : III

Permissible Ambient Air Temperature Around The Device : -40-60 °C, 60-70 °C with derating

Pole Contact Composition : 2 NO + 2 NC

Poles Description : 4P

Pollution Degree : 3

Power Dissipation Per Pole : 3.2 W AC-1

Certifications : UL, CSA, CCC, EAC, UKCA, CB, EU-RO-MR by DNV-GL

Protective Cover : With

Protective Treatment : TH Conforming to IEC 60068-2-30

Range : TeSys, TeSys Deca

Rated Breaking Capacity : 450 A at 440 V for power circuit conforming to IEC 60947

Rated Operational Voltage Limits : Power Circuit: <= 690 V AC 25...400 Hz

Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Signalling Circuit Frequency : 25...400 Hz

Standards : EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4

Tightening Torque : control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 1.8 N.m - on screw clamps terminals - with screwdriver flat Ø 6 mm, power circuit: 1.8 N.m - on screw clamps terminals - with screwdriver Philips No 2, power circuit: 1.8 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Utilisation Category : AC-3, AC-1, AC-3e

Width : 45 mm

Rated Short-time Withstand Current : 240 A 40 °C - 10 s for power circuit, 380 A 40 °C - 1 s for power circuit, 50 A 40 °C - 10 min for power circuit, 120 A 40 °C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit

Weight : 0.425 kg
