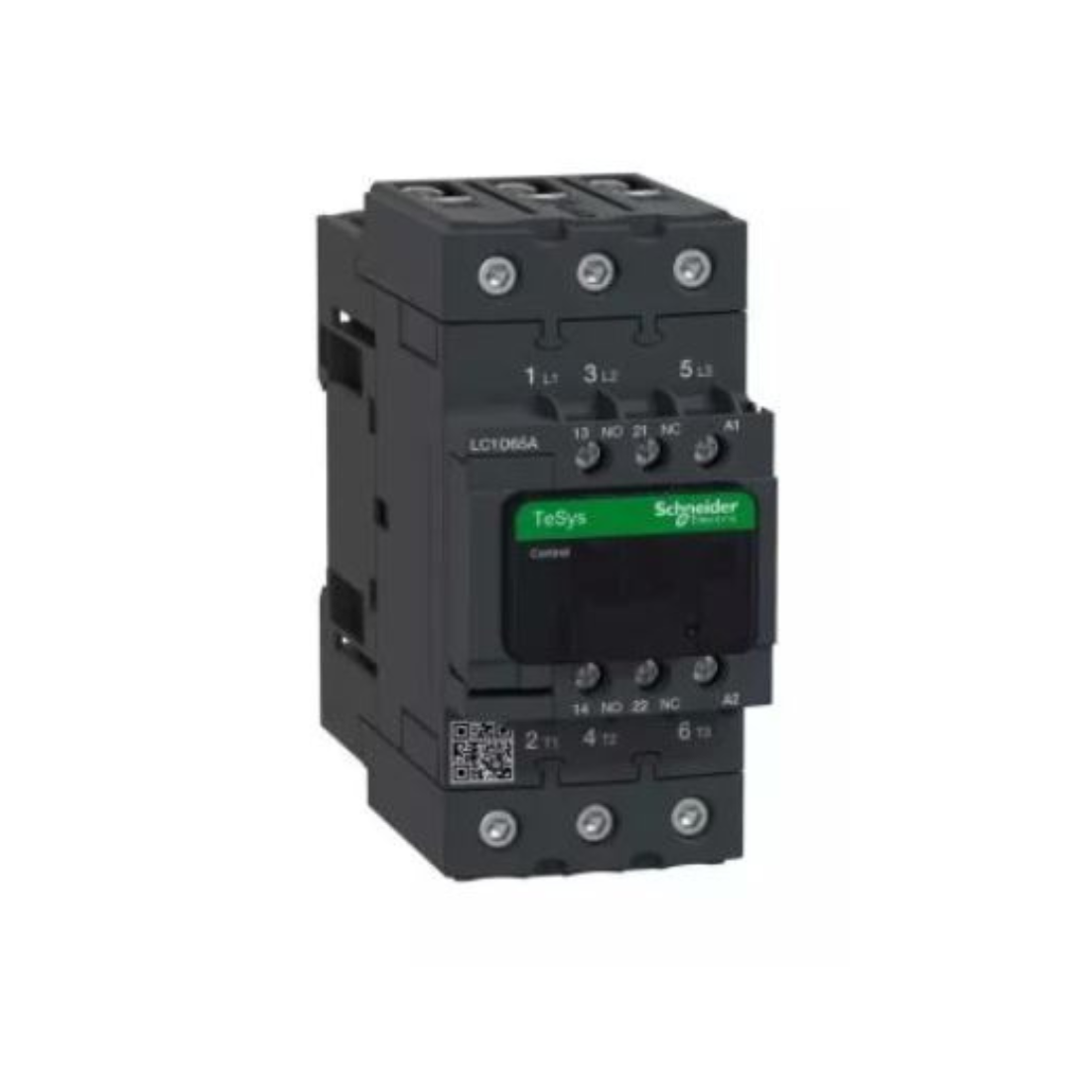

Schneider Electric TeSys D contactor 3P(3 NO) AC-3 <= 440V 65A 220V AC 50/60 Hz Coil LC1D65AM7
AED 291.00
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Contactor
Collections
Description
Schneider Electric LC1D65AM7 TeSys D Contactor is an electrical relay that is used to control a high-voltage circuit with a lower-voltage signal. It's typically used in applications like motor control. The contactor has three main power poles. AC-3 contactors are designed to be used for switching motor loads during normal operation.
<= 440V 65A is designed to handle voltages up to 440 volts and a current of up to 65 amperes. This would be suitable for a range of applications. 220V AC 50/60Hz Coil specifies the coil voltage and frequency. The contactor is activated by applying 220 volts of alternating current (AC) at either 50 or 60 hertz.
In summary, Schneider Electric LC1D65AM7 TeSys D Contactor is designed to handle three-phase AC loads up to 440 volts at a current of up to 65 amperes. It's activated by applying 220 volts AC at either 50 or 60 hertz to the coil.
Features
- 65A TP AC3 Contactor AC3 220V AC Coil
- Control a high-voltage circuit with a lower-voltage signal
- 3-pole contactor for connection by screw clamp terminals
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1D65AM7 |
| Package1 Length*Width*Height | 15.3 cm x 13.5 cm x 6.3 cm |
| Country of Manufacturing | Indonesia |
| Rated Operational Ccurrent | 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) for signalling circuit, 80 A (at 60 °C) for power circuit |
| Control Circuit Voltage | 220 V AC 50/60 Hz |
| Rated Operational Voltage | Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC |
| Rated Insulation Voltage | Power Circuit: 600 V CSA certified, power circuit: 600 V UL certified, signalling circuit: 690 V conforming to IEC 60947-1, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified, power circuit: 690 V conforming to IEC 60947-4-1 |
| Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| Ambient Air Temperature For Operation | -40-60 °C, 60-70 °C with derating |
| Ambient Air Temperature For Storage | -60-80 °C |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 125 A gG at <= 690 V coordination type 1 for power circuit, 125 A gG at <= 690 V coordination type 2 for power circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Average Impedance | 1.5 mOhm - Ith 80 A 50 Hz for power circuit |
| Climatic Withstand | Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Coil Technology | Without built-in suppressor module |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end |
| Contact Compatibility | M2 |
| Contactor Application | Motor Control, Resistive Load |
| Contactor Coil Voltage | 220 V AC standard |
| Control Circuit Type | AC at 50/60 Hz |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz |
| Depth | 120 mm |
| Electrical Durability | 1.4 Mcycles 80 A AC-1 at Ue <= 440 V, 1.45 Mcycles 65 A AC-3 at Ue <= 440 V, 1.45 Mcycles 65 A AC-3e at Ue <= 440 V |
| Fire Resistance | 850 °C Conforming to IEC 60695-2-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Heat Dissipation | 4-5 W at 50/60 Hz |
| Height | 122 mm |
| Hold-in Power Consumption in VA | 13-13 VA 60 Hz cos phi 0.3 (at 20 °C), 15-15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Inrush Power in VA | 140-140 VA 60 Hz cos phi 0.75 (at 20 °C), 160-160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 550 A at 440 V for power circuit conforming to IEC 60947 |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Mechanical Durability | 6 Mcycles |
| Mechanical Robustness | Vibrations Contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 4 Gn, 5...300 Hz, shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms |
| Minimum Switching Current | 5 mA for signalling circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Motor Power hp | 40 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 5 hp at 115 V AC 50/60 Hz for 1 phase motors, 10 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 20 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 20 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 50 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Motor Power kW | 11 kW at 400 V AC 50/60 Hz (AC-4), 18.5 kW at 220...230 V AC 50/60 Hz (AC-3), 30 kW at 380...400 V AC 50/60 Hz (AC-3), 37 kW at 500 V AC 50/60 Hz (AC-3), 37 kW at 660...690 V AC 50/60 Hz (AC-3), 18.5 kW at 220...230 V AC 50/60 Hz (AC-3e), 30 kW at 380...400 V AC 50/60 Hz (AC-3e), 37 kW at 500 V AC 50/60 Hz (AC-3e), 37 kW at 660...690 V AC 50/60 Hz (AC-3e) |
| Mounting Support | Rail, Plate |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Operating Altitude | 0...3000 m |
| Operating Time | 4...19 ms opening, 12...26 ms closing |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C, 60-70 °C with derating |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 9.6 W AC-1, 6.3 W AC-3, 6.3 W AC-3e |
| Certifications | GOST, UL, CSA, CCC |
| Protective Cover | With |
| Protective Treatment | TH Conforming to IEC 60068-2-30 |
| Range | TeSys, TeSys Deca |
| Rated Breaking Capacity | 1000 A at 440 V for power circuit conforming to IEC 60947 |
| Rated Operational Voltage Limits | Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1 |
| Tightening Torque | Control Circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2, power circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2 |
| Utilisation Category | AC-4, AC-1, AC-3, AC-3e |
| Width | 55 mm |
| Rated Short-time Withstand Current | 520 A 40 °C - 10 s for power circuit, 900 A 40 °C - 1 s for power circuit, 110 A 40 °C - 10 min for power circuit, 260 A 40 °C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Weight | 923.0 g |
