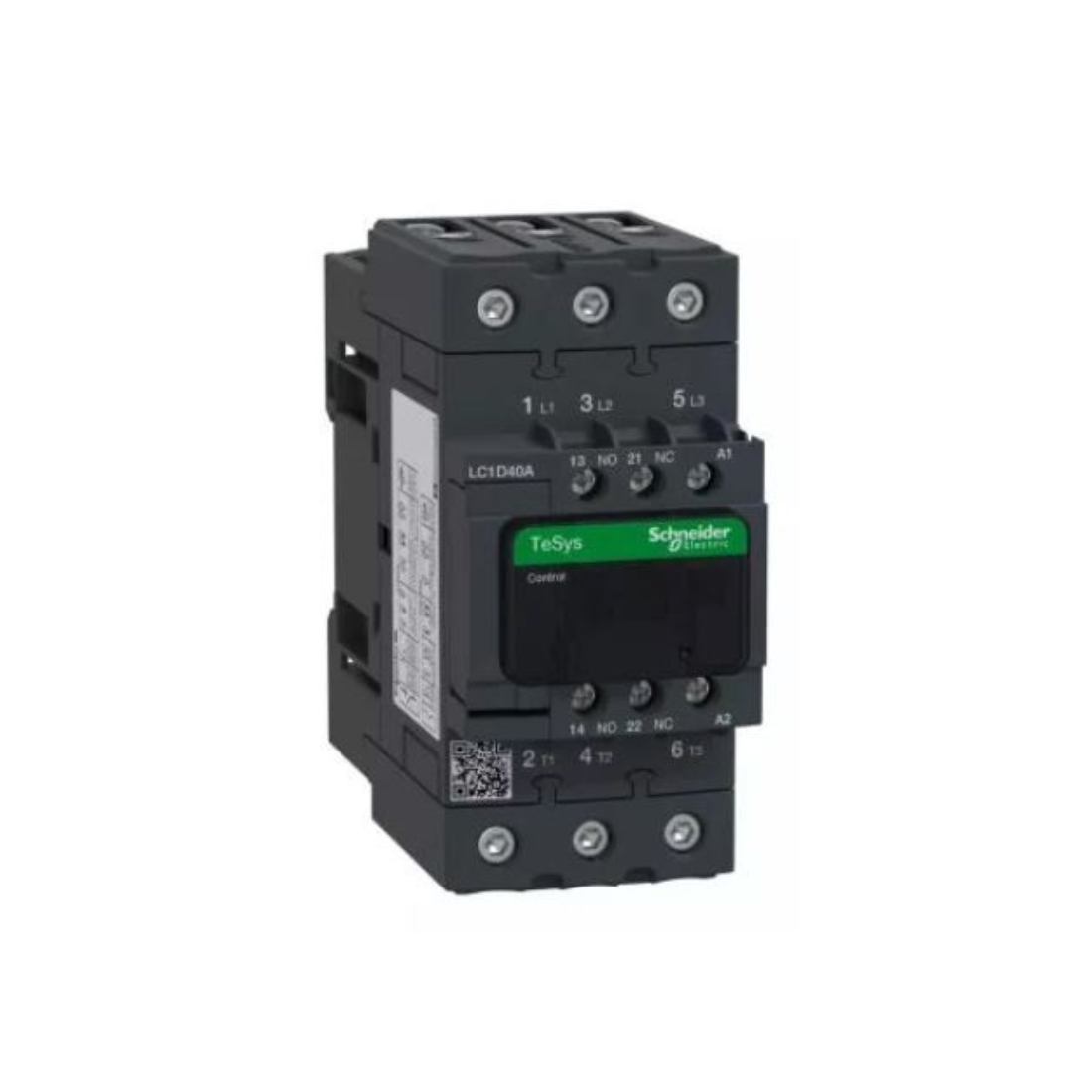

Schneider Electric TeSys D contactor 3P(3 NO) AC-3 <= 440V 40A 24V AC 50/60Hz Coil LC1D40AB7
AED 195.00
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Contactor
Collections
Description
Schneider Electric LC1D40AB7 TeSys D Contactor is an electrically-controlled switch used for switching an electrical circuit on and off. It is typically used in applications where frequent switching is required, such as controlling motors or other high-power loads. The contactor is a three-pole device. This means it has three sets of contacts that can be used to control three separate circuits. AC-3 is specifically for switching motor loads.
The contactor is rated for a maximum voltage of 440 volts and a maximum current of 40 amperes. This indicates the upper limits of what the contactor can safely handle. 24V AC 50/60 Hz Coil specifies the coil voltage and frequency required to energize the contactor. In this case, the contactor is designed to be operated with a 24-volt alternating current (AC) power supply, which can operate at either 50 or 60 hertz (Hz).
In summary, Schneider Electric LC1D40AB7 TeSys D Contactor is designed to handle up to 440 volts and 40 amperes of current in AC-3 applications. It operates with a 24V AC power supply at either 50 or 60 Hz.
Features
- 40A TP AC3 Contactor AC3 24V AC Coil
- Control the flow of electric current in a circuit
- 3-pole contactor for connection by screw clamp terminals
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1D40AB7 |
| Package1 Length*Width*Height | 15.5 cm x 13.5 cm x 6.2 cm |
| Country of Manufacturing | Indonesia |
| Rated Operational Ccurrent | 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) for signalling circuit, 60 A (at 60 °C) for power circuit |
| Control Circuit Voltage | 24 V AC 50/60 Hz |
| Rated Operational Voltage | Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC |
| Rated Insulation Voltage | Power Circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V CSA certified, power circuit: 600 V UL certified, signalling circuit: 690 V conforming to IEC 60947-1, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified |
| Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| Ambient Air Temperature For Operation | -40-60 °C, 60-70 °C with derating |
| Ambient Air Temperature For Storage | -60-80 °C |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 80 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Average Impedance | 1.5 mOhm - Ith 60 A 50 Hz for power circuit |
| Climatic Withstand | Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Coil Technology | Without built-in suppressor module |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: solid without cable end |
| Contact Compatibility | M2 |
| Contactor Application | Motor Control, Resistive Load |
| Contactor Coil Voltage | 24 V AC standard |
| Control Circuit | Type AC at 50/60 Hz |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz |
| Depth | 120 mm |
| Electrical Durability | 1.4 Mcycles 60 A AC-1 at Ue <= 440 V, 1.5 Mcycles 40 A AC-3 at Ue <= 440 V, 1.5 Mcycles 40 A AC-3e at Ue <= 440 V |
| Fire Resistance | 850 °C Conforming to IEC 60695-2-1 |
| Flame Retardance | V1 Conforming to UL 94 |
| Heat Dissipation | 4-5 W at 50/60 Hz |
| Height | 122mm |
| Hold-in Power Consumption in VA | 13-13 VA 60 Hz cos phi 0.3 (at 20 °C), 15-15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Inrush Power in VA | 140-140 VA 60 Hz cos phi 0.75 (at 20 °C), 160-160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 800 A at 440 V for power circuit conforming to IEC 60947 |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Mechanical Durability | 6 Mcycles |
| Mechanical Robustness | vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 4 Gn, 5...300 Hz, shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms |
| Minimum Switching Current | 5 mA for signalling circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Motor Power hp | 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 30 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 3 hp at 115 V AC 50/60 Hz for 1 phase motors, 30 hp at 460/480 V AC 50/60 Hz for 3 phases motors |
| Motor Power kW | 18.5 kW at 380...400 V AC 50/60 Hz (AC-3), 11 kW at 220...230 V AC 50/60 Hz (AC-3), 22 kW at 415...440 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3), 30 kW at 660...690 V AC 50/60 Hz (AC-3), 9 kW at 400 V AC 50/60 Hz (AC-4), 18.5 kW at 380...400 V AC 50/60 Hz (AC-3e), 11 kW at 220...230 V AC 50/60 Hz (AC-3e), 22 kW at 415...440 V AC 50/60 Hz (AC-3e), 22 kW at 500 V AC 50/60 Hz (AC-3e), 30 kW at 660...690 V AC 50/60 Hz (AC-3e) |
| Motor Starter Type | Direct on-line contactor |
| Mounting Support | Rail, plate |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Operating Altitude | 0...3000 m |
| Operating Time | 4...19 ms opening, 12...26 ms closing |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C, 60-70 °C with derating |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 2.4 W AC-3, 5.4 W AC-1, 2.4 W AC-3e |
| Power Range | 7-11 kW at 200-240 V 3 phases, 15-25 kW at 380-440 V 3 phases, 15-25 kW at 480-500 V 3 phase |
| Certifications | UL, GOST, CSA, CCC |
| Protective Cover | With |
| Protective Treatment | TH Conforming to IEC 60068-2-30 |
| Range | TeSys, TeSys Deca |
| Rated Breaking Capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| Rated Operational Voltage Limits | Power Circuit : <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1 |
| Tightening Torque | control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation Category | AC-3, AC-1, AC-4, AC-3e |
| Width | 55 mm |
| Rated Short-time Withstand Current | 320 A 40 °C - 10 s for power circuit, 720 A 40 °C - 1 s for power circuit, 72 A 40 °C - 10 min for power circuit, 165 A 40 °C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Weight | 917.0 g |
