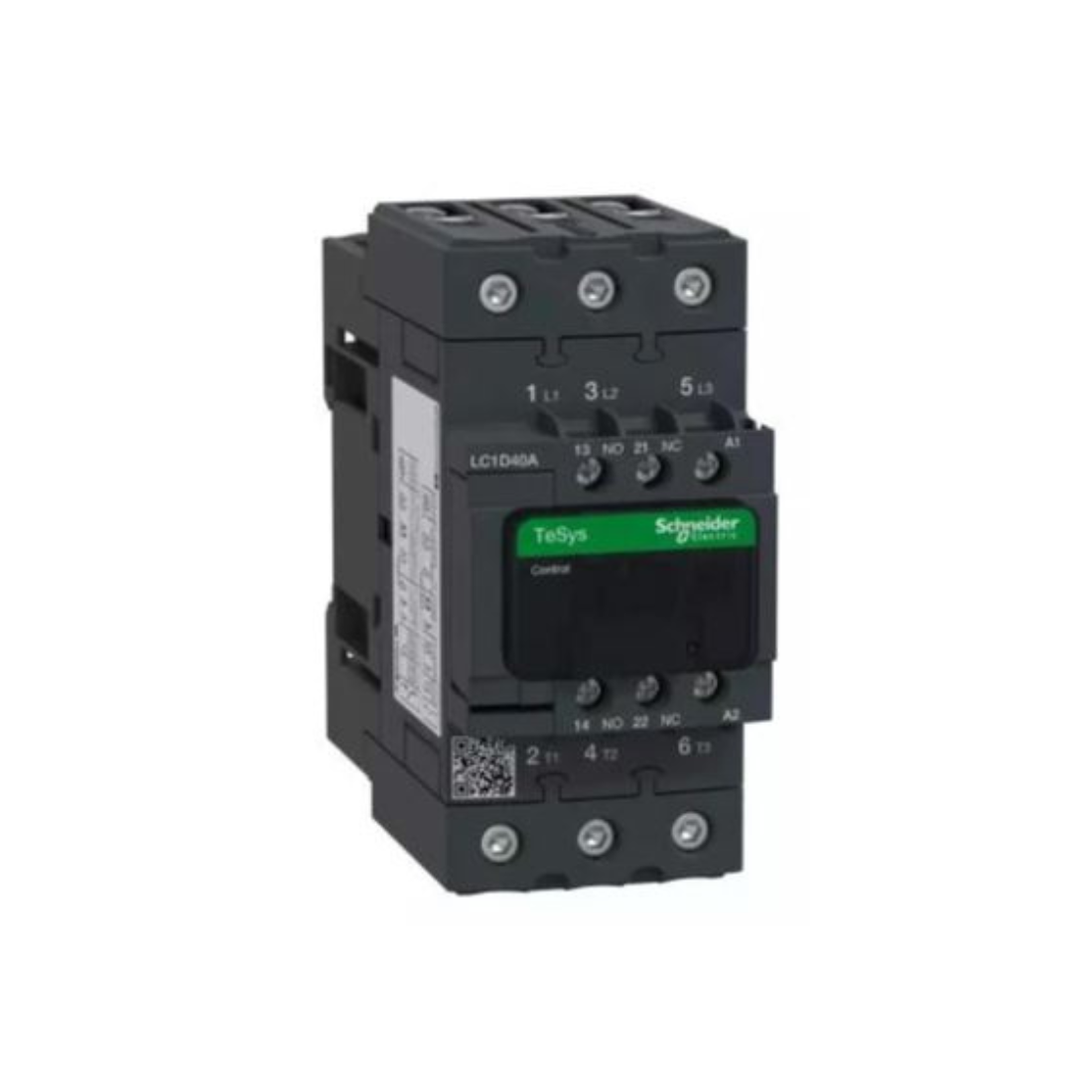

Schneider Electric TeSys D contactor 3P(3 NO) AC-3 <= 440V 40A 230V AC 50/60 Hz Coil LC1D40AP7
AED 199.00
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Contactor
Collections
Description
Schneider Electric LC1D40AP7 TeSys D Contactor is an electrical device used to control the flow of electricity in a circuit. It is similar to a relay but designed to handle higher current levels. It means that this contactor is designed to control a three-phase circuit. In a three-phase system, there are three conductors carrying alternating current of the same frequency and voltage amplitude, but with a phase difference of 120 degrees.
AC-3 is specifically for motor loads. It covers the starting, plugging, and reversing of squirrel-cage motors. <= 440V 40A is the maximum voltage and current the contactor is rated for. It can handle voltages up to 440 volts and a current of up to 40 amperes. 230V AC 50/60Hz Coil is the coil voltage and frequency. The contactor is activated by an electromagnetic coil. In this case, the coil is rated for 230 volts AC and can operate at either 50 or 60 Hertz.
So, in summary, Schneider Electric LC1D40AP7 TeSys D Contactor is designed to handle three-phase AC motor loads with a maximum voltage of 440V and a current of up to 40A. It has a 230V AC coil that can operate at either 50Hz or 60Hz. This type of contactor would typically be used in industrial applications where controlling motors are required.
Features
- 40A TP AC3 Contactor AC3 230V AC Coil
- Control the flow of electric current in a circuit
- 3-pole contactor for connection by screw clamp terminals
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1D40AP7 |
| Package1 Length*Width*Height | 15.4 cm x 13.8 cm x 6.3 cm |
| Country of Manufacturing | Indonesia |
| Rated Operational Ccurrent | 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) for signalling circuit, 60 A (at 60 °C) for power circuit |
| Control Circuit Voltage | 230 V AC 50/60 Hz |
| Rated Operational Voltage | Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC |
| Rated Insulation Voltage | Power Circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V CSA certified, power circuit: 600 V UL certified, signalling circuit: 690 V conforming to IEC 60947-1, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified |
| Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| Ambient Air Temperature For Operation | -40-60 °C, 60-70 °C with derating |
| Ambient Air Temperature For Storage | -60-80 °C |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 80 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Average Impedance | 1.5 mOhm - Ith 60 A 50 Hz for power circuit |
| Climatic Withstand | Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Coil Technology | Without built-in suppressor module |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end, power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end, power circuit: screw connection 2 1-25 mm² - cable stiffness: solid without cable end |
| Contact Compatibility | M2 |
| Contactor Application | Motor Control, Resistive Load |
| Control Circuit Type | AC at 50/60 Hz standard |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz |
| Depth | 120 mm |
| Electrical Durability | 1.4 Mcycles 60 A AC-1 at Ue <= 440 V, 1.5 Mcycles 40 A AC-3 at Ue <= 440 V, 1.5 Mcycles 40 A AC-3e at Ue <= 440 V |
| Fire Resistance | 850 °C Conforming to IEC 60695-2-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Heat Dissipation | 4-5 W at 50/60 Hz |
| Height | 122 mm |
| Hold-in Power Consumption in VA | 13-13 VA 60 Hz cos phi 0.3 (at 20 °C), 15-15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Inrush Power in VA | 140-140 VA 60 Hz cos phi 0.75 (at 20 °C), 160-160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 800 A at 440 V for power circuit conforming to IEC 60947 |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Mechanical Durability | 6 Mcycles |
| Mechanical Robustness | vibrations contactor open: 2 Gn, 5...300 Hz, vibrations contactor closed: 4 Gn, 5...300 Hz, shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms |
| Minimum Switching Current | 5 mA for signalling circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Motor Power hp | 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 30 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 2 hp at 115 V AC 50/60 Hz for 1 phase motors, 7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 20 hp at 460/480 V AC 50/60 Hz for 3 phases motors |
| Motor Power kW | 18.5 kW at 380...400 V AC 50/60 Hz (AC-3), 11 kW at 220...230 V AC 50/60 Hz (AC-3), 22 kW at 415...440 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3), 30 kW at 660...690 V AC 50/60 Hz (AC-3), 9 kW at 400 V AC 50/60 Hz (AC-4), 18.5 kW at 380...400 V AC 50/60 Hz (AC-3e), 11 kW at 220...230 V AC 50/60 Hz (AC-3e), 22 kW at 415...440 V AC 50/60 Hz (AC-3e), 22 kW at 500 V AC 50/60 Hz (AC-3e), 30 kW at 660...690 V AC 50/60 Hz (AC-3e) |
| Motor Starter Type | Direct on-line contactor |
| Mounting Support | Rail, Plate |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Operating Altitude | 0...3000 m |
| Operating Time | 4...19 ms opening, 12...22 ms closing |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C, 60-70 °C with derating |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 2.4 W AC-3, 5.4 W AC-1, 2.4 W AC-3e |
| Power Range | 7-11 kW at 200-240 V 3 phases, 15-25 kW at 380-440 V 3 phases, 15-25 kW at 480-500 V 3 phases |
| Certifications | CCC, CSA, GOST, UL |
| Protective Cover | With |
| Protective Treatment | TH Conforming to IEC 60068-2-30 |
| Range | TeSys, TeSys Deca |
| Rated Breaking Capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| Rated Operational Voltage Limits | Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1 |
| Tightening Torque | control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation Category | AC-3, AC-1, AC-3e |
| Width | 55 mm |
| Rated Short-time Withstand Current | 320 A 40 °C - 10 s for power circuit, 720 A 40 °C - 1 s for power circuit, 72 A 40 °C - 10 min for power circuit, 165 A 40 °C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Weight | 920.0 g |
