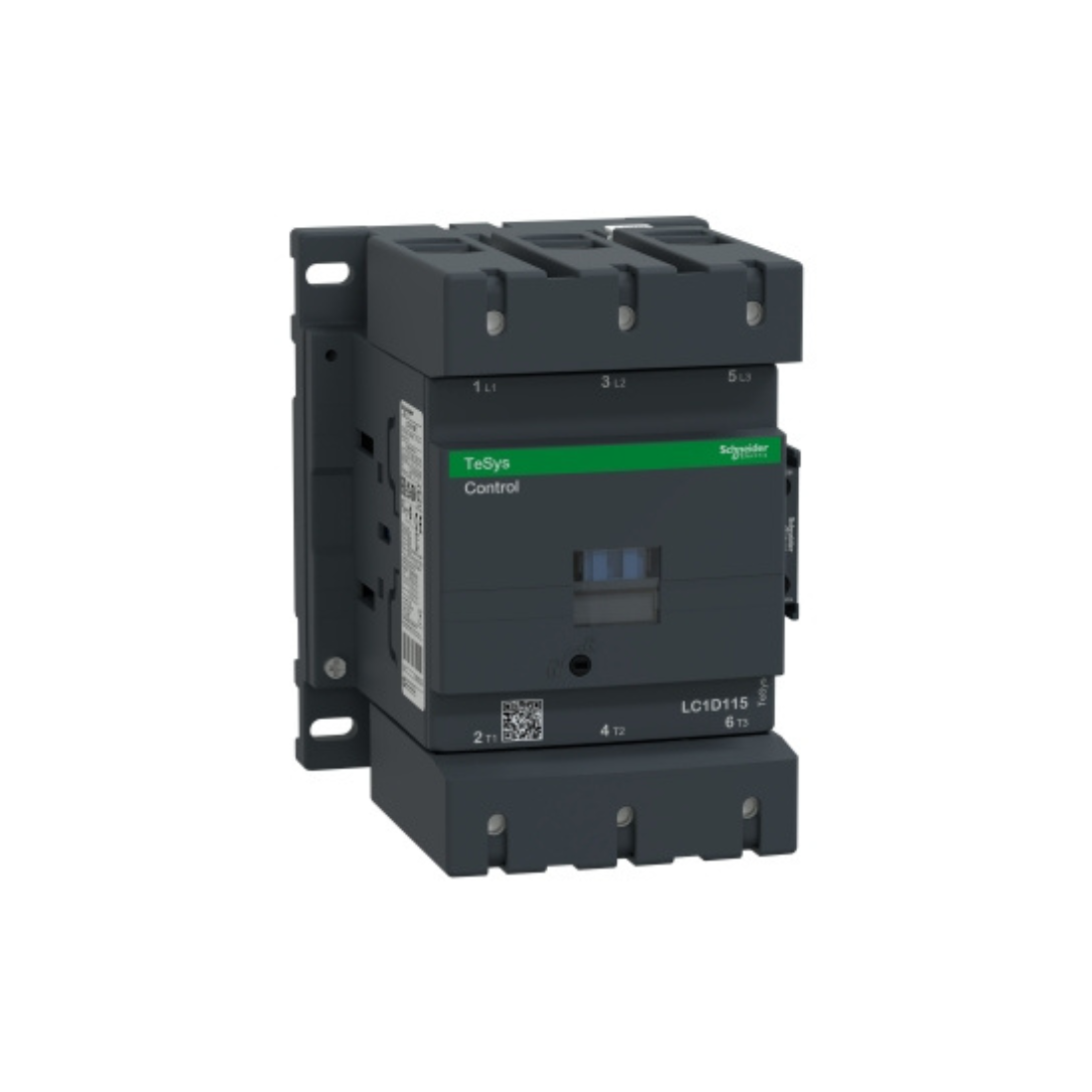

Schneider Electric TeSys D Contactor 3P(3 NO) AC-3 <= 440V 115A 415V AC 50/60Hz Coil LC1D115N7
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Contactor
Description
Schneider Electric LC1D115N7 TeSys D Contactor is a three-phase contactor, which means it can control a three-phase load. AC-3 is a rating that indicates the type of load the contactor can handle. AC-3's job is to close and break electrical circuits, including starting squirrel cage motors and switching them to the operating position.
<= 440 V is the maximum voltage the contactor can handle. 115 A is the maximum current for which the contactor is designed. 415 VAC is the rated operating voltage of the contactor coil. This is the voltage required to activate the contactor. 50/60 Hz is the frequency range in which the contactor can operate. It can work with electrical systems that operate at 50 Hertz or 60 Hertz.
In summary, Schneider Electric LC1D115N7 TeSys D Contactor is designed for three-phase AC systems with a maximum voltage of 440 volts and a maximum current of 115 amps. The contactor coil operates on a 415-volt alternating current with a frequency range of 50 to 60 hertz.
Features
- 115A TP AC3 Contactor AC3 415V AC Coil
- Control the flow of electric current in a circuit
- 3-pole contactor for connection by screw clamp terminals
- PVC free
- Mercury-free
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1D115N7 |
| Rated Operational Ccurrent | 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Conventional Free Air Thermal Current | 200 A (at 60 °C) for power circuit |
| Control Circuit Voltage | 415 V AC 50/60 Hz |
| Rated Operational Voltage Limits | Power Circuit: <= 1000 V AC 25...400 Hz, power circuit: <= 300 V DC |
| Rated Insulation Voltage | Power Circuit: 600 V CSA certified, power circuit: 600 V UL certified, power circuit: 1000 V conforming to IEC 60947-4-1, signalling circuit: 690 V conforming to IEC 60947-1, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified |
| Rated Impulse Withstand Voltage | 8 kV conforming to IEC 60947 |
| Associated Fuse Rating | 250 A gG at <= 690 V coordination type 1 for power circuit, 200 A gG at <= 690 V coordination type 2 for power circuit, 10 A gG for signalling circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Average Impedance | 0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| Climatic Withstand | Conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end, power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end, power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end |
| Contact Compatibility | M13 |
| Contactor Application | Motor Control, Resistive Load |
| Control Circuit Type | AC at 50/60 Hz |
| Control Circuit Voltage Limits | 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz, 1...1.15 Uc (55-70 °C):operational AC 50/60 Hz |
| Depth | 136mm |
| Electrical Durability | 0.8 Mcycles 200 A AC-1 at Ue <= 440 V, 0.95 Mcycles 115 A AC-3 at Ue <= 440 V, 0.95 Mcycles 115 A AC-3e at Ue <= 440 V |
| Fire Resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame Retardance | V1 Conforming to UL 94 |
| Heat Dissipation | 3-8 W at 50/60 Hz |
| Height | 158 mm |
| Hold-in Power Consumption in VA | 2-18 VA 60 Hz cos phi 0.3 (at 20 °C), 2-18 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Inrush Power in VA | 280-350 VA 60 Hz cos phi 0.8 (at 20 °C), 280-350 VA 50 Hz cos phi 0.8 (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Signalling Circuit |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Irms Rated Making Capacity | 1260 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Maximum Operating Rate | 2400 cyc/h 60 °C |
| Mechanical Durability | 8 Mcycles |
| Mechanical Robustness | vibrations contactor open (2 Gn, 5...300 Hz) , vibrations contactor closed (4 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (6 Gn for 11 ms) |
| Minimum Switching Current | 5 mA for signalling circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Motor Power hp | 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 40 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 75 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 100 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Motor Power kW | 30 kW at 220...230 V AC 50/60 Hz (AC-3), 55 kW at 380...400 V AC 50/60 Hz (AC-3), 59 kW at 415...440 V AC 50/60 Hz (AC-3), 75 kW at 500 V AC 50/60 Hz (AC-3), 80 kW at 660...690 V AC 50/60 Hz (AC-3), 65 kW at 1000 V AC 50/60 Hz (AC-3), 18.5 kW at 400 V AC 50/60 Hz (AC-4), 30 kW at 220...230 V AC 50/60 Hz (AC-3e), 55 kW at 380...400 V AC 50/60 Hz (AC-3e), 59 kW at 415...440 V AC 50/60 Hz (AC-3e), 75 kW at 500 V AC 50/60 Hz (AC-3e), 80 kW at 660...690 V AC 50/60 Hz (AC-3e), 65 kW at 1000 V AC 50/60 Hz (AC-3e) |
| Mounting Support | Rail, Plate |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Operating Altitude | 0...3000 m |
| Operating Time | 6...20 ms opening, 20...50 ms closing |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C, 60-70 °C with derating |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 24 W AC-1, 7.9 W AC-3, 7.9 W AC-3e |
| Certifications | CCC, UL, RINA, BV, GOST, CSA, DNV, LROS (Lloyds register of shipping), GL, UKCA, CE |
| Protective Cover | With |
| Protective Treatment | TH conforming to IEC 60068-2-30 |
| Range | TeSys, TeSys Deca |
| Rated Breaking Capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 |
| Tightening Torque | control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Utilisation Category | AC-4, AC-3, AC-1, AC-3e |
| Width | 45 mm |
| Rated Short-time Withstand Current | 250 A 40 °C - 10 min for power circuit, 550 A 40 °C - 1 min for power circuit, 950 A 40 °C - 10 s for power circuit, 1100 A 40 °C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Weight | 2.5 kg |
