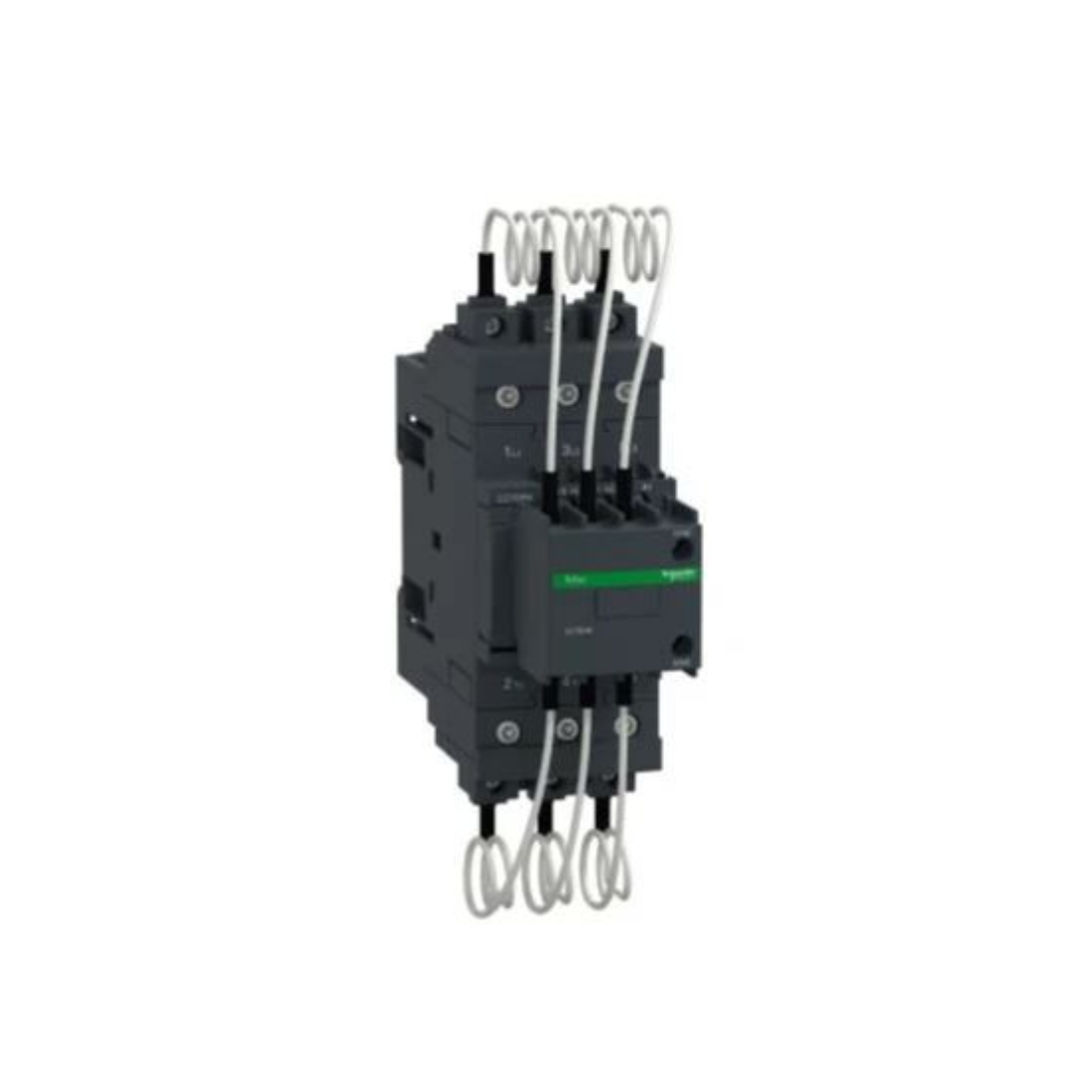

Schneider Electric TeSys D Capacitor Duty Contactor 30kVAR 400V 50Hz 220V AC 50/60Hz Coil LC1DPKM7
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Capacitor Duty Contactor
Description
Schneider Electric LC1DPKM7 TeSys D Capacitor Duty Contactor is a type of contactor designed for switching capacitors in electrical systems. It is designed for a capacitive load of 30 kilovolt-amperes of reactive power (kVAR). This indicates that it is capable of handling reactive power in an electrical system. 400 volts (V) is the maximum voltage at which it can be operated safely. It is designed for a frequency of 50 Hertz (Hz).
The contactor coil operates on 220 volts (V) alternating current. This is the voltage required to energize the coil and close the contacts. It is designed to work on 50Hz and 60Hz systems, which is a useful feature for its compatibility with various power systems.
Schneider Electric LC1DPKM7 TeSys D Capacitor Duty Contactor is suitable for applications requiring switching a 30 kVAR capacitor bank in a 400 V 50 Hz system and where the 220 VAC control circuit is operated with 50 Hz compatibility and 60 Hz.
Features
- Used to connect and disconnect capacitors in an electrical circuit
- Designed to operate at a voltage of 400 volts
- Designed for a capacitive load of 30 kilovolt-amperes of reactive power (kVAR).
| Brand | Schneider Electric |
| Item Name | Capacitor Duty Contactor |
| Model | LC1DPKM7 |
| Control Circuit Voltage | 220 V AC 50/60 Hz |
| Ambient Air Temperature For Storage | -60-80 °C |
| Auxiliary Contact Composition | 1 NO + 2 NC instantaneous |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with or without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with or without cable end |
| Contactor Application | Power factor correction |
| Control Circuit Type | AC at 50/60 Hz |
| Depth | 156 mm |
| Electrical Durability | 300000 cycles at Ue 400 V, 200000 cycles at Ue 690 V |
| Height | 166 mm |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Maximum Operating Rate | 240 cyc/h |
| Operating Altitude | 0...3000 m |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C, 60-70 °C with derating |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Certifications | IECEE CB Scheme, UL, CSA, UKCA |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | power circuit: 690 V AC 50/60 Hz |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC 60335-1 |
| Tightening Torque | control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm², power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35-35 mm² |
| Utilisation Category | AC-6b |
| Width | 55 mm |
| Device Location in System | Line interruption, inside delta interruption |
| Reacted Power Rating | 17 kvar at 230-230 V AC 50 Hz 60 °C, 30 kvar at 400-400 V AC 50 Hz 60 °C, 32 kvar at 440-440 V AC 50 Hz 60 °C, 50 kvar at 690-690 V AC 50 Hz 60 °C, 16.5 kvar at 230-230 V AC 60 Hz 60 °C, 33.3 kvar at 460-460 V AC 60 Hz 60 °C, 40 kvar at 575-575 V AC 60 Hz 60 °C |
| Weight | 1.3 kg |
