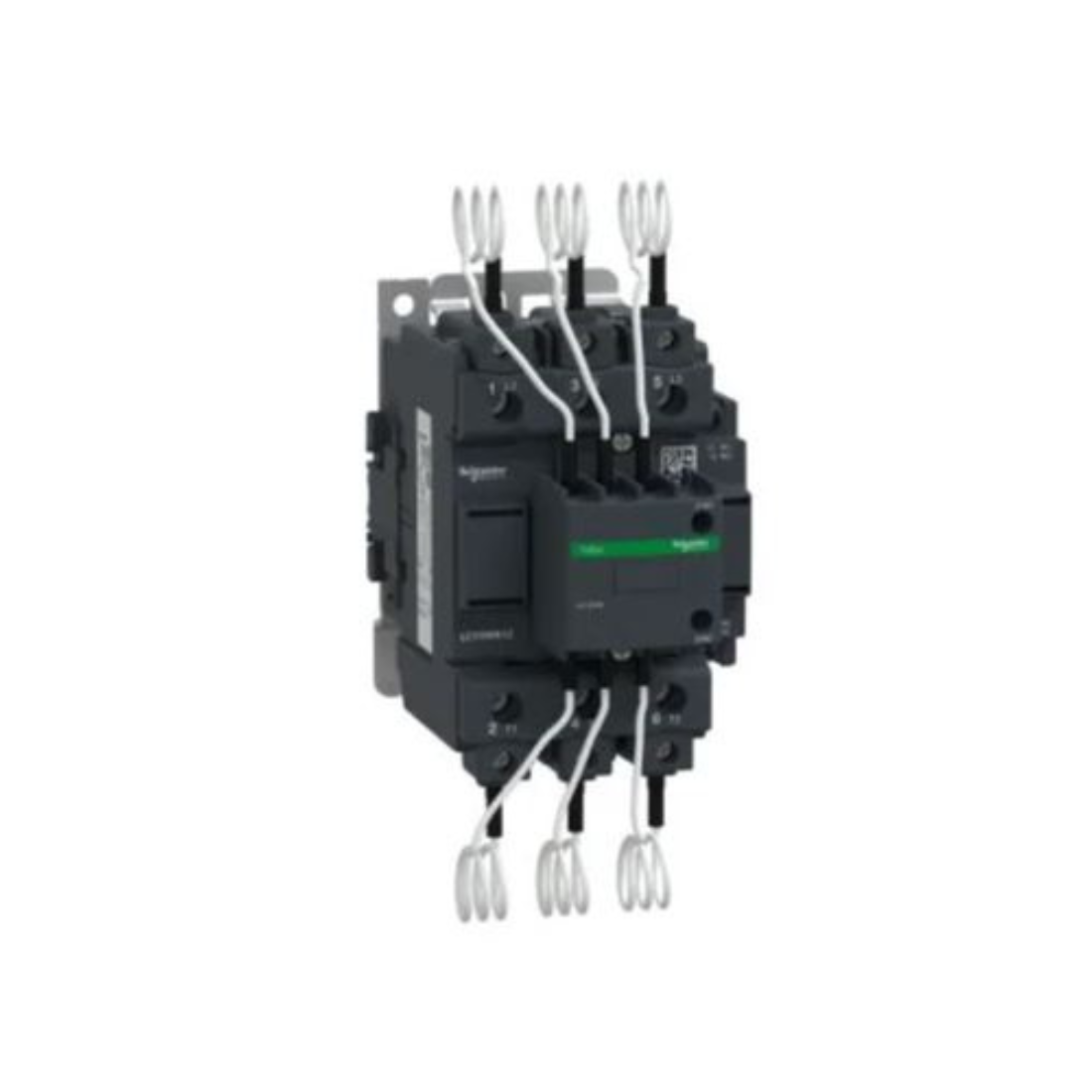

Schneider Electric TeSys D Capacitor Contactor 63kVAR at 400V/50Hz Coil 230V AC 50/60Hz LC1DWK12P7
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Capacitor Contactor
Description
Schneider Electric LC1DWK12P7 TeSys D Capacitor Contactor has been designed for perfect integration in control systems. They can be used to create motor starters for any type of application. Capacitors are used in electrical systems to improve power factor and overall system efficiency. The capacitor contactor is designed for a reactive power of 63 kilovolt amperes (kVAR).
400 V is the nominal voltage at which the capacitor contactor should operate. 50 Hz is the nominal frequency at which the capacitor contactor should operate. 230 V AC is the voltage required to operate the contactor coil. 50/60 Hz is the frequency range in which the coil can operate.
In summary, Schneider Electric LC1DWK12P7 TeSys D Capacitor Contactor is designed for use in a system with a capacity of 63 kVAR at 400 volts and a frequency of 50 Hz. It has a coil voltage of 230 volts AC and can operate in electrical networks with frequencies of 50 or 60 Hz.
Features
- Control the connection and disconnection of capacitors in electrical circuits
- Designed to operate at a voltage of 400 volts
- Improve the power factor and reduce reactive power
| Brand | Schneider Electric |
| Item Name | Capacitor Contactor |
| Model | LC1DWK12P7 |
| Control Circuit Voltage | 230 V AC 50/60 Hz |
| Ambient Air Temperature For Storage | -60-80 °C |
| Auxiliary Contact Composition | 1 NO + 2 NC instantaneous |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid, power circuit: connector 2 4-25 mm² - cable stiffness: solid, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end |
| Contactor Application | Power factor correction |
| Control Circuit Type | AC at 50/60 Hz |
| Depth | 154 mm |
| Electrical Durability | 300000 cycles at Ue 400 V, 200000 cycles at Ue 690 V |
| Height | 180 mm |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Maximum Operating Rate | 240 cyc/h |
| Operating Altitude | 0...3000 m |
| Mounting Support | DIN rail, plate |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 10.2 W AC-1 |
| Certifications | IECEE CB Scheme, UL, CSA, UKCA |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | power circuit: 690 V AC 50/60 Hz |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1 |
| Tightening Torque | power circuit: 12 N.m - on connector, control circuit: 1.7 N.m - on screw clamp terminals |
| Reactive power rating | 35 kvar at 230-230 V AC 50 Hz 60 °C, 63 kvar at 400-400 V AC 50 Hz 60 °C, 67 kvar at 440-440 V AC 50 Hz 60 °C, 104 kvar at 690-690 V AC 50 Hz 60 °C, 30 kvar at 230-230 V AC 60 Hz 60 °C, 60 kvar at 460-460 V AC 60 Hz 60 °C, 80 kvar at 575-575 V AC 60 Hz 60 °C |
| Utilisation Category | AC-6b |
| Width | 85 mm |
| Device Location in System | Inside delta interruption, line interruption |
| Weight | 1.65 kg |
