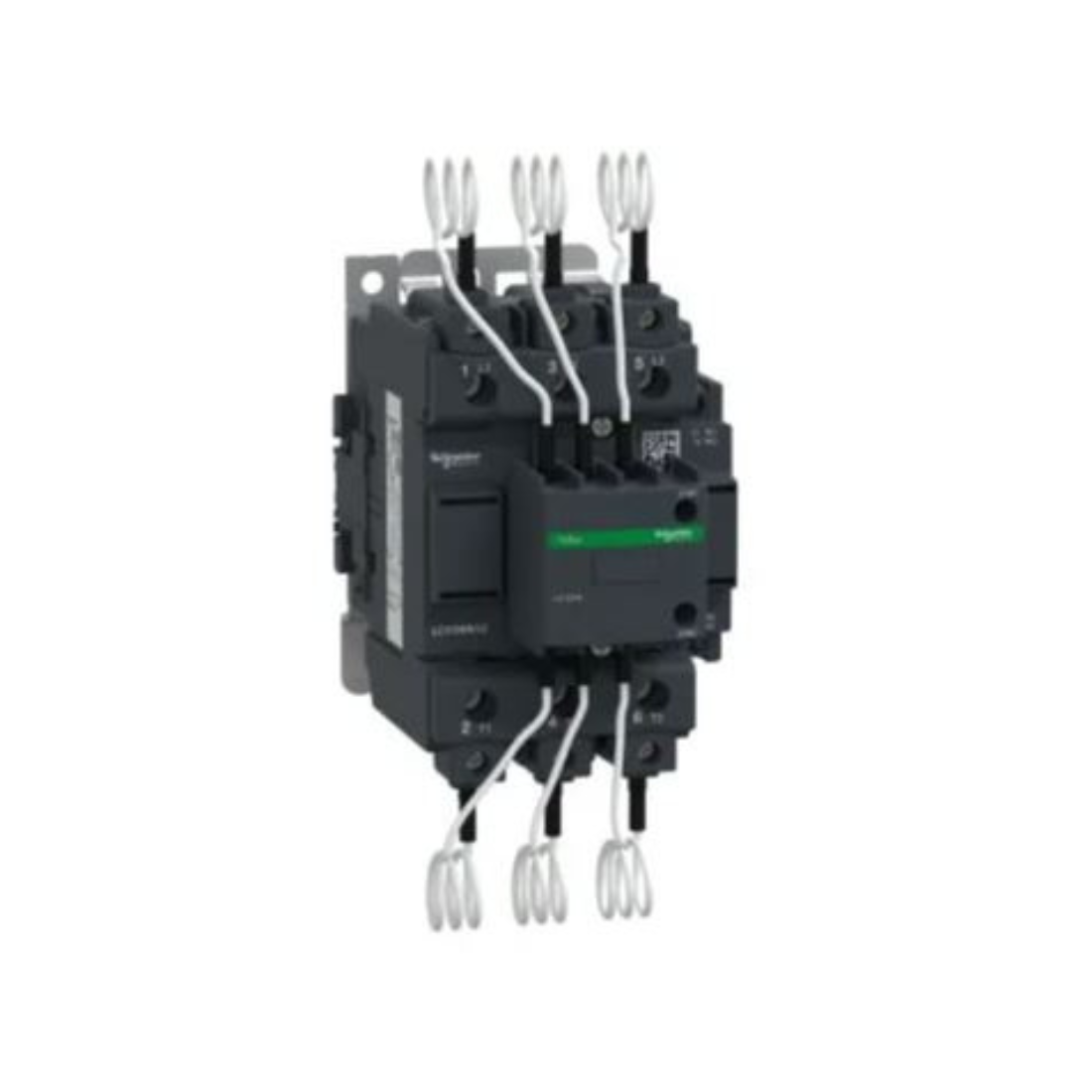

Schneider Electric TeSys D Capacitor Contactor 63 kVAR at 400V/50Hz 240V AC 50/60Hz Coil LC1DWK12U7
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Capacitor Contactor
Description
Schneider Electric LC1DWK12U7 TeSys D Capacitor Contactor is an electrical switching device used to connect and disconnect capacitors in a circuit. Capacitors are used in power systems to improve power factor and reduce reactive power.
It can handle a maximum of 63 kilovolt-amperes of reactive power (kVAR) at a voltage of 400 volts and a frequency of 50 hertz. 240V AC 50/60Hz coil is the voltage and frequency of the electromagnetic coil of the contactor. It is designed to operate on a voltage of 240 volts and can operate on a 50 Hz and 60 Hz power supply.
In practical terms, Schneider Electric LC1DWK12U7 TeSys D Capacitor Contactor is rated for a capacitive load of up to 63 kVAR at 400 volts and can be controlled with a 240 V AC power supply at 50 Hz or 60 Hz.
Features
- Control the connection and disconnection of capacitors in electrical circuits
- Designed to operate at a voltage of 400 volts
- Improve the power factor and reduce reactive power
| Brand | Schneider Electric |
| Item Name | Capacitor Contactor |
| Model | LC1DWK12U7 |
| Control Circuit Voltage | 240 V AC 50/60 Hz |
| Ambient Air Temperature For Storage | -60-80 °C |
| Auxiliary Contact Composition | 1 NO + 2 NC instantaneous |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid, power circuit: connector 2 4-25 mm² - cable stiffness: solid, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end |
| Contactor Application | Power factor correction |
| Control Circuit Type | AC at 50/60 Hz |
| Depth | 154 mm |
| Electrical Durability | 300000 cycles at Ue 400 V, 200000 cycles at Ue 690 V |
| Height | 180 mm |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Maximum Operating Rate | 240 cyc/h |
| Operating Altitude | 0...3000 m |
| Mounting Support | DIN rail, plate |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 10.2 W AC-1 |
| Certifications | IECEE CB Scheme, UL, CSA, UKCA |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | power circuit: 690 V AC 50/60 Hz |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1 |
| Tightening Torque | power circuit: 9 N.m - on connector, control circuit: 1.7 N.m - on screw clamp terminals |
| Reactive power rating | 35 kvar at 230-230 V AC 50 Hz 60 °C, 63 kvar at 400-400 V AC 50 Hz 60 °C, 67 kvar at 440-440 V AC 50 Hz 60 °C, 104 kvar at 690-690 V AC 50 Hz 60 °C, 30 kvar at 230-230 V AC 60 Hz 60 °C, 60 kvar at 460-460 V AC 60 Hz 60 °C, 80 kvar at 575-575 V AC 60 Hz 60 °C |
| Utilisation Category | AC-6b |
| Width | 45 mm |
| Device Location in System | Inside delta interruption, line interruption |
| Weight | 1.65 kg |
