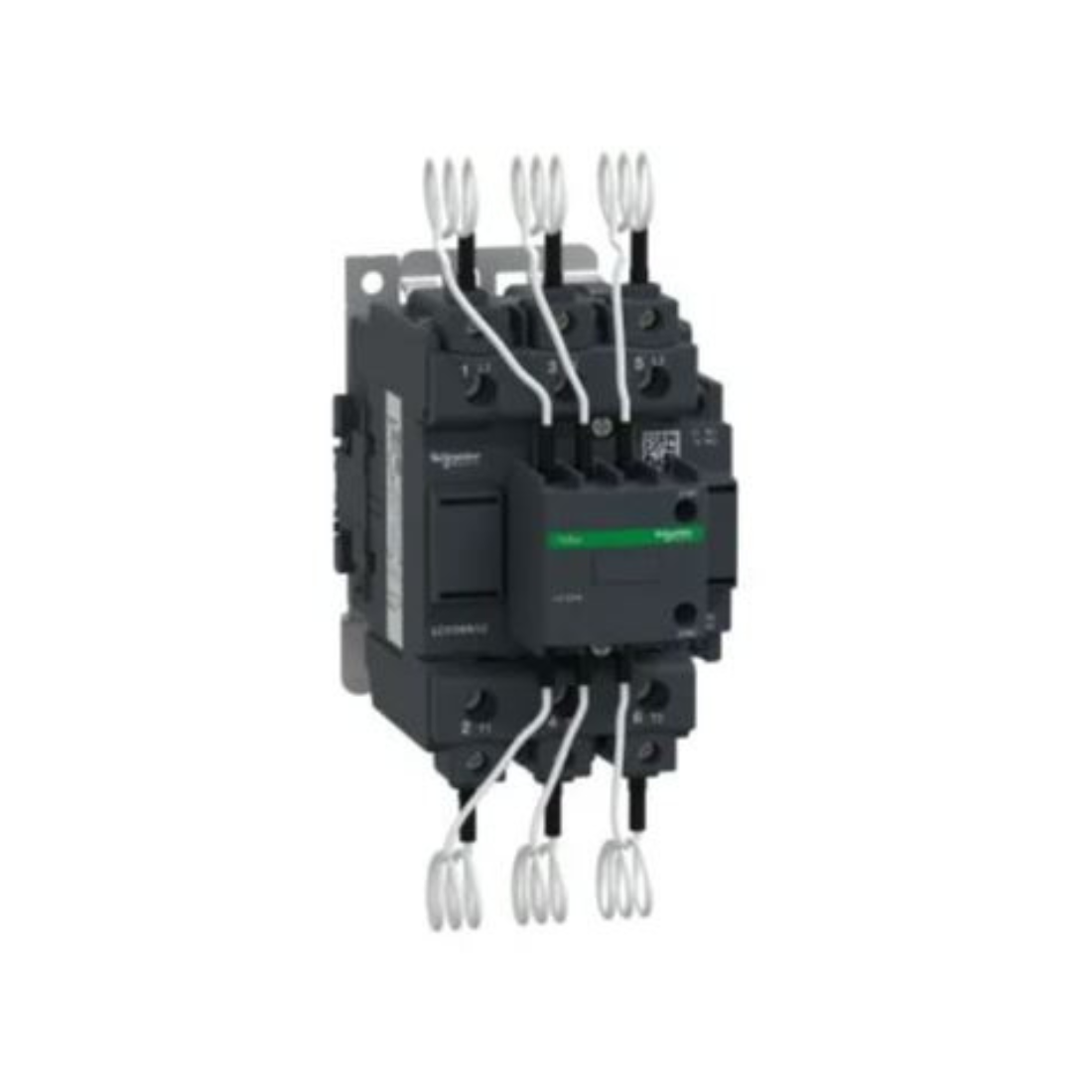

Schneider Electric TeSys D Capacitor Contactor 63 kVAR at 400V/50Hz 240V AC 50/60Hz Coil LC1DWK12U7
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Capacitor Contactor
Description
Schneider Electric LC1DWK12U7 TeSys D Capacitor Contactor is an electrical switching device used to connect and disconnect capacitors in a circuit. Capacitors are used in power systems to improve power factor and reduce reactive power.
It can handle a maximum of 63 kilovolt-amperes of reactive power (kVAR) at a voltage of 400 volts and a frequency of 50 hertz. 240V AC 50/60Hz coil is the voltage and frequency of the electromagnetic coil of the contactor. It is designed to operate on a voltage of 240 volts and can operate on a 50 Hz and 60 Hz power supply.
In practical terms, Schneider Electric LC1DWK12U7 TeSys D Capacitor Contactor is rated for a capacitive load of up to 63 kVAR at 400 volts and can be controlled with a 240 V AC power supply at 50 Hz or 60 Hz.
Features
- Control the connection and disconnection of capacitors in electrical circuits
- Designed to operate at a voltage of 400 volts
- Improve the power factor and reduce reactive power
| Brand | Schneider Electric |
| Item Name | Capacitor Contactor |
| Model | LC1DWK12U7 |
| Control Circuit Voltage | 240 V AC 50/60 Hz |
| Ambient Air Temperature For Storage | -60-80 °C |
| Auxiliary Contact Composition | 1 NO + 2 NC instantaneous |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid, power circuit: connector 2 4-25 mm² - cable stiffness: solid, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end |
| Contactor Application | Power factor correction |
| Control Circuit Type | AC at 50/60 Hz |
| Depth | 154 mm |
| Electrical Durability | 300000 cycles at Ue 400 V, 200000 cycles at Ue 690 V |
| Height | 180 mm |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Maximum Operating Rate | 240 cyc/h |
| Operating Altitude | 0...3000 m |
| Mounting Support | DIN rail, plate |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 10.2 W AC-1 |
| Certifications | IECEE CB Scheme, UL, CSA, UKCA |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | power circuit: 690 V AC 50/60 Hz |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1 |
| Tightening Torque | power circuit: 9 N.m - on connector, control circuit: 1.7 N.m - on screw clamp terminals |
| Reactive power rating | 35 kvar at 230-230 V AC 50 Hz 60 °C, 63 kvar at 400-400 V AC 50 Hz 60 °C, 67 kvar at 440-440 V AC 50 Hz 60 °C, 104 kvar at 690-690 V AC 50 Hz 60 °C, 30 kvar at 230-230 V AC 60 Hz 60 °C, 60 kvar at 460-460 V AC 60 Hz 60 °C, 80 kvar at 575-575 V AC 60 Hz 60 °C |
| Utilisation Category | AC-6b |
| Width | 45 mm |
| Device Location in System | Inside delta interruption, line interruption |
| Weight | 1.65 kg |
