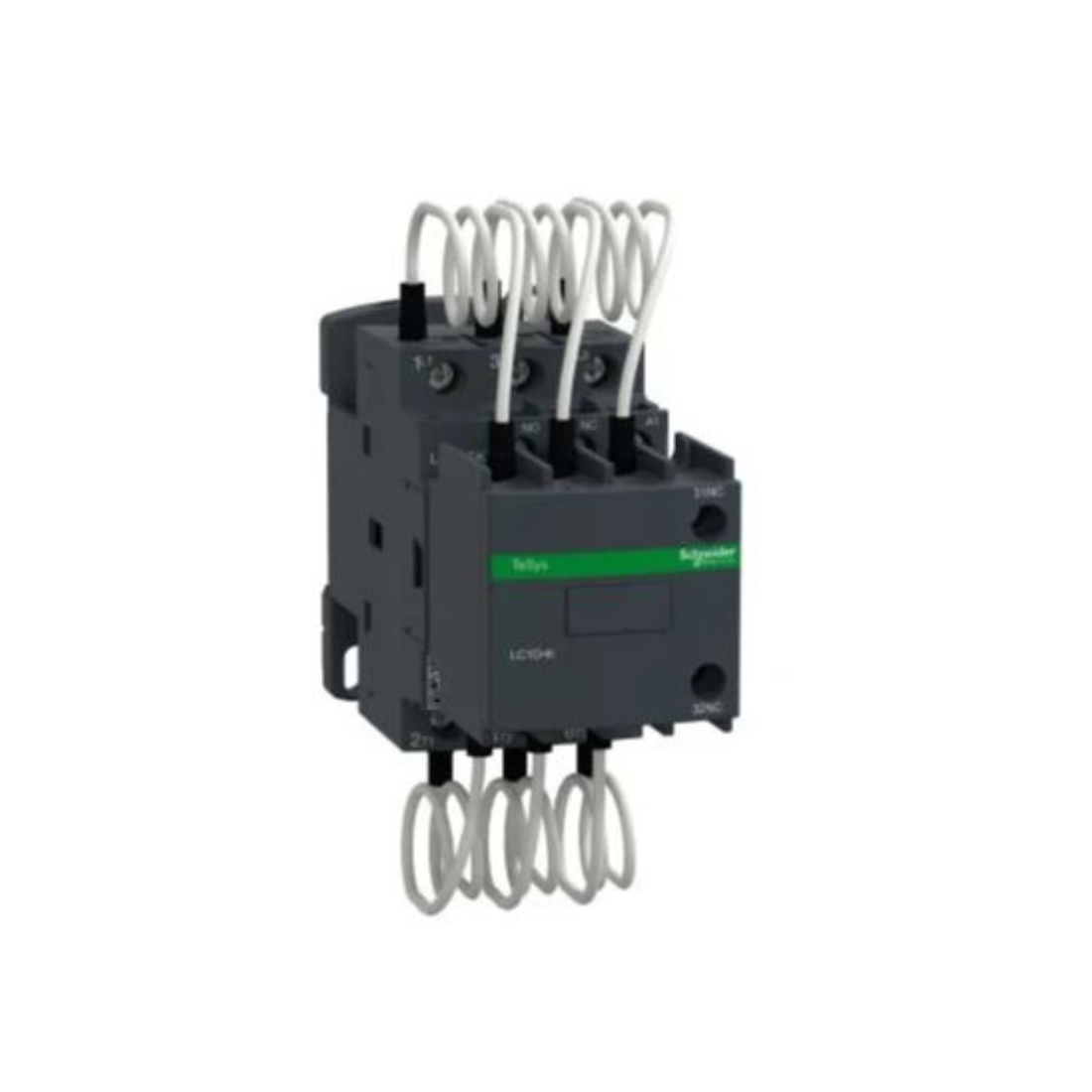

Schneider Electric TeSys D Capacitor Contactor 25kVAR at 400V/50Hz 230V AC 50/60Hz LC1DFKP7
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Capacitor Contactor
Description
Schneider Electric LC1DFKP7 TeSys D Capacitor Contactor is an electrical switching device specifically designed to control the connection and disconnection of capacitors in electrical circuits. They are used to improve performance factors in electrical systems. 25 kVAR at 400 V/50 Hz is the capacitor contactor rating. It is designed for a reactive power of 25 kVAR at a voltage of 400 volts and a frequency of 50 hertz. 230 V AC 50/60 Hz coil is the voltage and frequency of the coil used to control the contactor. It operates on 230-volt alternating current (AC) and can handle frequencies of 50 Hz and 60 Hz.
Overall, Schneider Electric LC1DFKP7 TeSys D Capacitor Contactor is designed to handle a 25 kVAR load at 400 volts and 50 Hz. It is controlled by a coil that operates on 230 volts AC, meaning it can be used in regions where the network frequency can vary between 50 Hz and 60 Hz.
Features
- Control the connection and disconnection of capacitors in electrical circuits
- Designed to operate at a voltage of 400 volts
- Improve performance factors in electrical systems
| Brand | Schneider Electric |
| Item Name | Capacitor Contactor |
| Model | LC1DFKP7 |
| Control Circuit Voltage | 230 V AC 50/60 Hz |
| Ambient Air Temperature For Storage | -60-80 °C |
| Auxiliary Contact Composition | 1 NO + 2 NC instantaneous |
| Auxiliary Contacts Type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Compatibility Code | LC1D |
| Connections - Terminals | control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid, power circuit: screw clamp terminals 2 1.5-4 mm² - cable stiffness: solid, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1.5-4 mm² - cable stiffness: flexible with cable end |
| Contactor Application | Power factor correction |
| Control Circuit Type | AC at 50/60 Hz |
| Depth | 121 mm |
| Electrical Durability | 300000 cycles at Ue 400 V, 200000 cycles at Ue 690 V |
| Height | 115 mm |
| IP Degree Of Protection | IP20 Front Face Conforming to IEC 60529 |
| Maximum Operating Rate | 240 cyc/h |
| Operating Altitude | 0...3000 m |
| Mounting Support | DIN rail, plate |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 10.2 W AC-1 |
| Certifications | IECEE CB Scheme, UKCA |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | power circuit: 690 V AC 50/60 Hz |
| Signalling Circuit Frequency | 25...400 Hz |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, IEC 60335-1 |
| Tightening Torque | control circuit: control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 1.7 N.m - on screw clamp terminals |
| Reactive power rating | 7 kvar at 230-230 V AC 50 Hz 60 °C, 12.5 kvar at 400-400 V AC 50 Hz 60 °C, 13 kvar at 440-440 V AC 50 Hz 60 °C, 21 kvar at 690-690 V AC 50 Hz 60 °C |
| Utilisation Category | AC-6b |
| Width | 45 mm |
| Weight | 0.53 kg |
