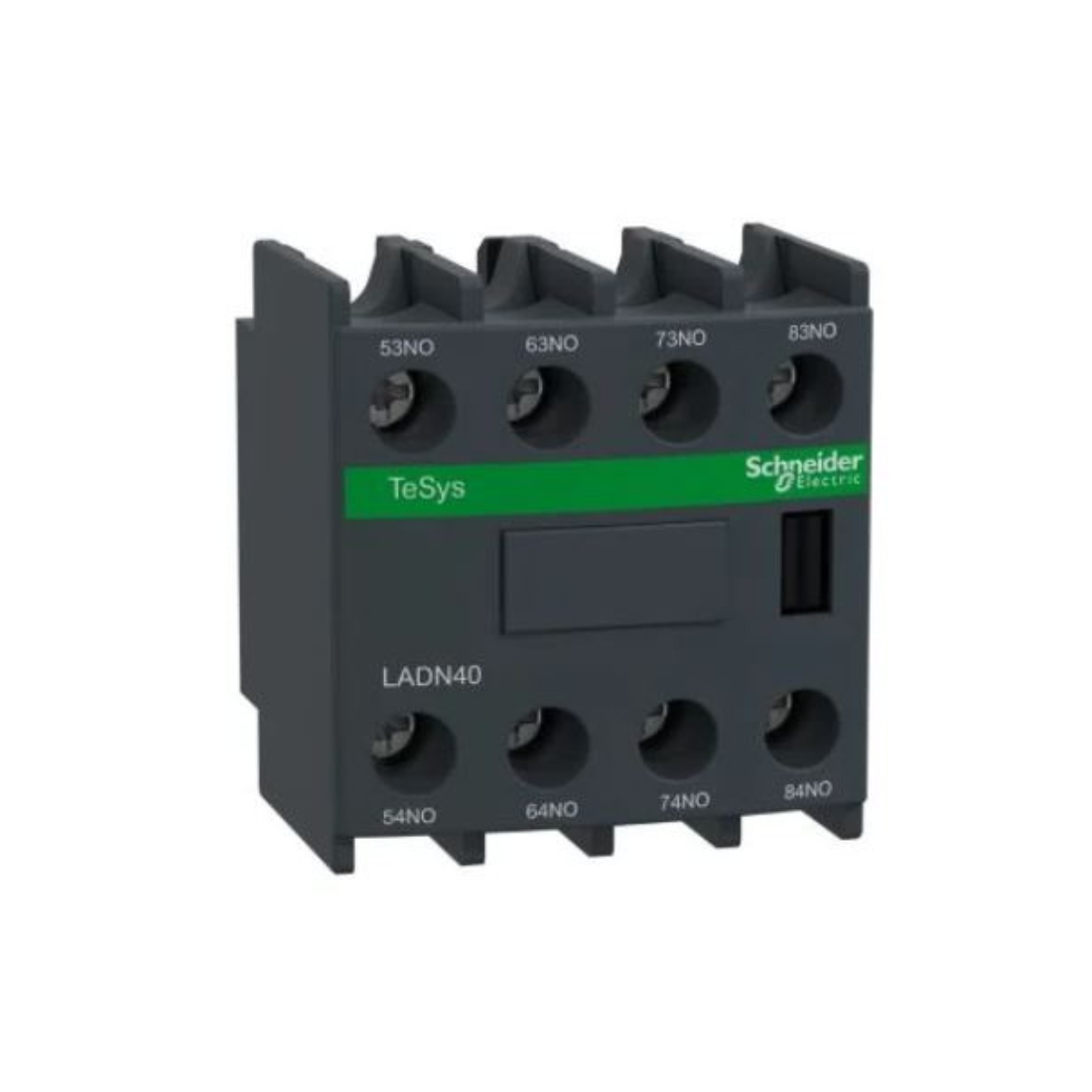

Schneider Electric TeSys D Auxiliary Contact Block 4NO Front Mounting Screw Clamp Terminals LADN40
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric LADN40 TeSys D Auxiliary Contact Block is a component used to extend the functionality of a primary switching device, such as a contactor or a relay. It has four Normally Open (NO) contacts. This means that in its default state (when not actuated), the contacts are not connected, and when the auxiliary contact is actuated (triggered), the contacts close and create an electrical connection.
The contact block is designed to be attached or mounted on the front surface of a control panel or enclosure. It uses screw-type terminals for wiring connections. These terminals are designed to secure the wires in place by tightening screws, providing a reliable electrical connection.
Overall, Schneider Electric LADN40 TeSys D Auxiliary Contact Block is commonly used in electrical control circuits to monitor or control the status of a device or equipment. The fact that it has four Normally Open contacts means it can be used to monitor or control multiple circuits simultaneously.
Features
- Front mounting with Screw clamp terminals
- Instantaneous auxiliary contacts operation
- Conventional Free Air Thermal Current 10 A
- Minimum switching current of 5mA at 17V
- Mechanical durability 30 million cycles
| Brand | Schneider Electric |
| Item Name | Auxiliary Contact Block |
| Model | LADN40 |
| Color | Dark Grey |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA |
| Ambient Air Temperature For Storage | -60-80 °C |
| Connections - Terminals | screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end |
| Depth | 42 mm |
| Height | 48 mm |
| IP Degree Of Protection | IP2X conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
| Mechanical Durability | 30 Mcycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Operating Altitude | 3000 m |
| Pole Contact Composition | 4 NO |
| Certifications | CB, UL, CSA, CCC, EAC, UKCA |
| Protective Treatment | TH Conforming to IEC 60068 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 25...400 Hz |
| Tightening Torque | 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2 |
| Width | 44 mm |
| Permissible Short-time Rating | 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms |
| Auxiliary Contacts Operation | Instantaneous |
| Shielding Continuity Terminal | Without |
| Ambient Air Temperature For Operation | -5-60 °C |
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012 |
| Rated Operational Current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| Environmental Characteristic | Normal Environment |
| Insulation Resistance | > 10 MOhm |
| Mounting Location | Front |
| Range Compatibility | TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D |
