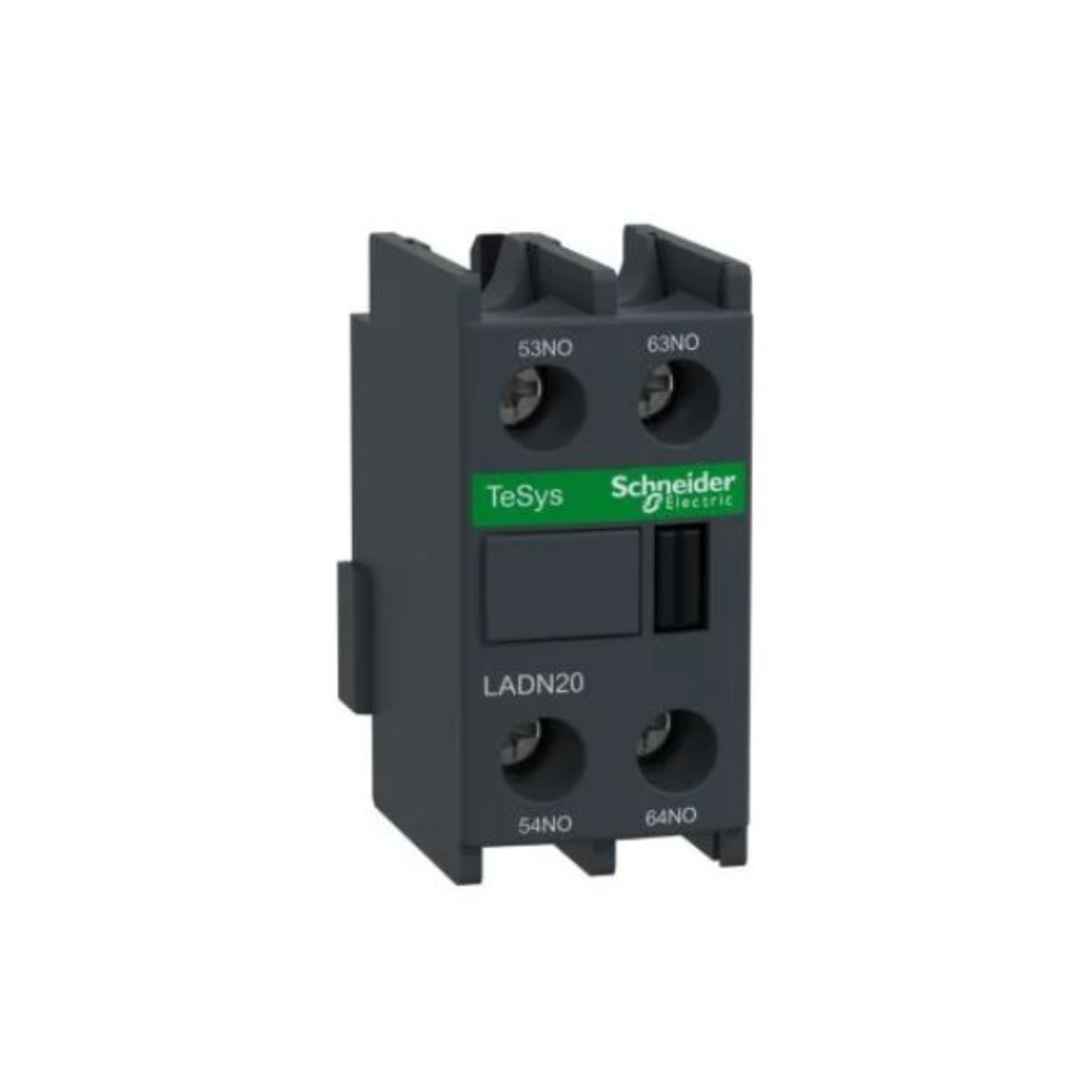

Schneider Electric TeSys D Auxiliary Contact Block 2NO Front Mounting Screw Clamp Terminals LADN20
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric LADN20 TeSys D Auxiliary Contact Block is an electrical component used in control circuits of electrical systems. It is a modular unit that is typically attached to a main contactor or a relay. The primary function of an auxiliary contact block is to provide additional contacts that can be used to control or monitor other devices in the circuit.
2NO typically refers to a block that contains two Normally Open (NO) contacts. These contacts are electrical switch elements that are normally in an open state, but they close when activated. Auxiliary Contact Block is designed to be mounted on the front panel or surface of a control panel or electrical enclosure. It is equipped with terminals where wires can be secured by tightening screws. This provides a reliable and secure connection method for electrical wiring.
In summary, Schneider Electric LADN20 TeSys D Auxiliary Contact Block is a component used in electrical systems to provide additional Normally Open contacts. It is designed to be mounted on the front surface of a panel and features terminals that allow wires to be securely connected using screws. This type of component is commonly used in control circuits and automation systems.
Features
- Front mounting with Screw clamp terminals
- Instantaneous auxiliary contacts operation
- Conventional Free Air Thermal Current 10 A
- Minimum switching current of 5mA at 17V
- Mechanical durability 30 million cycles
| Brand | Schneider Electric |
| Item Name | Auxiliary Contact Block |
| Model | LADN20 |
| Color | Dark Grey |
| Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA |
| Ambient Air Temperature For Storage | -60-80 °C |
| Connections - Terminals | screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end |
| Depth | 42 mm |
| Height | 48 mm |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
| Mechanical Durability | 30 Mcycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Operating Altitude | 3000 m |
| Pole Contact Composition | 2 NO + 2 NC |
| Certifications | CB, UL, CSA, CCC, UKCA |
| Protective Treatment | TH Conforming to IEC 60068 |
| Range | TeSys, TeSys Deca |
| Rated Operational Voltage Limits | 690 V AC 25...400 Hz |
| Tightening Torque | 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2 |
| Width | 44 mm |
| Permissible Short-time Rating | 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms |
| Auxiliary Contacts Operation | Instantaneous |
| Shielding Continuity Terminal | Without |
| Ambient Air Temperature For Operation | -5-60 °C |
| Standards | UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012 |
| Rated Operational Current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| Environmental Characteristic | Normal Environment |
| Insulation Resistance | > 10 MOhm |
| Mounting Location | Front |
| Range Compatibility | TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D |
| Weight | 141.0 g |
