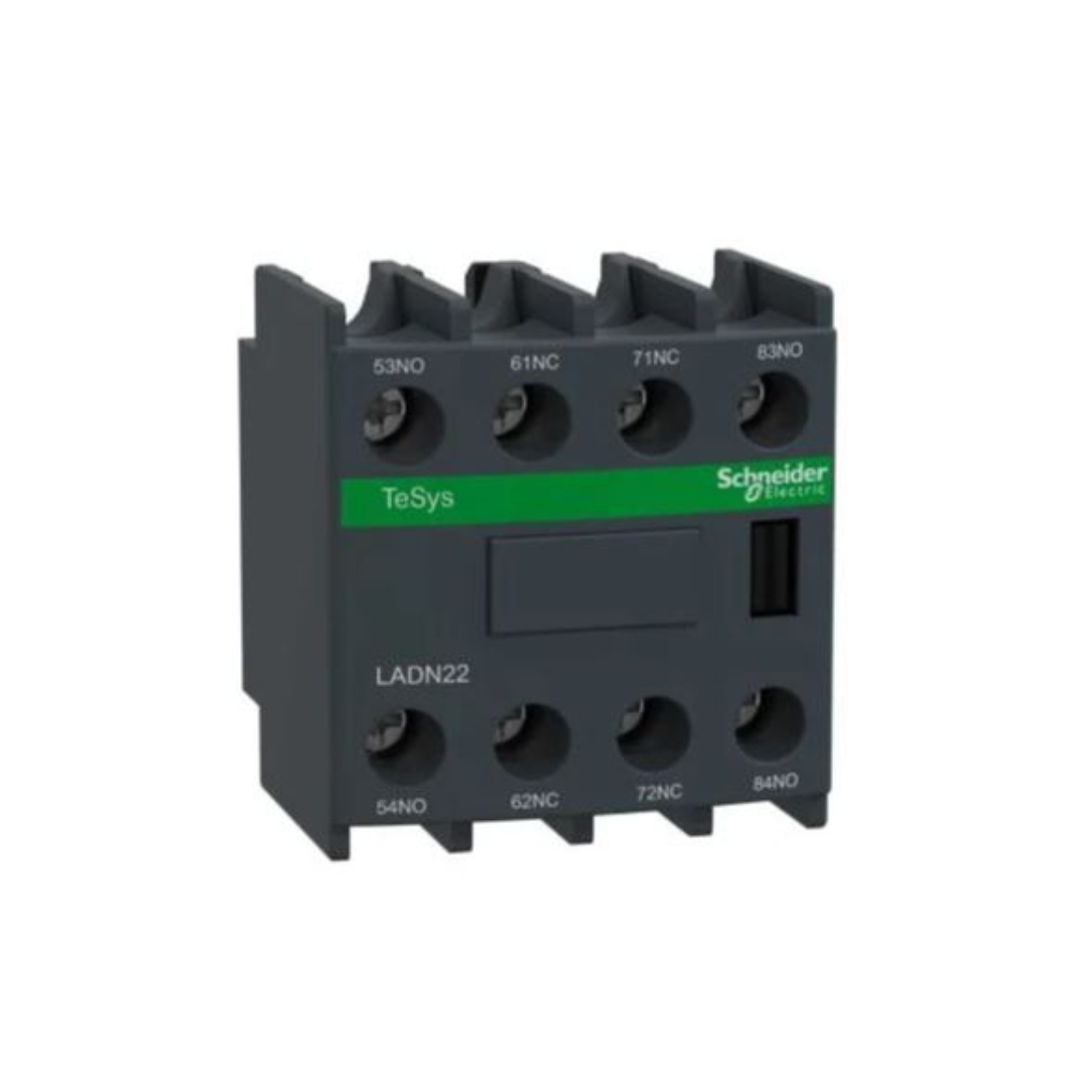

Schneider Electric TeSys D Auxiliary Contact Block 2NO + 2NC Front Mounting Screw Clamp Terminals LADN22

Name: Schneider Electric TeSys D Auxiliary Contact Block 2NO + 2NC Front Mounting Screw Clamp Terminals LADN22
Brand: Schneider Electric
Price: 43.0 AED
Availability: InStock

AED 43.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Auxiliary Contact Block

Description

Schneider Electric LADN22 TeSys D Auxiliary Contact Block is a component commonly used in electrical systems and control panels. 2NO + 2NC is the configuration of the auxiliary contacts. "NO" stands for Normally Open, which means the contacts are open when not actuated, and they close when actuated.

"NC" stands for Normally Closed, which means the contacts are closed when not actuated and open when actuated. Front Mounting is designed to be attached to the front panel or surface of a control panel or electrical enclosure. Screw Terminals is the type of terminals used for wiring connections. In this case, the auxiliary contact block has screw terminals, which means you would secure the wires by tightening screws.

Overall, Schneider Electric LADN22 TeSys D Auxiliary Contact Block provides two options for electrical connections.

Features

Front mounting with Screw clamp terminals
Instantaneous auxiliary contacts operation
Used with TeSys D and F Series Contactors
Insulation voltage 690 V to IEC 60947-5-1
Rated operational Voltage 690 VAC
Conventional Free Air Thermal Current 10 A
Minimum switching current of 5mA at 17V
Mechanical durability 30 million cycles
Compliance to UL and CSA standards

Specifications

Brand : Schneider Electric

Item Name : Auxiliary Contact Block

Model : LADN22

Color : Dark Grey

Conventional Free Air Thermal Current : 10 A (at 60 °C)

Rated Insulation Voltage : 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA

Ambient Air Temperature For Storage : -60-80 °C

Connections - Terminals : screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end

Depth : 42 mm

Height : 48 mm

IP Degree Of Protection : IP20 conforming to IEC 60529

Irms Rated Making Capacity : 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1

Mechanical Durability : 30 Mcycles

Minimum Switching Current : 5 mA

Minimum Switching Voltage : 17 V

Non-overlap Time : 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact

Operating Altitude : 3000 m

Pole Contact Composition : 2 NO + 2 NC

Certifications : CB, UL, CSA, CCC, UKCA

Protective Treatment : TH Conforming to IEC 60068

Range : TeSys, TeSys Deca

Rated Operational Voltage Limits : 690 V AC 25...400 Hz

Tightening Torque : 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2

Width : 44 mm

Permissible Short-time Rating : 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms

Auxiliary Contacts Operation : Instantaneous

Shielding Continuity Terminal : Without

Ambient Air Temperature For Operation : -5-60 °C

Standards : EN/IEC 60947-5-1, GB/T 14048.5

Rated Operational Current : 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13

Environmental Characteristic : Normal Environment

Insulation Resistance : > 10 MOhm

Mounting Location : Front

Range Compatibility : TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D

Weight : 141.0 g
