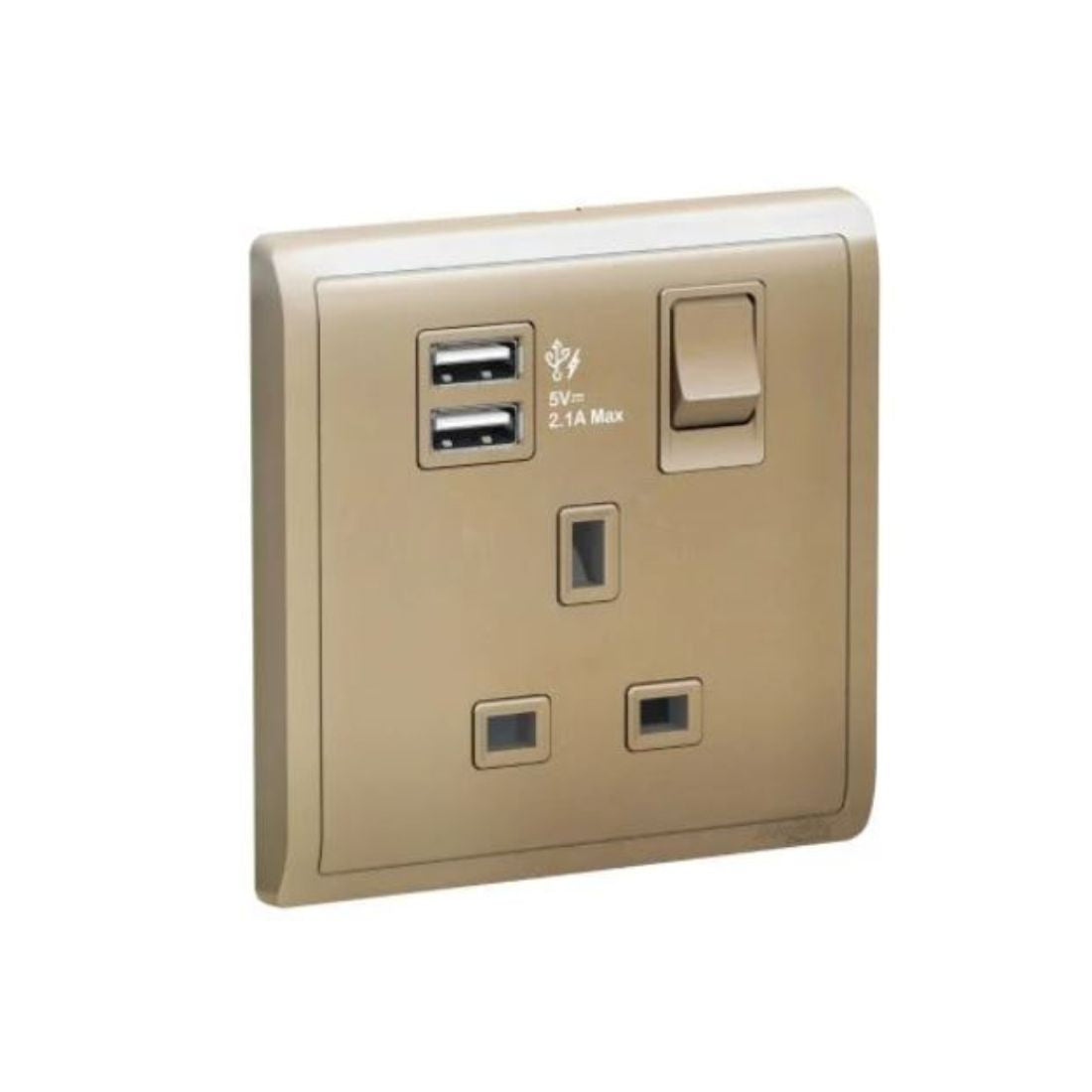

Schneider Electric Switched Socket with 2.1A USB 13A 1 Gang E8215USB_WG_G12 - Wine Gold
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : USB With Switched Socket
Description
Schneider Electric E8215USB_WG_G12 13A, 1G, Switched Socket With 2.1A USB is an electrical outlet that includes built-in USB ports for charging electronic devices in addition to the standard power outlets. 13A is the maximum current rating for the socket, which means the socket can handle a maximum current of 13 amperes.
1G is the number of gangs in the outlet. The socket has a switch that can be used to control the power supply to the socket. The USB charging ports with a total output of 2.1 amperes. These USB ports can be used to charge devices like smartphones, tablets, or other USB-powered gadgets.
In summary, Schneider Electric E8215USB_WG_G12 13A, 1G, Switched Socket With 2.1A USB is an electrical outlet with a single socket, a switch for controlling the power to that socket, and two USB charging ports with a total output of 2.1 amperes. It has a wine-gold color for aesthetic purposes. This type of outlet can be useful for charging electronic devices while still using the socket for other purposes.
Features
- Provide both USB charging capabilities and traditional power outlets.
- Its connection terminals are screw terminals.
- Ideally suited for new construction and refurbishment projects
- Unique Full Flat Design
| Brand | Schneider Electric |
| Item Name | Switched Socket With USB |
| Model | E8215USB_WG_G12 |
| Clamping Connection Capacity | 1 x 4 mm² For Solid Cable(s), 2 x 4 mm² For Stranded Cable(s), 1 x 2.5 mm², 2 x 2.5 mm² |
| Rated Current Power Circuit | 13 A 220...250 V, AC, 50/60 Hz |
| Color | Wine Gold |
| Depth | 42.15mm |
| Device Mounting | Flush 47mm |
| Device Presentation | Mechanism |
| Electrical Connection | 3 Screw Terminal |
| Embedding Depth | 30.1mm |
| Fixing Center | 60.3mm |
| Fixing Mode | By Screws M3.5 x 25mm |
| Input Power | 16W |
| Height | 87mm |
| IP Degree Of Protection | IP20 |
| Integrated Connection Type | 2 USB port 5 V DC, Maximum Load Current: 2.1 A |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Cover, Polycarbonate: Surround, Polycarbonate: Dolly, Nylon + GF: Shutter, Brass: Contact Plate, Steel: Spring, Nickel Steel: Terminal Screw |
| Number Of Gangs | 1 Gang |
| Number Of Power Socket Outlets | 1 x 2P + E With Shutters, British |
| Operating Altitude | <= 2000m |
| Power Consumption | 0.075W |
| Range | Pieno |
| Protection Type | USB port: over temperature protection with PWM IC circuit, USB port: over voltage protection against surges with PWM IC circuit, USB port: overcurrent between output phases and earth (on power up only) with PWM IC circuit |
| Relative Humidity | 0-95 % |
| Socket Number | 1 |
| Surface Finish | Glossy |
| Screwdriver Shape | Phillips |
| Surface Finish | Glossy |
| Surface Treatment | Painted |
| Switch Function | ON/OFF Power-Socket Outlet |
| Wire Stripping Length | 10-12 mm |
| Ambient Air Temperature For Operation | 0-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Standards | BS 1363-2, IEC 60950-1 |
| Environmental Characteristic | Alcohol, Liquid Soap |
| Width | 87 mm |
| Net Weight | 0.1064 kg |
