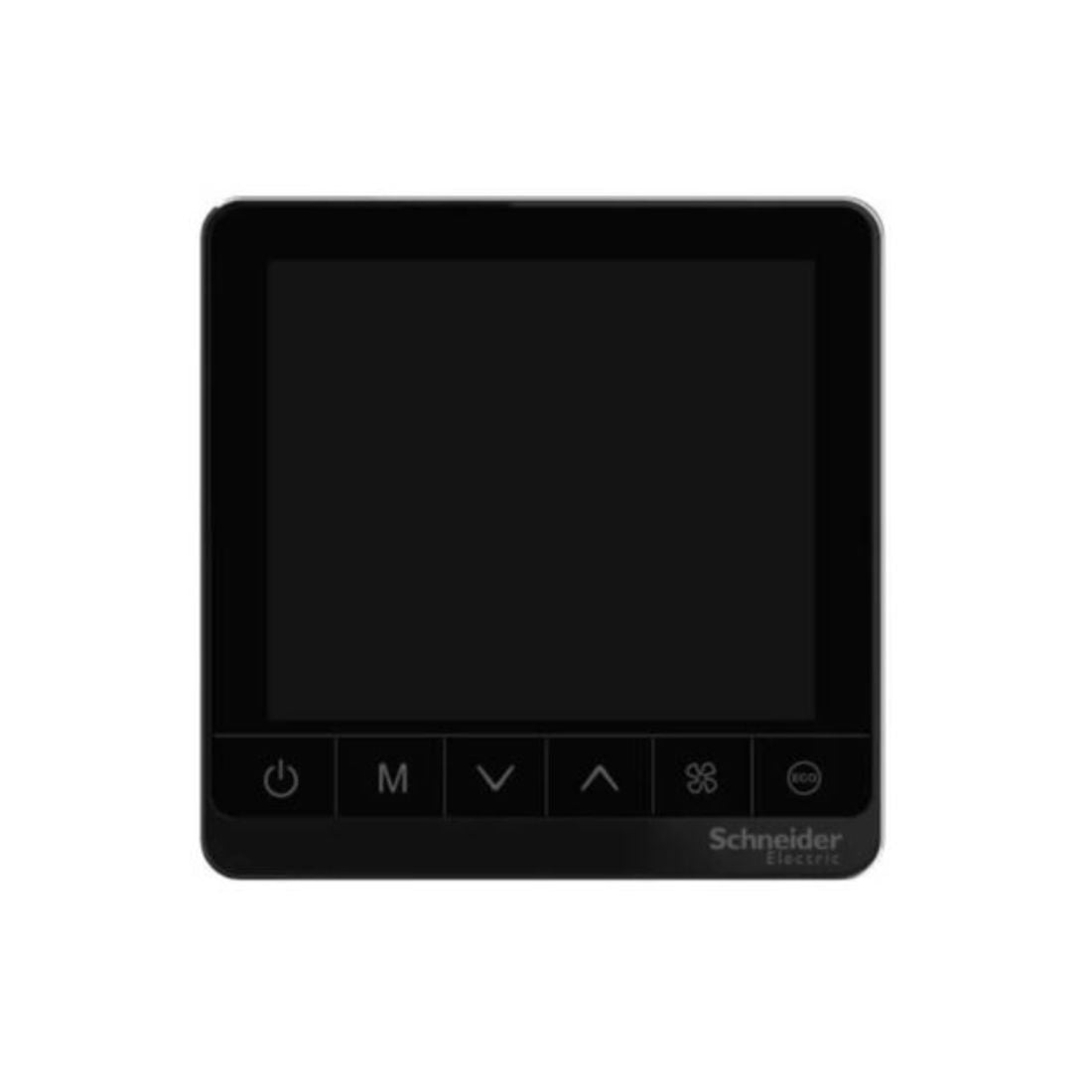

Schneider Electric SpaceLogic Thermostat Fan Coil Proportional Standalone Touchscreen 2P 3 Fan 24V TC907-3A2P-24B - Black
(Price Includes VAT)
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC907-3A2P-24B Thermostat is a device used to regulate and maintain a specific temperature within an environment, typically a building or a room. It controls the heating or cooling systems to achieve the desired temperature setting. The thermostat is standalone, meaning it operates independently and doesn't require connection to a larger system. It has a touchscreen interface for easy control and adjustment of settings. It operates on a 24V power supply and is black in color.
Additionally, the Thermostat is designed for use with a fan coil system that uses proportional control. This means it can modulate the fan speed to achieve the desired temperature. It's a 2P (2-pipe) system, which typically indicates that it can either provide heating or cooling but not both simultaneously. It supports up to 3 fan speeds.
Features
- Control the temperature of a system
- Fan Coil Proportional control system
- Standalone
- Touchscreen
- Capable of controlling three different fan speeds
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC907-3A2P-24B |
| Color | Black |
| Rated Supply Voltage | 24 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (back) - 2 cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 cable(s) 2.5-2.5 mm² |
| Control Type | Touch Screen, for thermostat, pulse width modulation, for actuator, 3 speed control relay, for fan |
| Device Application | Fan |
| Depth | 40 mm |
| Display Type | Backlit LCD Screen |
| Function Available | Setpoint adjustment, fan control, mode selection, economizer, disable functions, alarm, low-temperature protection |
| Information Displayed Ambient Room Temperature | 0 to 50 °C, time, day, temperature alarm, communication status ok, current program |
| IP Degree of Protection | IP20 |
| Height | 86mm |
| Market Segment | Small Buildings, Hotel, Healthcare, residential |
| Max Power Consumption | 1 W |
| Measurement Accuracy | Temperature +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A for relay, 240 V AC 2 A for load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC thermistor |
| Temperature Setting Range | 5-35 °C |
| Specific Application | 2-Pipe System |
| Width | 86 mm |
| Range | SpaceLogic |
| Number of Inputs | 1 Card Reader |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
