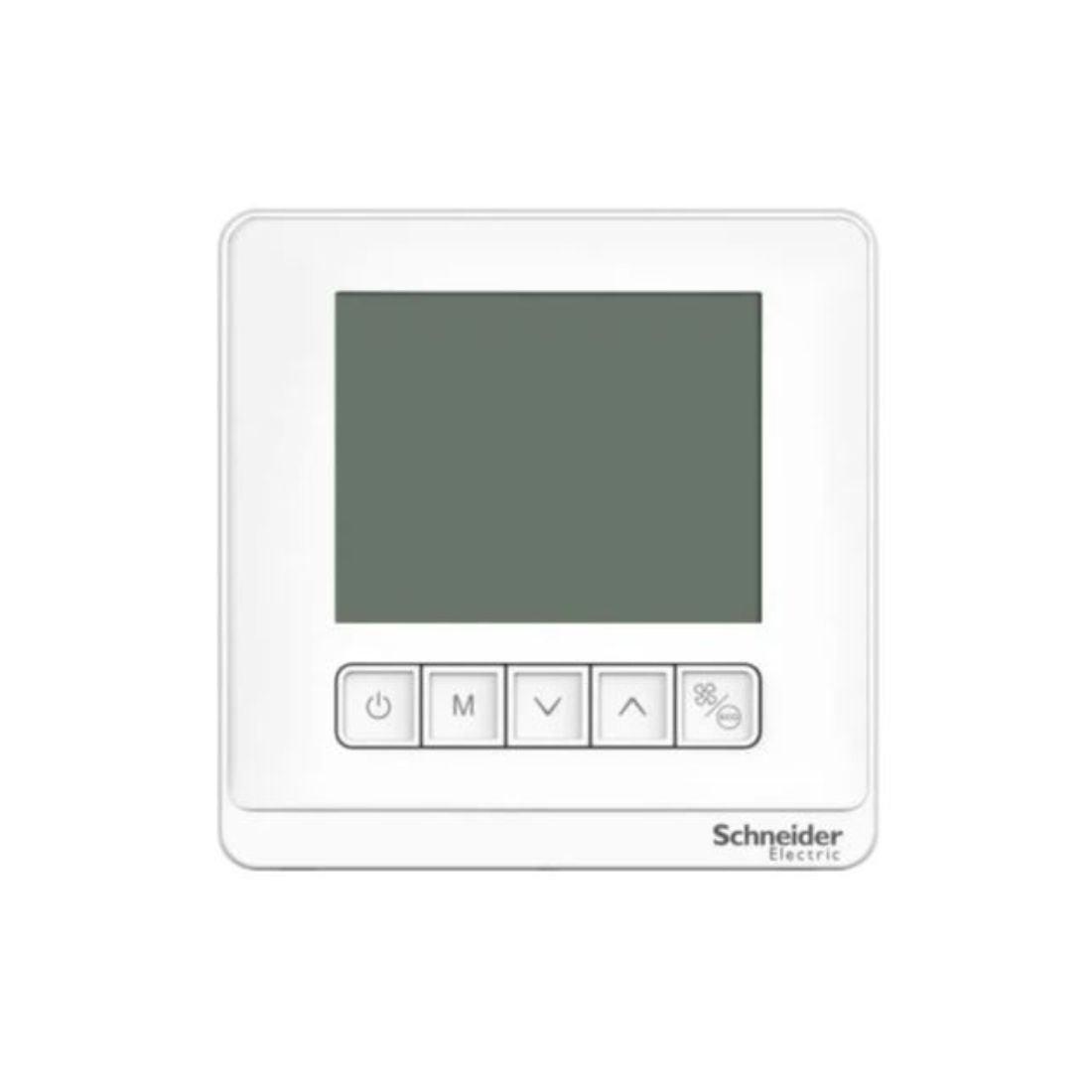

Schneider Electric SpaceLogic Thermostat Fan Coil Proportional Standalone LCD 5 Button 4P 3 Fan External Sensor 240V TC903-3A4DPSA - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC903-3A4DPSA Thermostat is a device used to regulate and control the temperature of a system or an environment. It is commonly used in heating, ventilation, and air conditioning (HVAC) systems to maintain a desired temperature within a space. It typically operates independently and does not require a central system or smart home integration.
The thermostat has a Liquid Crystal Display with five buttons, likely for navigation and programming. The thermostat can connect to an external sensor to provide more accurate temperature readings or to control the HVAC system based on the temperature at a specific location. 4P typically refers to a four-pole connection, which may relate to the electrical wiring and compatibility of the thermostat.
The thermostat supports control for three different fan speeds. 240V is the voltage rating. It is designed to operate on a 240-volt electrical system. White is the color of the thermostat, which is often mentioned for aesthetic purposes or to ensure it matches the room's decor.
Features
- Control the temperature of a system
- Standalone
- LCD 5 Button
- It has the capability to connect to an external sensor
- Capable of controlling three different fan speeds
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC903-3A4DPSA |
| Color | White |
| Rated Supply Voltage | 90...240 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (back) - 2 cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 cable(s) 2.5-2.5 mm² |
| Control Type | Mechanical, for thermostat, pulse width modulation, for actuator, 3 speed control relay, for fan |
| Device Application | Fan |
| Depth | 40 mm |
| Display Type | Backlit LCD Screen |
| Function Available | Setpoint adjustment, fan control, mode selection, economizer, disable functions, alarm, low-temperature protection |
| Information Displayed Ambient Room Temperature | 0 to 50 °C, time, day, temperature alarm, communication status ok, current program |
| IP Degree of Protection | IP20 |
| Height | 86mm |
| Market Segment | Small Buildings, Hotel, Healthcare, residential |
| Max Power Consumption | 1 W |
| Measurement Accuracy | Temperature +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A for relay, 240 V AC 2 A for load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC Thermistor |
| Temperature Setting Range | 5-35 °C |
| Specific Application | 4-Pipe System |
| Width | 86 mm |
| Range | SpaceLogic |
| Number of Inputs | 1 Card Reader |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
