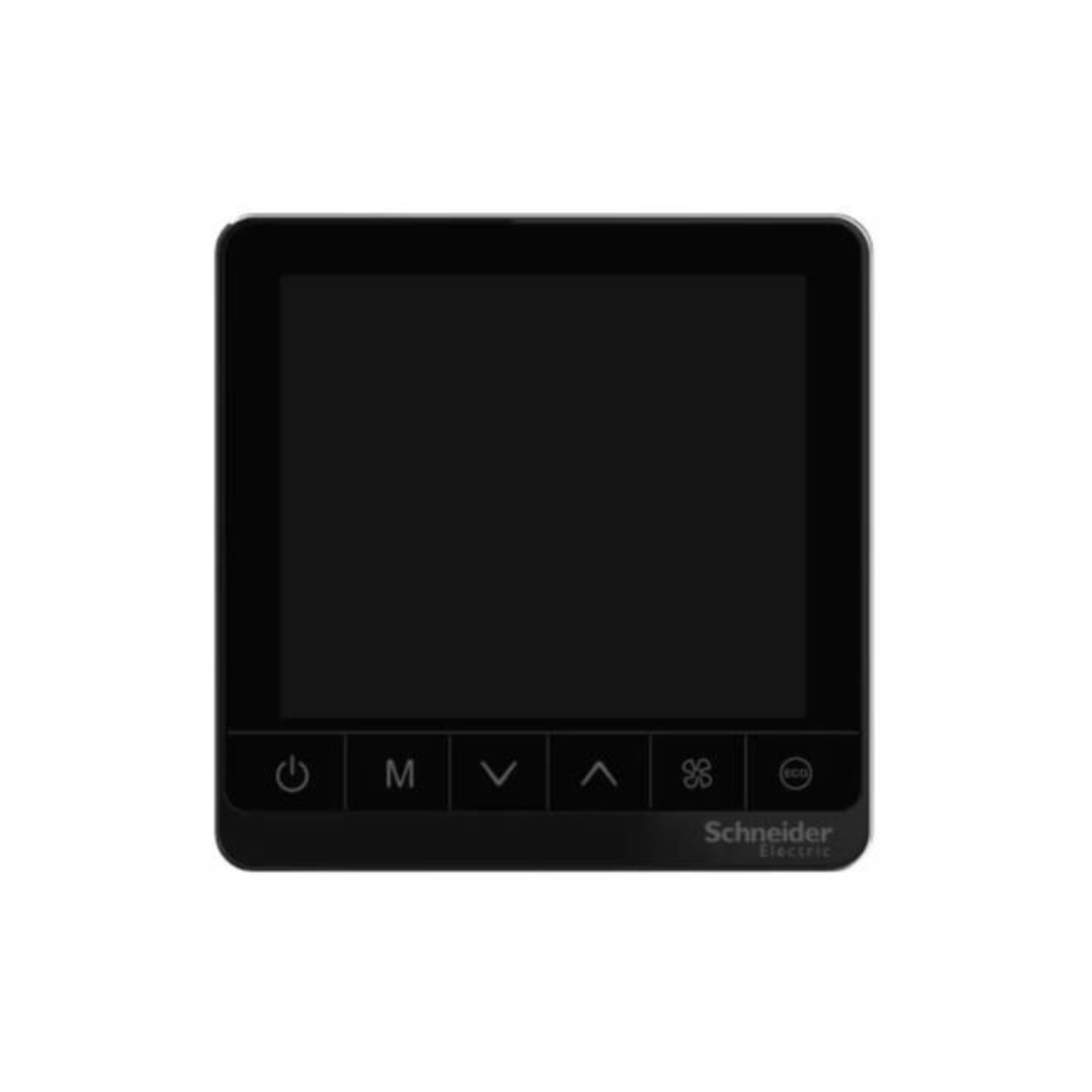

Schneider Electric SpaceLogic Thermostat Fan Coil On/Off Standalone Touchscreen 4P 3 Fan External Sensor 240V TC907-3A4DLSAB - Black
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC907-3A4DLSAB Thermostat is a device that regulates temperature in a system so as to maintain it at a desired set point. It's commonly used in heating or cooling systems. It operates independently and doesn't require a connection to a larger network or system.
The thermostat has a touchscreen interface for user interaction and settings adjustment. It is capable of controlling a fan coil unit, specifically turning it on and off. 4P is a four-pole electrical connection or switch, which means it has four contact points or positions. The thermostat can control up to three different fan speeds or settings. 240V is the voltage at which the thermostat operates. Black is the color of the thermostat.
Schneider Electric TC907-3A4DLSAB Thermostat is versatile, suitable for controlling a fan coil unit with multiple fan speeds, operating at 240 volts, and featuring a standalone touchscreen interface.
Features
- Control the temperature of a system
- Fan Coil On/Off
- Standalone
- Touchscreen
- Capable of controlling three different fan speeds
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC907-3A4DLSAB |
| Color | Black |
| Rated Supply Voltage | 90...240 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (back) - 2 cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 cable(s) 2.5-2.5 mm² |
| Control Type | Touch screen, for thermostat, 2 positions ON-OFF button, for actuator, 3 speed control relay, for fan |
| Device Application | Fan |
| Depth | 40 mm |
| Display Type | Backlit LCD Screen |
| Function Available | Setpoint adjustment, fan control, mode selection, economiser, disable functions, alarm, low temperature protection, sleep mode |
| Information Displayed | Ambient Room Temperature 0 to 50 °C, time, day, temperature alarm, communication status ok, current program |
| IP Degree of Protection | IP20 |
| Height | 86mm |
| Market Segment | Small Buildings, Hotel, Healthcare, residential |
| Max Power Consumption | 1 W |
| Measurement Accuracy | Temperature +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A for relay, 240 V AC 2 A for load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC thermistor |
| Temperature Setting Range | 5-35 °C |
| Specific Application | 4-Pipe System |
| Width | 86 mm |
| Number Of Inputs | 1 Card Reader |
| Range | SpaceLogic |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
