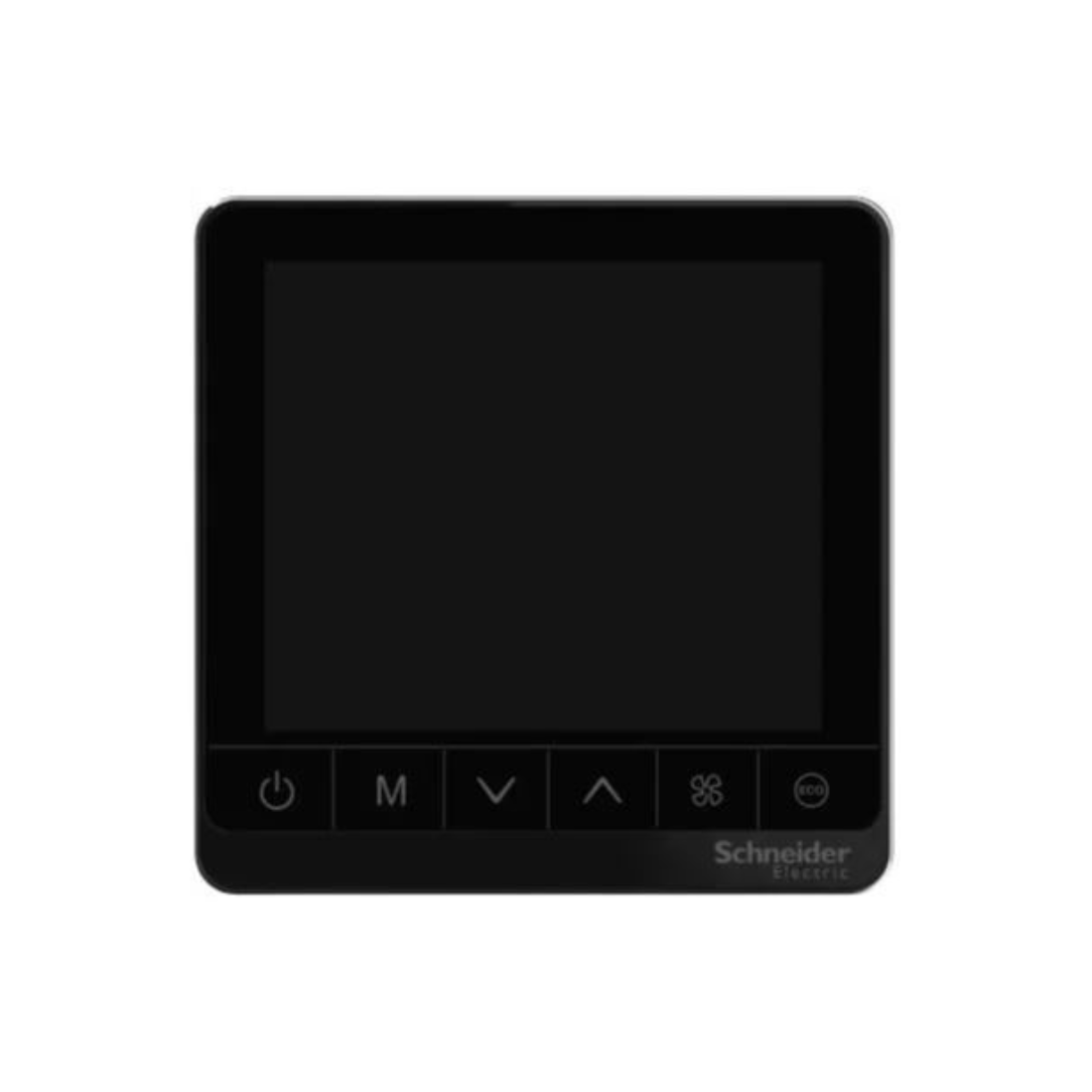

Schneider Electric SpaceLogic Thermostat Fan Coil On/Off Standalone Touchscreen 2P 3 Fan 240V TC907-3A2LB - Black
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC907-3A2LB Thermostat is a device used to regulate and control the temperature of a system or environment. The thermostat operates independently and doesn't require any additional components or systems to function. It has a touch-sensitive screen for user interaction, to set and adjust temperature settings by touching the display.
The thermostat can control a 240V electrical circuit. In electrical terms, a "pole" refers to a single circuit, so a 2-pole device can handle higher voltage. The thermostat can control up to three different fan speeds. 240V is the voltage at which the thermostat operates.
Overall, the Schneider Electric TC907-3A2LB Thermostat operates independently, has a touchscreen interface, is designed for a 240V system, and can control up to three fan speeds. It comes in a black color. This type of thermostat might be used in applications where higher voltage is required, such as in some industrial or specialized residential systems.
Features
- Control the temperature of a system
- Standalone
- Touchscreen
- Control a two-pole electrical circuit
- Capable of controlling three different fan speeds
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC907-3A2LB |
| Color | Black |
| Rated Supply Voltage | 90...240 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (back) - 2 cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 cable(s) 2.5-2.5 mm² |
| Control Type | touch screen, for thermostat, 2 positions ON-OFF button, for actuator, 3 speed control relay, for fan |
| Device Application | Fan |
| Depth | 40 mm |
| Display Type | Backlit LCD Screen |
| Function Available | Setpoint adjustment, fan control, mode selection, economiser, disable functions, alarm, low temperature protection |
| Information Displayed Ambient Room Temperature | 0 to 50 °C, time, day, temperature alarm, communication status ok, current program |
| IP Degree of Protection | IP20 |
| Height | 86mm |
| Market Segment | Small Buildings, Hotel, Healthcare, residential |
| Max Power Consumption | 1 W |
| Measurement Accuracy | Temperature +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A for relay, 240 V AC 2 A for load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC Thermistor |
| Temperature Setting Range | 5-35 °C |
| Specific Application | 2-Pipe System |
| Width | 86 mm |
| Range | SpaceLogic |
| Relative Voltage | 230-230 V +/- 10 % AC 50/60 Hz |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
