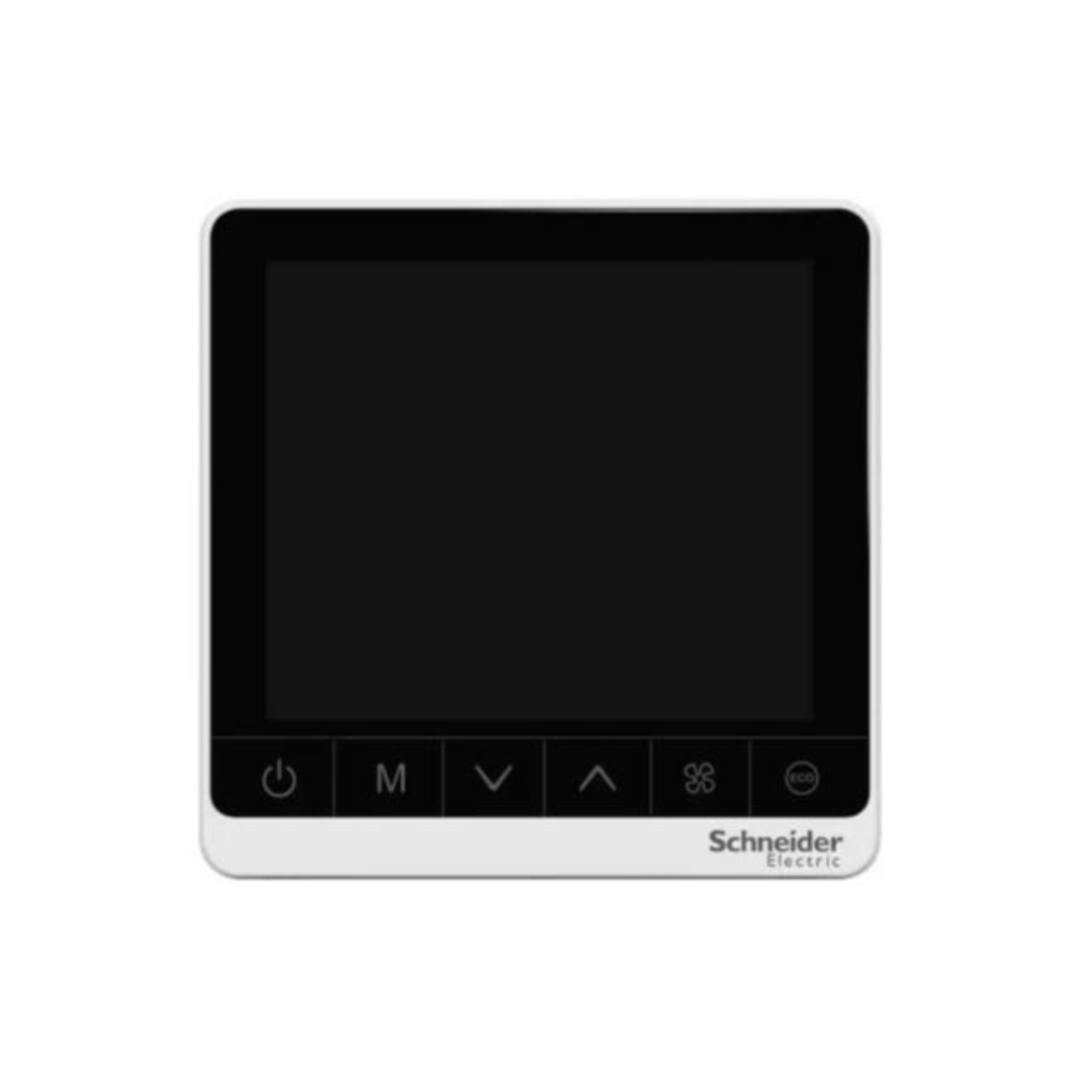

Schneider Electric SpaceLogic Thermostat Fan Coil On/Off Standalone Touchscreen 2P 3 Fan 240V TC907-3A2L - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC907-3A2L Thermostat is a device that is used to regulate the temperature of a system so that it maintains a desired setpoint. It is a standalone thermostat, meaning it's not part of a larger system or network. The thermostat operates independently and doesn't require a connection to a centralized control system. It has a touchscreen interface, which allows users to interact with it by directly touching the screen. It is capable of controlling a fan coil unit.
Fan coil units are part of HVAC systems and are used to regulate the temperature of a space. It is a two-pole system, which could be related to the electrical wiring or the control system. It might indicate that the thermostat can handle a 2-pole connection. The thermostat is capable of controlling three different fan speeds. This is useful for adjusting airflow in the fan coil unit. 240V is the thermostat operates on. In this case, it operates on 240 volts.
Schneider Electric TC907-3A2L Thermostat is used in a heating, ventilation, and air conditioning (HVAC) system, especially one that involves a fan coil unit. It's designed to provide a user-friendly interface with touchscreen controls, and it supports multiple fan speeds. The 240V rating suggests it's designed for a specific voltage level.
Features
- Control the temperature of a system
- Fan Coil On/Off
- Standalone
- Provide a user-friendly interface with touchscreen controls
- Capable of controlling three different fan speeds
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC907-3A2L |
| Color | White |
| Rated Supply Voltage | 90...240 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (back) - 2 cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 cable(s) 2.5-2.5 mm² |
| Control Type | Touch Screen, for thermostat, 2 positions ON-OFF button, for actuator, 3 speed control relay, for fan |
| Device Application | Fan |
| Depth | 40 mm |
| Display Type | Backlit LCD Screen |
| Function Available | Setpoint adjustment, fan control, mode selection, economizer, disable functions, alarm, low-temperature protection |
| Information Displayed Ambient Room Temperature | 0 to 50 °C, time, day, temperature alarm, communication status ok, current program |
| IP Degree of Protection | IP20 |
| Height | 86mm |
| Market Segment | Small Buildings, Hotel, Healthcare, residential |
| Max Power Consumption | 1 W |
| Measurement Accuracy | Temperature +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A for relay, 240 V AC 2 A for load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC thermistor |
| Temperature Setting Range | 5-35 °C |
| Specific Application | 2-Pipe System |
| Width | 86 mm |
| Range | SpaceLogic |
| Number of Inputs | 1 Card Reader |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
