Schneider Electric SpaceLogic Thermostat Fan Coil On/Off Standalone LCD 5 Button 2P 3 Fan 240V - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC903-3A2L Thermostat is a device used to regulate and control the temperature of a system, typically within a confined space like a room, building, or vehicle. It works by monitoring the temperature and making adjustments to a heating or cooling system to maintain a desired setpoint. It operates independently and is not connected to a centralized control system or smart home network.

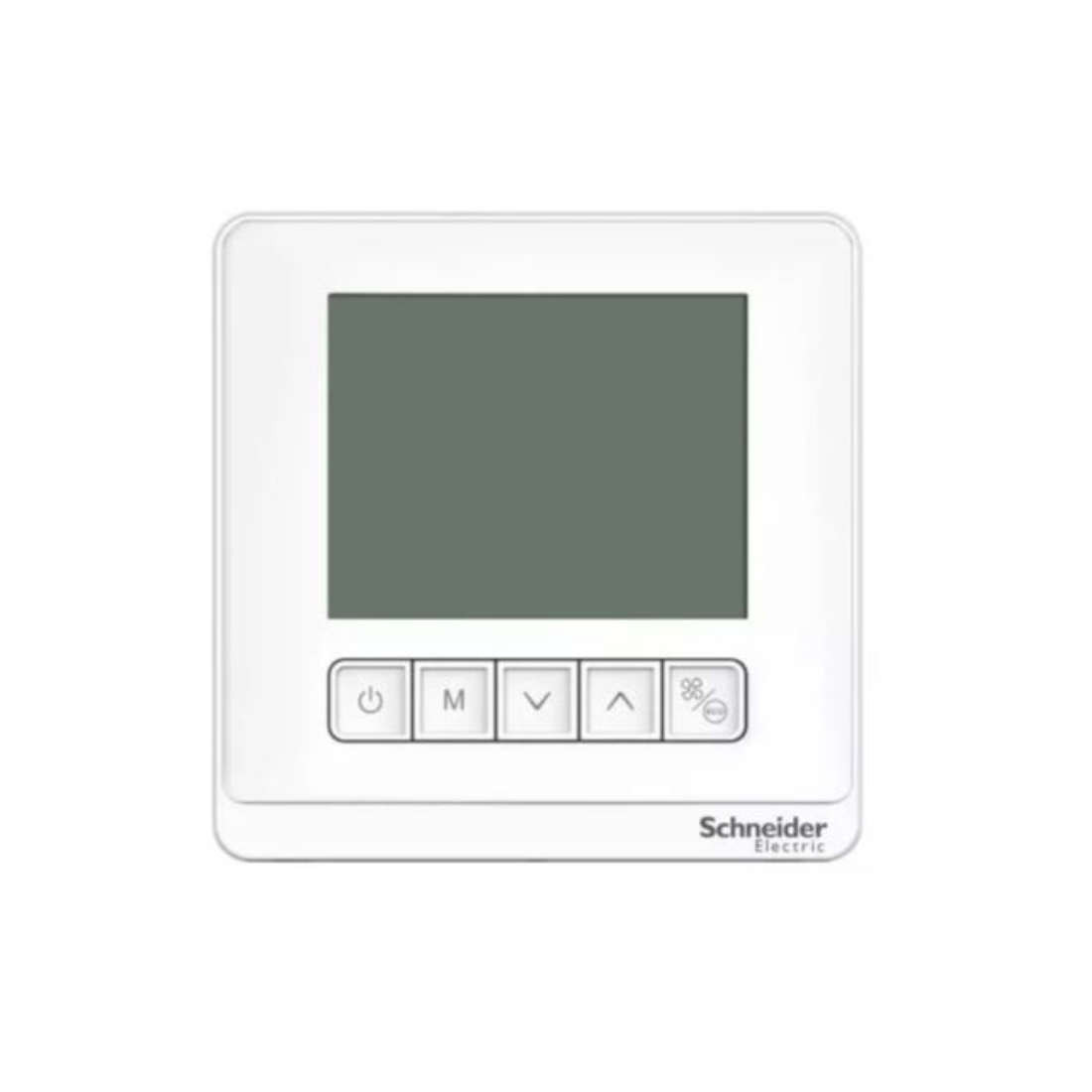

The thermostat has a Liquid Crystal Display, which is a type of flat-panel display technology commonly used in digital devices. It has five buttons for user interaction. These buttons are used to adjust settings, select options, and navigate through the menu. It is designed to control a two-pole electrical circuit. This might be used for controlling higher voltage appliances or systems.
The thermostat is capable of controlling three different fan speeds or fan settings. This is common in systems with multi-speed fans. 240V is designed to operate with a voltage of 240 volts. This is a standard voltage level in many residential and commercial electrical systems.
Overall, Schneider Electric TC903-3A2L Thermostat is designed for standalone use, has an LCD display with five buttons for user interaction, is capable of handling a 240V electrical system, and can control a two-pole circuit with three fan speeds. It also comes in a white color.
Features
- Control the temperature of a system
- Standalone
- LCD 5 Button
- Control a two-pole electrical circuit
- Capable of controlling three different fan speeds
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC903-3A2L |
| Rated Supply Voltage | 90...240 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (back) - 2 cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 cable(s) 2.5-2.5 mm² |
| control Type | Mechanical, for thermostat, 2 positions ON-OFF button, for actuator, 3 speed control relay, for fan |
| Device Application | Fan |
| Depth | 40 mm |
| Display Type | Backlit LCD Screen |
| Function Available | Setpoint adjustment, fan control, mode selection, economiser, disable functions, alarm, low temperature protection |
| Information Displayed Ambient Room Temperature | 0 to 50 °C, time, day, temperature alarm, communication status ok, current program |
| IP Degree of Protection | IP20 |
| Height | 86mm |
| Market Segment | Small Buildings, Hotel, Healthcare, residential |
| Max Power Consumption | 1 W |
| Measurement Accuracy | Temperature +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A for relay, 240 V AC 2 A for load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC Thermistor |
| Temperature Setting Range | 5-35 °C |
| Width | 86 mm |
| Range | SpaceLogic |
| Relative Voltage | 230-230 V +/- 10 % AC 50/60 Hz |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
