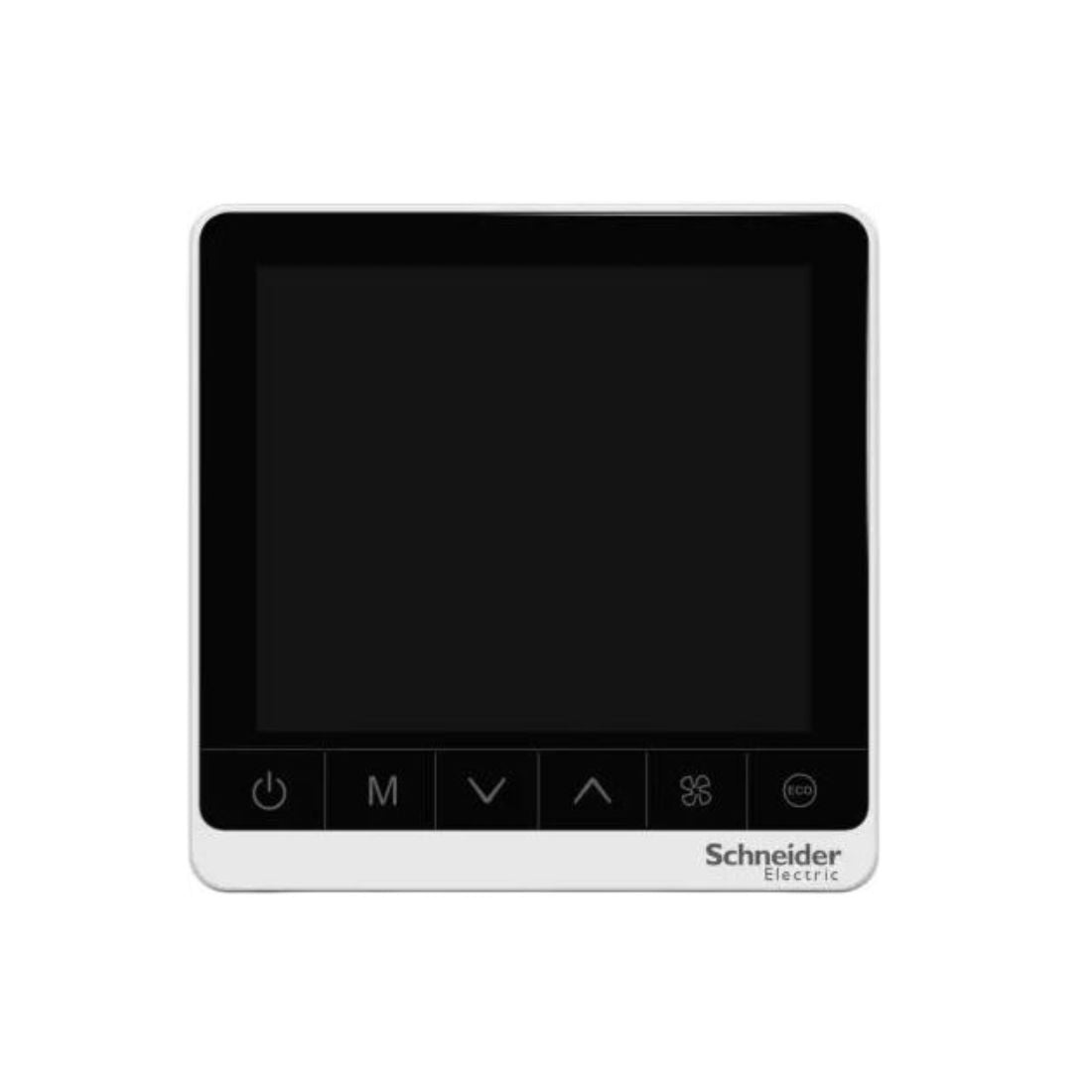

Schneider Electric Space Logic Thermostat Fan Coil On/Off 2P 3 Fan 240V TC907-3A2L - White
(Price Includes VAT)
Sold by: Marketplace
Brand : Schneider Electric
Type : Thermostat
Description
Schneider Electric TC907-3A2L Space Logic Thermostat is a device used to control the temperature of a space, typically in a heating or cooling system. It can control the on/off operation of a fan coil unit. A fan coil unit is a part of an HVAC system that typically contains a fan and a coil for heating or cooling. 2 Pole is the number of electrical connections or circuits it can control.
In HVAC systems, 2-pole thermostats are often used for controlling both heating and cooling elements. The thermostat can control three different fan speeds or possibly three separate fans. This allows for more precise control over the airflow in the HVAC system. The voltage rating of the thermostat, is 240 volts. This voltage is commonly used in residential and commercial electrical systems for powering HVAC equipment.
Schneider Electric TC907-3A2L Space Logic Thermostat is commonly used in HVAC systems to control the fan coil unit's operation and maintain the desired temperature in a space. The three fan speed settings allow for flexibility in controlling the airflow within the space. The 240V operation indicates it's designed for a specific voltage level, and the 2-phase capability suggests compatibility with certain electrical systems.
Features
- Controlling both heating and cooling elements
- Control over the airflow in the HVAC system
- Fan coil on/off
- Standalone
- Touchscreen
| Brand | Schneider Electric |
| Item Name | Thermostat |
| Model | TC907-3A2L Space Logic |
| Color | Black |
| Rated Supply Voltage | 90/240 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | 0-50 °C |
| Connections - Terminals | Screw Terminal (Back) - 2 Cable(s) 1.5-1.5 mm², Screw Terminal (back) - 1 Cable(s) 2.5-2.5 mm² |
| Control Type | Touch Screen, For Thermostat, 2 Positions ON-OFF Button, For Actuator, 3 Speed Control Relay, For Fan |
| Depth 40mm | |
| Device Application | Fan |
| IP Degree Of Protection | IP20 |
| Function Available | Setpoint Adjustment, Fan Control, Mode Selection, Economiser, Disable Functions, Alarm, Low Temperature Protection |
| Height | 86mm |
| Housing Colour | White |
| Information Displayed | Ambient Room Temperature 0 to 50 °C, Time, Day, Temperature Alarm, Communication Status Ok, Current Program |
| Max Power Consumption | 1 W |
| Measurement Accuracy Temperature | +/- 1 °C |
| Network Frequency | 50 Hz, 60 Hz |
| Output Voltage | 240 V AC 5 A For Relay, 240 V AC 2 A For Load |
| Pollution Degree | 2 |
| Certifications | CE |
| Relative Humidity | 5-95 % |
| Sensor Type | 100 kOhm NTC Thermistor |
| Standards | EN/IEC 60730-1, EN/IEC 60730-2-9 |
| Temperature Setting Range | 5-35 °C |
| Width | 86mm |
| Ambient Air Temperature For Operation | 0-50 °C |
| Quantity | 1 Pcs |
