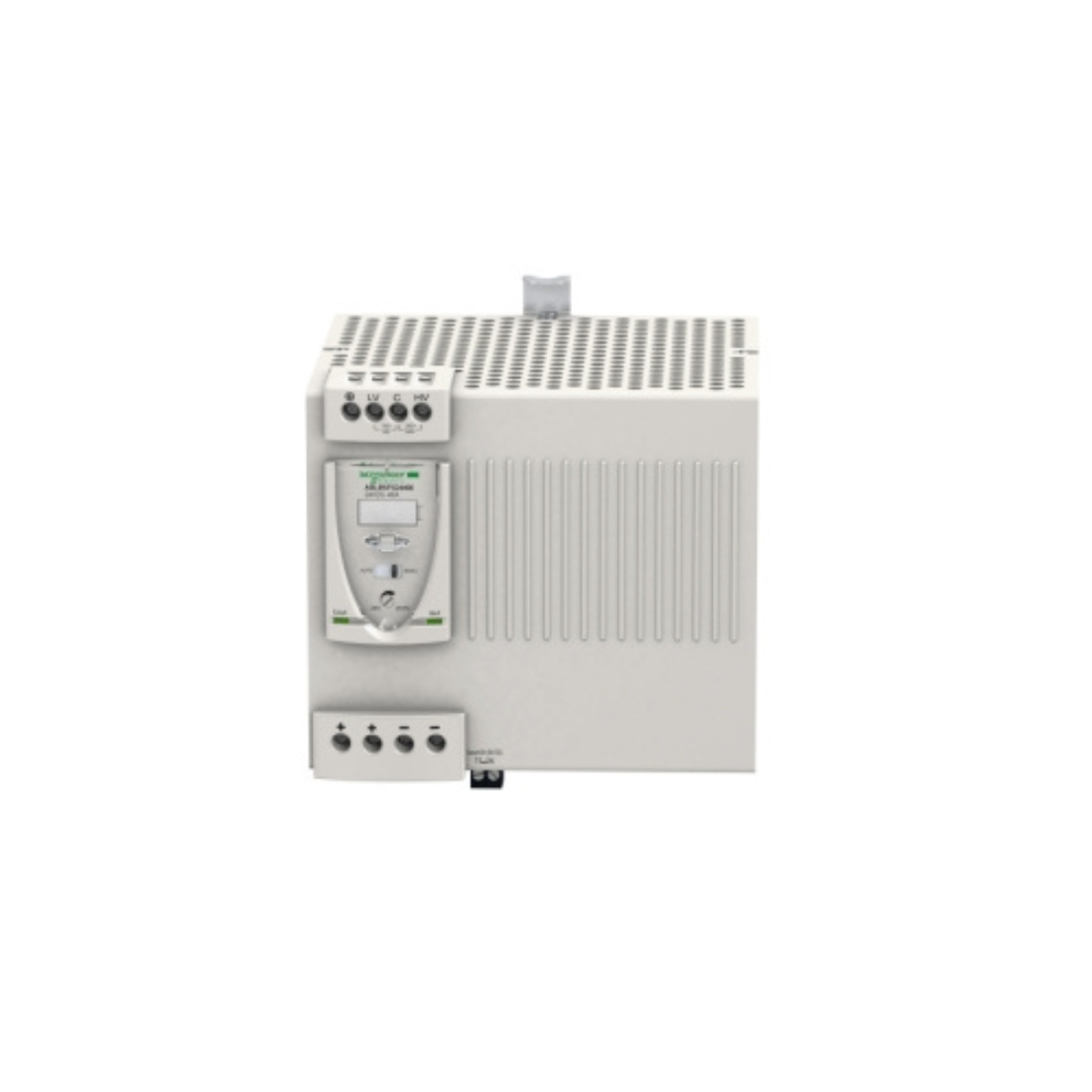

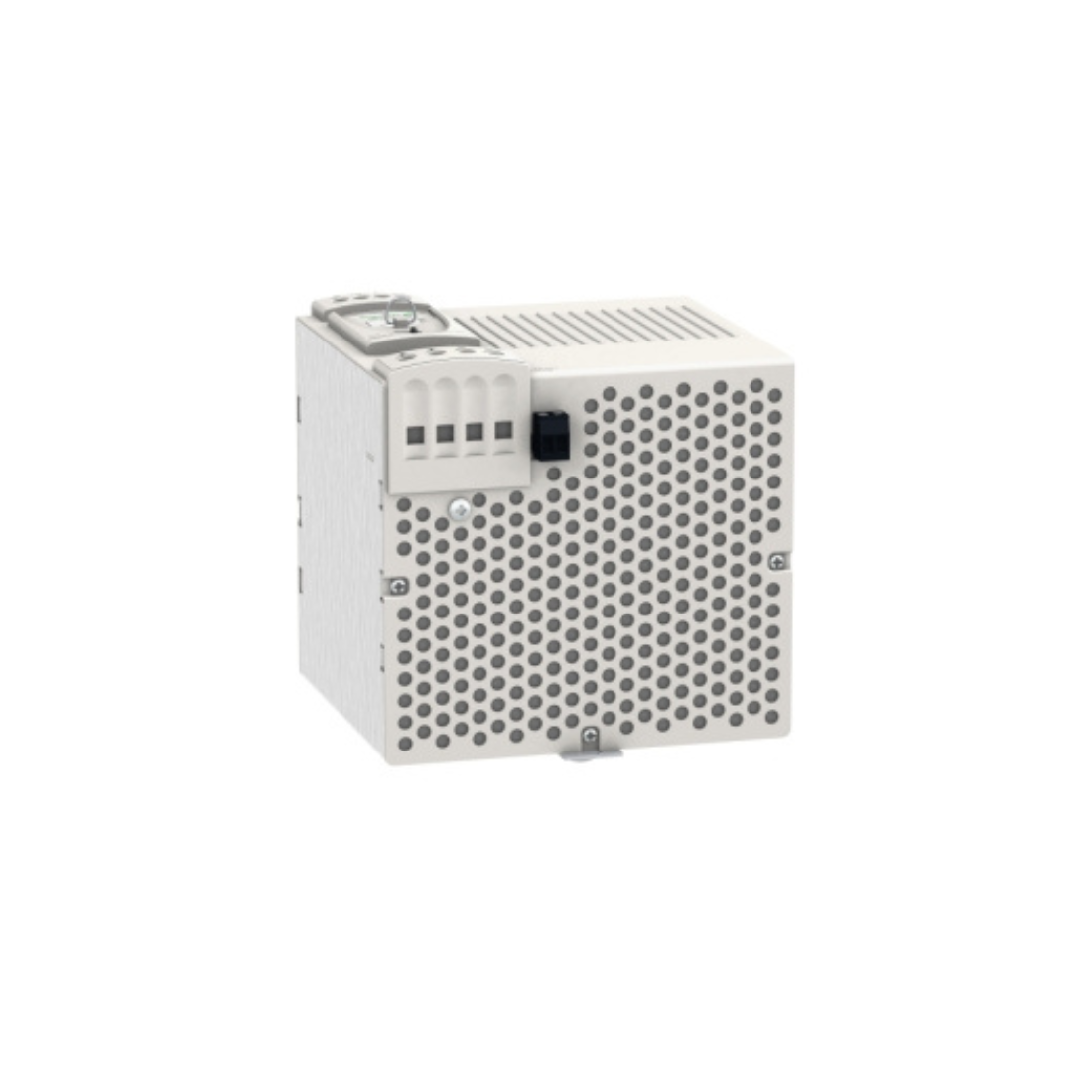

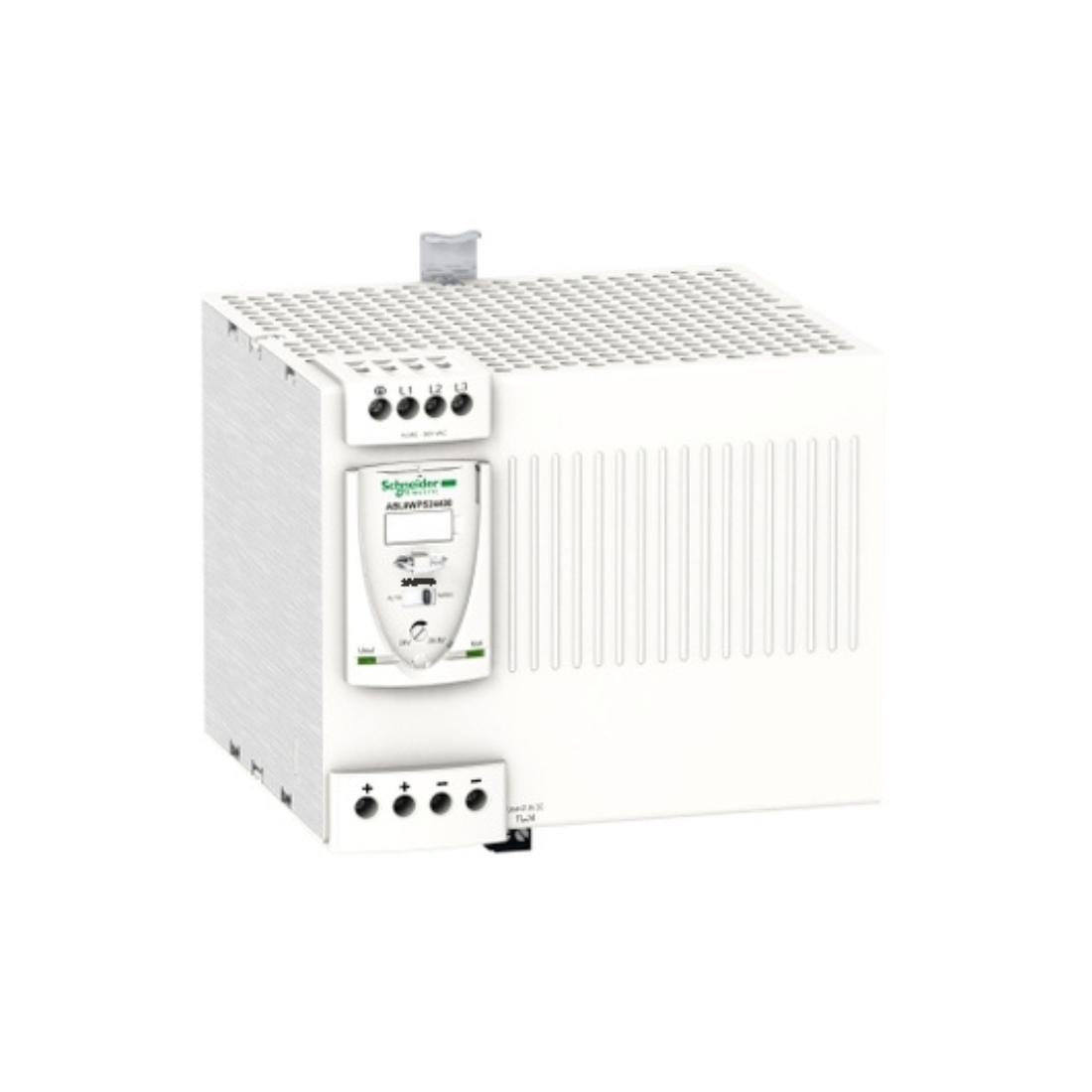

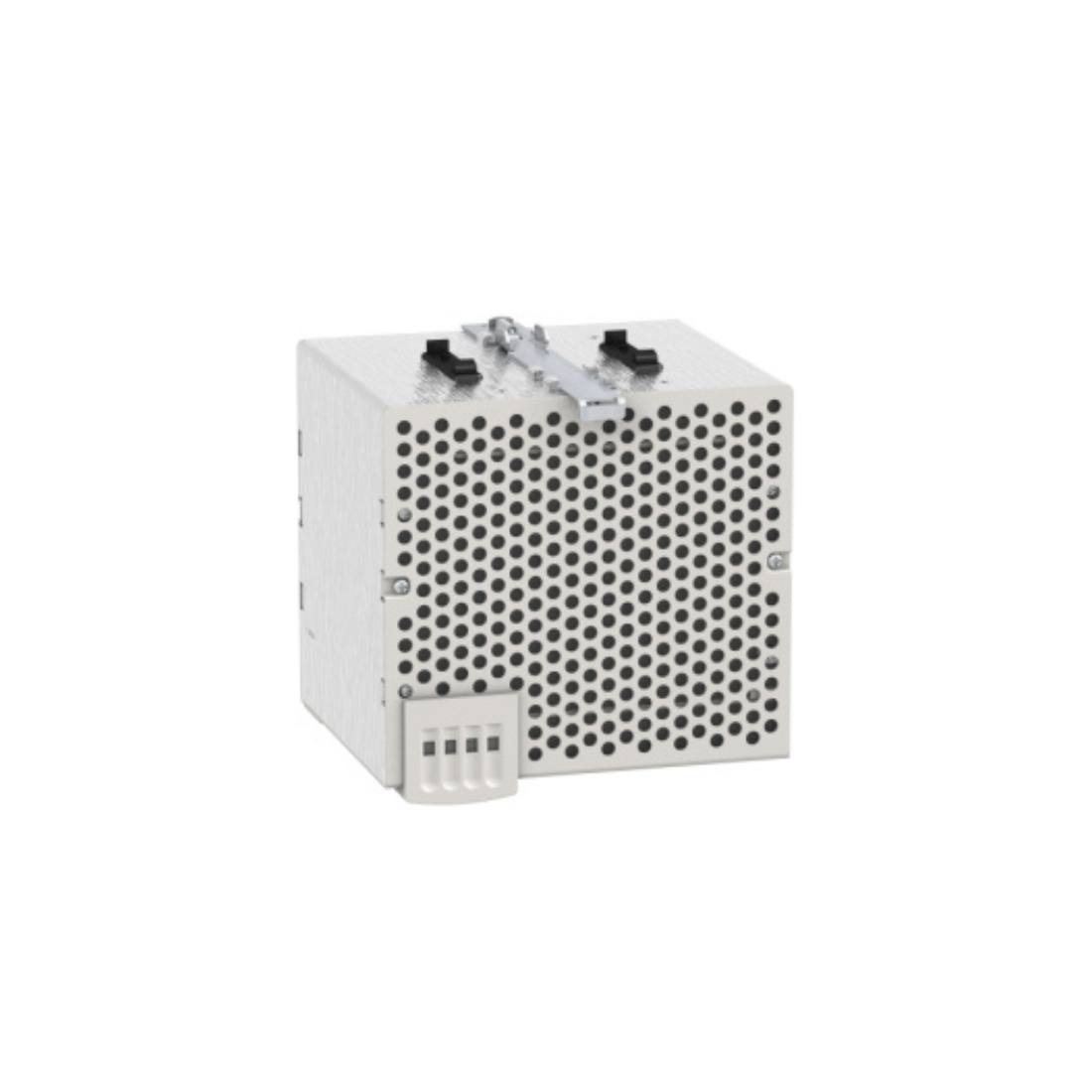

Schneider Electric Regulated SMPS 3 Phase 380-500V 24V 40A ABL8WPS24400

Schneider Electric Regulated SMPS 3 Phase 380-500V 24V 40A ABL8WPS24400

Name: Schneider Electric Regulated SMPS 3 Phase 380-500V 24V 40A ABL8WPS24400
Brand: Schneider Electric
Price: 2032.8 AED
Availability: InStock

AED 2,032.80

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Power Supply

Description

Schneider Electric ABL8WPS24400 Regulated Switch Power Supply supplies DC voltage. It has a rated input voltage of 380 V at 500 V AC, a rated output current of 40 A at 24 V DC, and a power rating of 960 W. It is ideal for providing the DC voltage needed for automation devices used in industrial applications, commercial and residential such as materials handling, packaging, control, food and beverage, mining, oil and gas, and water.

Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. There is an LED diagnostic screen on the front for immediate troubleshooting. It provides a power reserve that allows it to deliver a current of 150% of its rated power for short periods and handle simultaneous inrush currents when starting a process.

Schneider Electric ABL8WPS24400 Regulated Switch Power Supply is installed on a DIN rail and is 165 mm wide. This is a power supply for industrial use, rail mounting. Complies with UL 508, CSA C22.2 No. 60950-1 standards. For this protection, the GV2ME07 thermomagnetic circuit breaker is recommended. There is an LED diagnostic screen on the front for immediate troubleshooting. The installation is on a DIN rail. Provides power to your automated systems. Designed for simple machines and applications, modular power supplies are primarily valued for their extreme compactness.

Features

It has a rated input voltage of 380 V at 500 V AC, a rated output current of 40 A at 24 V DC, and a power rating of 960 W.
Installed on a DIN rail and is 165 mm wide.

Specifications

Brand : Schneider Electric

Item Name : Power Supply

Model : ABL8WPS24400

Anti-harmonic Filter : Low-frequency Harmonic Currents

Compatibility Code : ABL8W

Connections - Terminals : Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay, screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection, screw type terminals: 4 x 0.5...4 x 10 mm², (AWG 22...AWG 8) for output connection

Depth : 160 mm

Dielectric Strength : 3500 V between input and ground, 4000 V between input and output, 500 V between output and ground

Efficiency : 92%

Height : 143 mm

Input Voltage : 380...500 V AC three-phase, terminal(s): L1, L2, L3

Input Voltage Limits : 320...550 V AC

Inrush Current : 25 A

IP Degree Of Protection : IP20 conforming to EN/IEC 60529

Marking : CE

Mounting Support : 35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail

Range Of Product : Modicon X80

Network Frequency : 50/60 Hz

Operating Altitude : 2000 m

Operating Position : Vertical

Output Coupling : Parallel, series

Output Voltage : 24 V DC

Output Voltage Limits : 24...28.8 V adjustable

Power Dissipation in W 76.8 W

Power Supply Output Current : 40 A

Power Supply Type : Regulated switch mode

Certifications : cCSAus, EAC, UL, RCM

Range Of Product : Modicon Power Supply

Rated Power in W : 960 W

Width : 166 mm

Supply : SELV conforming to EN/IEC 60950-1, SELV conforming to EN/IEC 60204-1, SELV conforming to IEC 60364-4-41

Power Factor : 0.85 at 24 V DC

Permissible Temporary Current Boost : 1.5 x In (for 4 s)

Output Protection Type : Against overload, protection technology: manual or automatic reset, against overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual or automatic reset, against undervoltage, protection technology: tripping if U < 21.6 V, thermal, protection technology: automatic reset

Status LED : 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current

Ambient Air Temperature For Operation : 50-60 °C with derating factor mounting position A < 2000 m, -25-50 °C without derating mounting position A < 2000 m

Standards : CSA C22.2 No 60950-1, UL 508, EN/IEC 62368-1

Environmental Characteristic : EMC conforming to EN 61000-6-1, EMC conforming to EN 61000-6-3, EMC conforming to EN 55024, EMC conforming to EN/IEC 61000-6-4, EMC conforming to EN/IEC 61204-3, safety conforming to EN 61204-4, safety conforming to EN/IEC 60950-1

Weight : 2.7 kg
