Schneider Electric Regulated SMPS 1 or 2-Phase 100-500V 24V 5A ABL8RPS24050
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Power Supply
Description

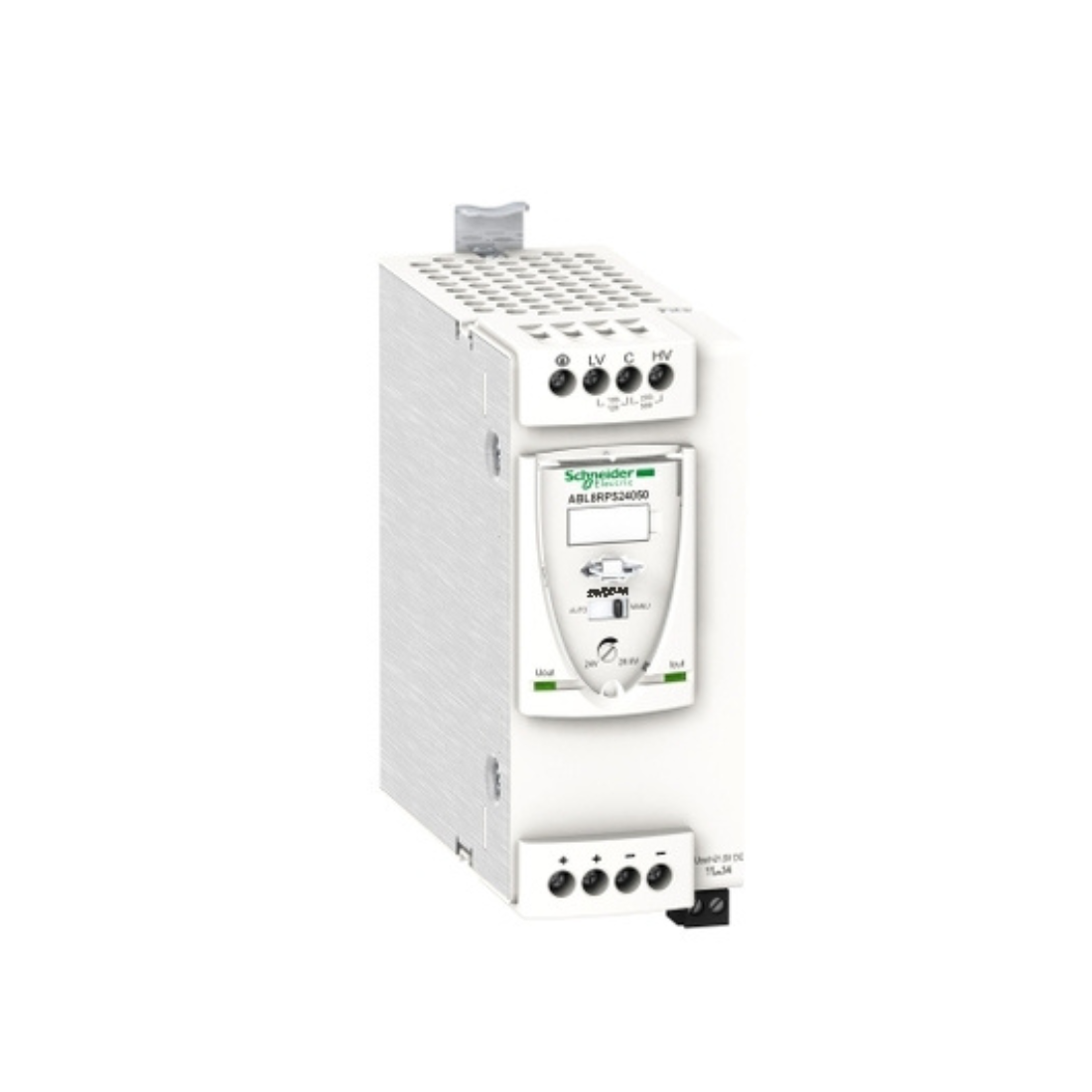

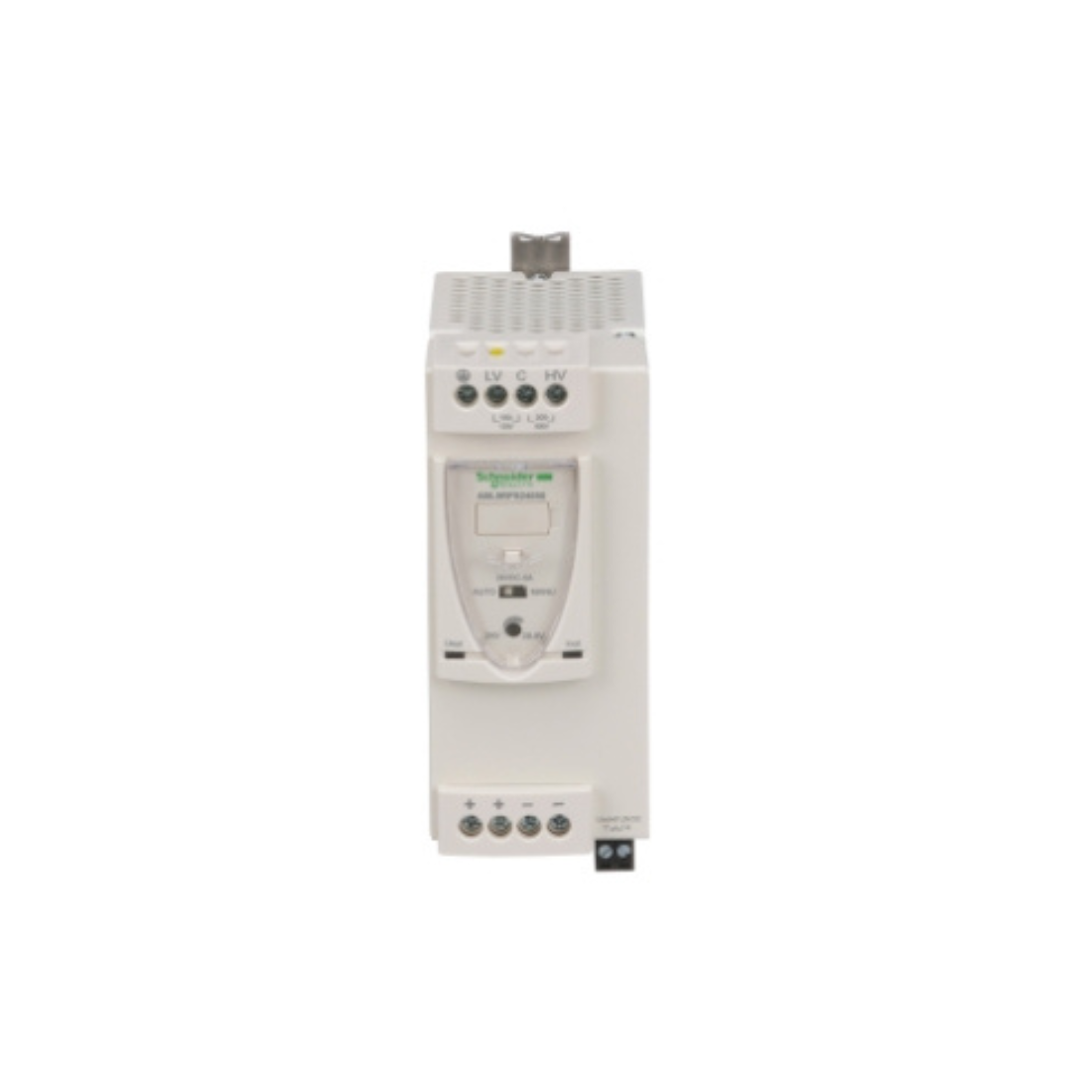

Schneider Electric ABL8RPS24050 Regulated SMPS supplies DC voltage. It has a rated input of 100 V to 500 V AC, a rated output current of 5 A at 24 V DC, and a power rating of 120 W. It is ideal for providing the DC voltage needed for automation devices used in industrial, commercial applications, and residential such as materials handling, packaging, control, food and beverage, mining, oil and gas, and water. It is also equipped with a PFC (power factor correction) filter. There is an LED diagnostic screen on the front for immediate troubleshooting.
Automatic restart allows to resolution of short-term errors and restart systems without interrupting maintenance technicians on duty. Schneider Electric ABL8RPS24050 Regulated SMPS is installed on a DIN rail and is 56 mm wide. This is a power supply for industrial use, rail mounting. Complies with UL 508, CSA C22.2 No. 60950-1 standards. For this protection, the GB2CD07, GB2CD08, GV2RT06, and GV2ME06 thermomagnetic circuit breakers are recommended. There is an LED diagnostic screen on the front for immediate troubleshooting.
The installation is on a DIN rail. Provides power to the automated systems. Schneider Electric ABL8RPS24050 Regulated SMPS designed for simple machines and applications, modular power supplies are primarily valued for their extreme compactness.
Features
- It has a rated input of 100 V to 500 V AC, a rated output current of 5 A at 24 V DC, and a power rating of 120 W.

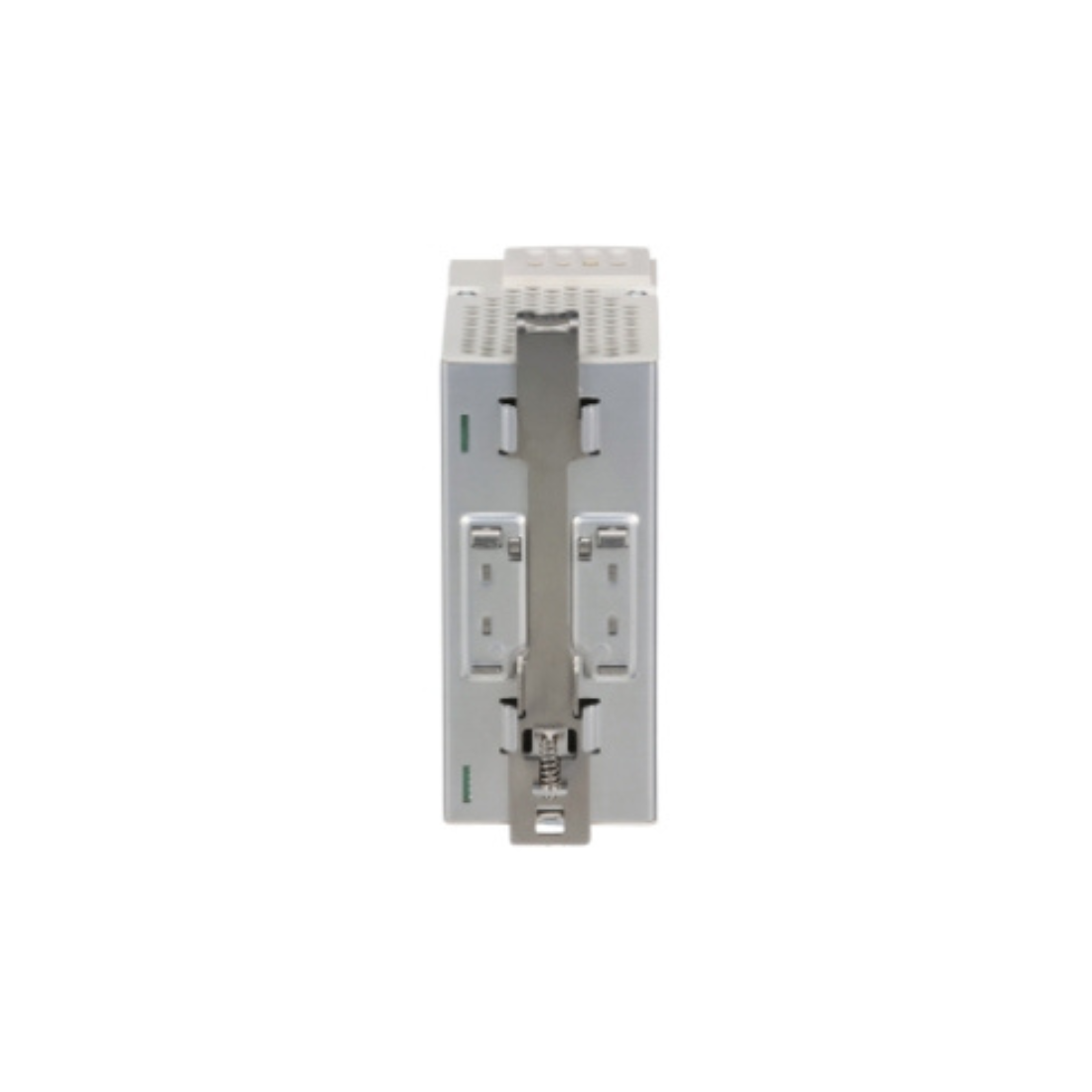

- Installed on a DIN rail and is 56 mm wide
| Brand | Schneider Electric |
| Item Name | Power Supply |
| Model | ABL8RPS24050 |
| Anti-harmonic Filter | Low-frequency Harmonic Currents |
| Compatibility Code | ABL8R |
| Connections - Terminals | Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay, screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection, screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection |
| Depth | 125 mm |
| Dielectric Strength | 3500 V with between input and ground, 4000 V with between input and output, 500 V with between output and ground |
| Efficiency | 87% |
| Height | 125 mm |
| Input Voltage | 100...120 V AC single phase, terminal(s): N-L1, 200...500 V AC phase to phase, terminal(s): L1-L2 |
| Input Voltage Limits | 85...132 V AC, 170...550 V AC |
| Inrush Current | 30A |
| IP Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Marking | CE |
| Mounting Support | 35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail |
| Operating Altitude | 2000 m |
| Operating Position | Vertical |
| Output Coupling | Parallel, series |
| Output Voltage | 24 V DC |
| Output Voltage Limits | 24...28.8 V adjustable |
| Power Dissipation in W | 15.5 W |
| Power Supply Output Current | 5 A |
| Power Supply Type | Regulated switch mode |
| Certifications | cCSAus, EAC, KC, RCM, UL |
| Range Of Product | Modicon Power Supply |
| Rated Power in W | 120 W |
| Width | 56 mm |
| Supply | SELV conforming to EN/IEC 60950-1, SELV conforming to EN/IEC 60204-1, SELV conforming to IEC 60364-4-41 |
| Power Factor | 0.51 at 240 V AC, 0.59 at 120 V AC |
| Permissible Temporary Current Boost | 1.5 x In (for 4 s) |
| Output Protection Type | Against overload, protection technology: manual or automatic reset, against overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual or automatic reset, against undervoltage, protection technology: tripping if U < 21.6 V, thermal, protection technology: automatic reset |
| Status LED | 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current |
| Ambient Air Temperature For Operation | 50-60 °C with derating factor mounting position A < 2000 m, -25-50 °C without derating mounting position A < 2000 m |
| Standards | CSA C22.2 No 60950-1, UL 508, EN/IEC 62368-1 |
| Environmental Characteristic | EMC conforming to EN 61000-6-1, EMC conforming to EN 61000-6-3, EMC conforming to EN 55024, EMC conforming to EN/IEC 61000-6-4, EMC conforming to EN/IEC 61204-3, safety conforming to EN/IEC 60950-1, safety conforming to EN/IEC 61204-3 |
| Weight | 0.7 kg |
