Name: Schneider Electric Regulated SMPS 1 or 2 Phase 100-500V 24V 3A ABL8RPS24030
Brand: Schneider Electric
Price: 508.2 AED
Availability: InStock

AED 508.20

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Power Supply

Description

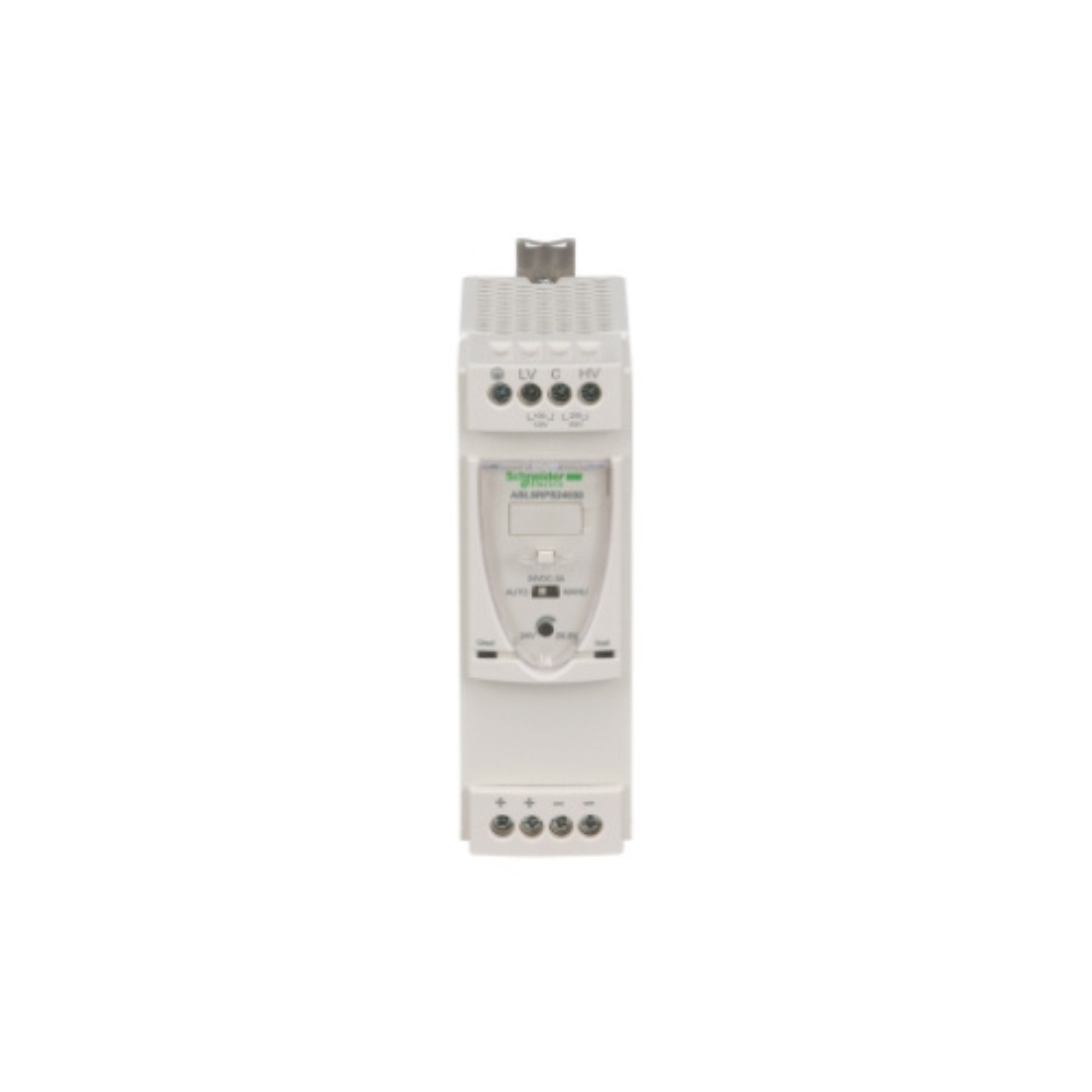

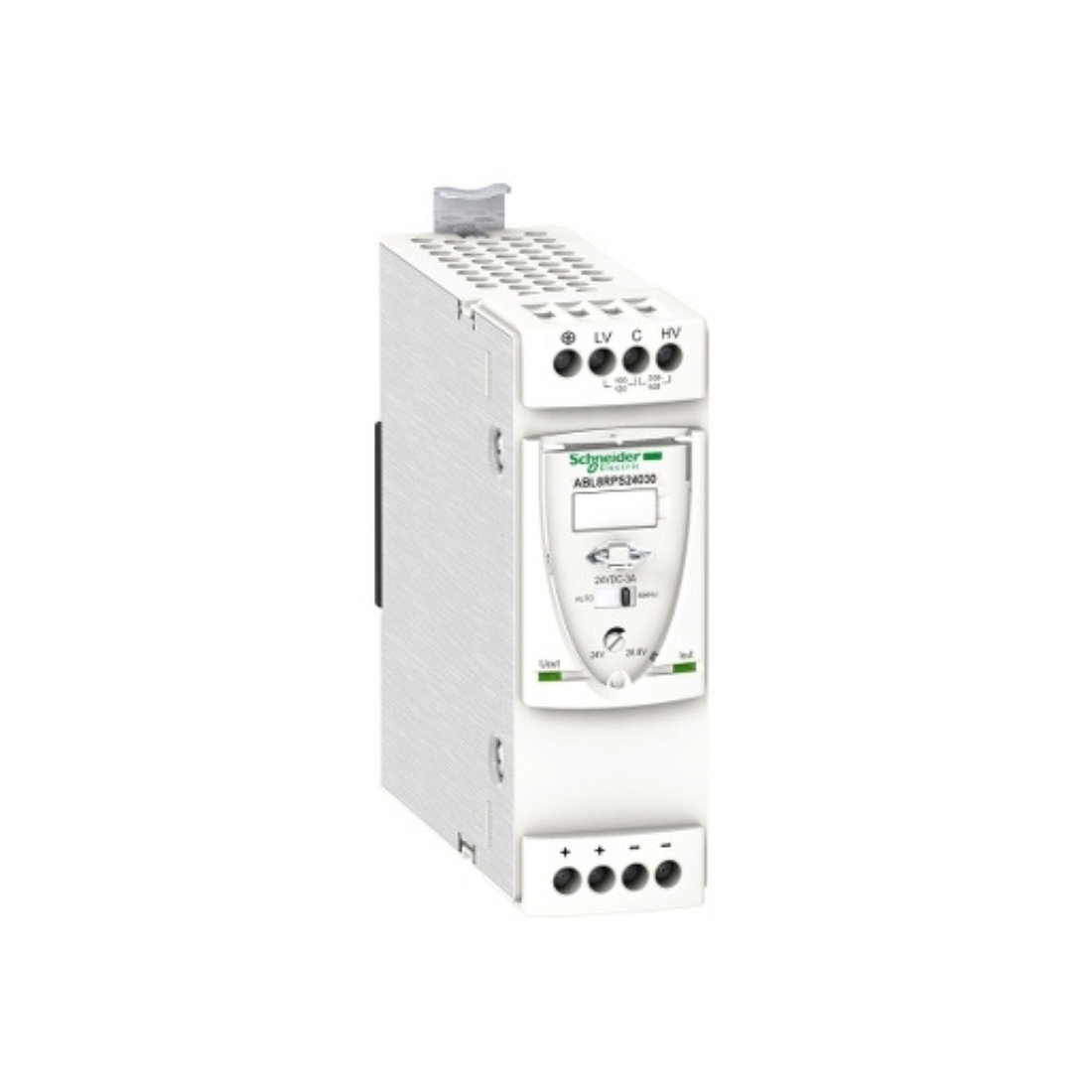

Schneider Electric ABL8RPS24030 Regulated SMPS supplies DC voltage. It has a rated input of 100 V to 500 V AC, a rated output current of 3 A at 24 V DC, and a power rating of 72 W. It is ideal for providing the DC voltage needed for automation devices used in industrial, commercial applications, and residential such as materials handling, packaging, control, food and beverage, mining, oil and gas and water. It is also equipped with a PFC (power factor correction) filter. There is an LED diagnostic screen on the front for immediate troubleshooting.

Automatic restart allows to resolution of short-term errors and restart systems without interrupting maintenance technicians on duty. Schneider Electric ABL8RPS24030 Regulated SMPS is installed on a DIN rail and is 44 mm wide. This is a power supply for industrial use, rail mounting. Complies with UL 508, CSA C22.2 No. 60950-1 standards. For this protection, the GB2CD07, GV2RT06, and GV2ME06 thermomagnetic circuit breakers are recommended. There is an LED diagnostic screen on the front for immediate troubleshooting.

The installation is on a DIN rail. Provides power to your automated systems. Designed for simple machines and applications, modular power supplies are primarily valued for their extreme compactness.

Features

It has a rated input of 100 V to 500 V AC, a rated output current of 3 A at 24 V DC, and a power rating of 72 W.
Installed on a DIN rail and is 44 mm wide.

Specifications

Brand : Schneider Electric

Item Name : Power Supply

Model : ABL8RPS24030

Anti-harmonic Filter : Low-frequency Harmonic Currents

Compatibility Code : ABL8R

Connections - Terminals : Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection, screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection

Depth : 125 mm

Dielectric Strength : 3500 V with between input and ground, 4000 V with between input and output, 500 V with between output and ground

Efficiency : 87%

Height : 125 mm

Input Voltage : 100...120 V AC single phase, terminal(s): N-L1, 200...500 V AC phase to phase, terminal(s): L1-L2

Input Voltage Limits : 170...550 V AC, 85...132 V AC

Inrush Current : 30A

IP Degree Of Protection : IP20 conforming to EN/IEC 60529

Marking : CE

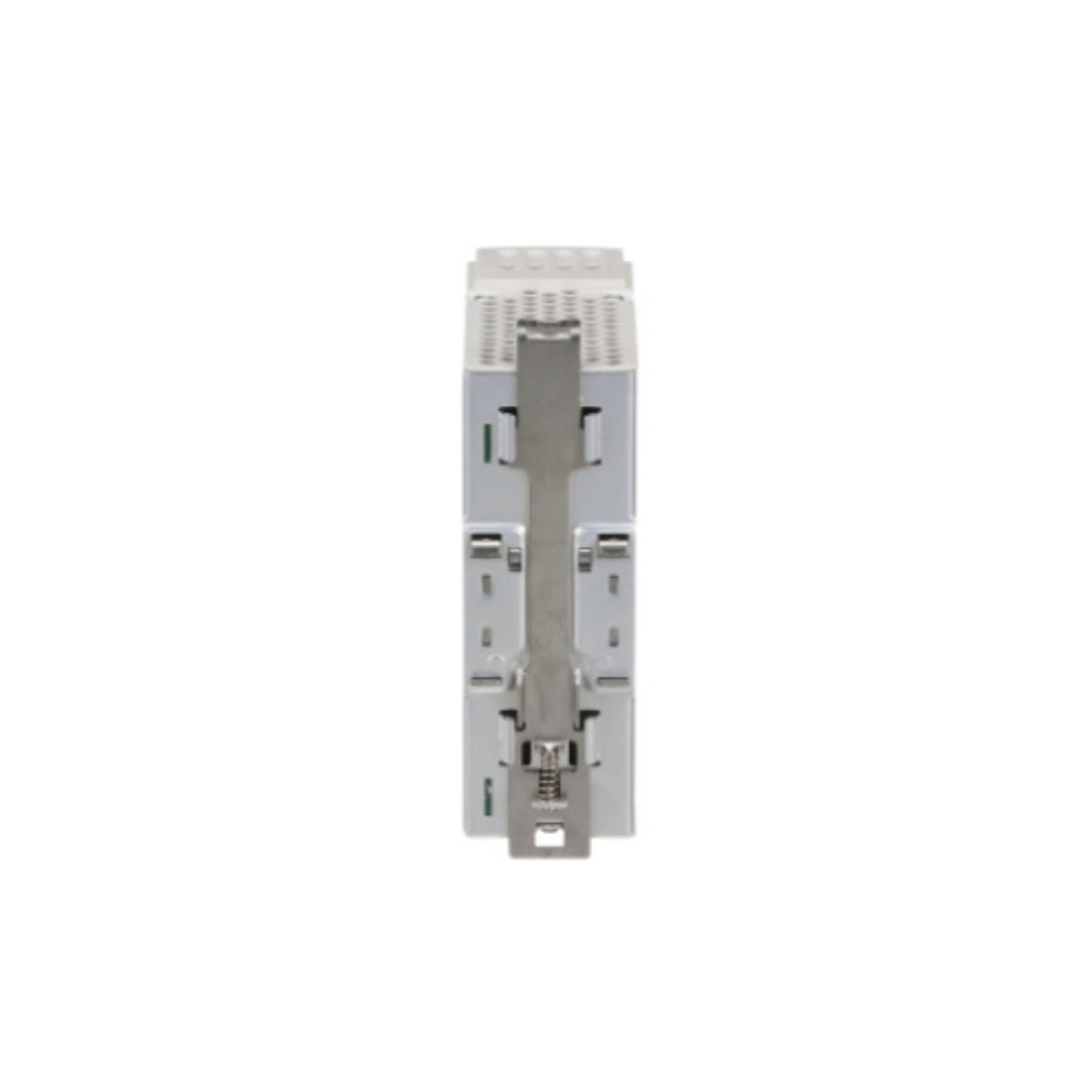

Mounting Support : 35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail

Operating Altitude : 2000 m

Operating Position : Vertical

Output Coupling : Parallel, series

Output Voltage : 24 V DC

Output Voltage Limits : 24...28.8 V adjustable

Power Dissipation in W : 7.8 W

Power Supply Output Current : 3 A

Power Supply Type : Regulated switch mode

Certifications : cCSAus, EAC, UL, RCM

Range Of Product : Modicon Power Supply

Rated Power in W : 72 W

Width : 45 mm

Supply : SELV conforming to EN/IEC 60950-1, SELV conforming to EN/IEC 60204-1, SELV conforming to IEC 60364-4-41

Power Factor : 0.51 at 240 V AC, 0.59 at 120 V AC

Permissible Temporary Current Boost : 1.5 x In (for 4 s)

Output Protection Type : Against overload, protection technology: manual or automatic reset, against overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual or automatic reset, against undervoltage, protection technology: tripping if U < 21.6 V, thermal, protection technology: automatic reset

Status LED : 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current

Ambient Air Temperature For Operation : 50-60 °C with derating factor mounting position A < 2000 m, -25-50 °C without derating mounting position A < 2000 m

Standards : CSA C22.2 No 60950-1, UL 508, EN/IEC 62368-1

Environmental Characteristic : EMC conforming to EN 61000-6-1, EMC conforming to EN 61000-6-3, EMC conforming to EN/IEC 61000-6-2, EMC conforming to EN/IEC 61000-6-4, EMC conforming to EN/IEC 61204-3, safety conforming to EN/IEC 60950-1, safety conforming to EN/IEC 61204-3

Weight : 0.3 kg
