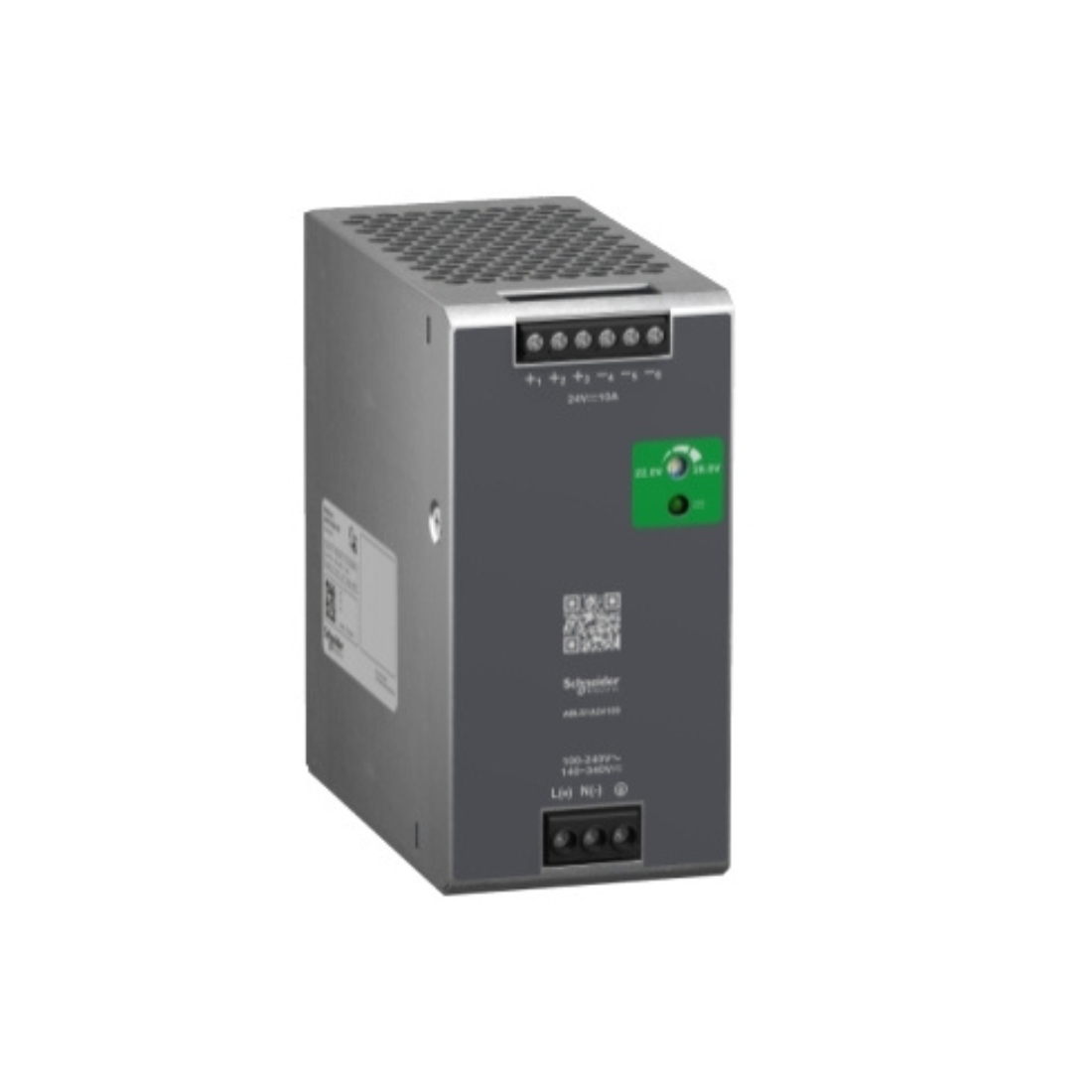

Schneider Electric Regulated Power Supply Single Phase Optimized ABLS1A24100

Name: Schneider Electric Regulated Power Supply Single Phase Optimized ABLS1A24100
Brand: Schneider Electric
Price: 626.85 AED
Availability: InStock

AED 626.85

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Regulated Power Supply

Description

Schneider Electric ABLS1A24100 Regulated Power Supply supplies DC voltage. It has a rated input of 100 V to 240 V AC and 140 V to 340 V DC, a rated output current of 10 A at 24 V DC, and a power rating of 240 W. It is ideal for providing the DC voltage needed for power equipment. automation, designed for industrial and commercial use. and residential applications such as materials handling, packaging, controls, food and beverage, mining, oil and gas, and water. Installation is carried out on Omega rail or by fixing with screws. Its width is 60 mm, its height is 123.6 mm and its depth is 117.6 mm.

Schneider Electric ABLS1A24100 Regulated Power Supply ensures overload and short circuit protection with automatic reset after removing the source of the overload/short circuit. It weighs 0.800 kg. This is a power supply for industrial use, rail mounting. Complies with EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/- 1 -201, CSAC22.2No62368-1/No61010-2-201/No61010-1 and CE certified, listed/recognized by CUL, RCM, CB scheme. The Acti9 iC60 range of miniature circuit breakers is recommended for this protection.

The protection class is curve 6A, B, or C. On the front, there is an LED that indicates the presence of DC output voltage, as well as a QR code to access the most recent technical documentation. Thanks to its library, it can be installed both in cabinets and in industrial control panels by clipping to the Omega (DIN) rail. Provides power to your automated systems. Designed for simple machines and applications, modular power supplies are primarily valued for their extreme compactness.

Features

The protection class is curve 6A, B, or C.
It has a rated input of 100 V to 240 V AC and 140 V to 340 V DC, a rated output current of 10 A at 24 V DC, and a power rating of 240 W.
Ensures overload and short circuit protection with automatic reset after removing the source of the overload/short circuit.

Specifications

Brand : Schneider Electric

Item Name : Regulated Power Supply

Model : ABLS1A24100

Connections - Terminals : Screw connection: 0.5...4 mm², (AWG 20...AWG 12) without wire end ferrule for output, screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) with wire end ferrule for output, screw connection: 0.75...4 mm², (AWG 18...AWG 12) without wire end ferrule for input, screw connection: 0.75...4 mm², (AWG 18...AWG 12) with wire end ferrule for input

Current Consumption : < 2.8 A 115 V AC, < 1.4 A 230 V AC, < 2.4 A 140 V DC

Depth : 117.6 mm

Dielectric Strength : 3000 V AC with input to output

Efficiency : 85 % at 115 V AC, 88 % at 230 V AC

Height : 123.6 mm

Holding Time : > 20 ms 115 V AC, > 20 ms 230 V AC

Input Protection Type : Integrated fuse (not interchangeable) 6.3 A, external protection (recommended) 20 A Curve B, external protection (recommended) 20 A Curve C, external protection (recommended) 6 A Curve B, external protection (recommended) 6 A Curve C

Input Voltage : 100...240 V AC single phase, 100...240 V AC 2 phases, 140...340 V DC

Input Voltage Limits : 85...264 V AC (without temperature derating) , 120...375 V DC (without temperature derating) , 85…120 V DC (with temperature derating)

Inrush Current : 30.0 A at 115 V, 60.0 A at 230 V

IP Degree Of Protection : IP20

Line And Load Regulation : < 0.5 % network 0 to 100 % load at 25 °C, < 1 % network full voltage range in line at 25 °C

MTBF : 700000 h at 25 °C, full load conforming to SR 332

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, double-profile DIN rail, panel mounting

Operating Altitude : < 5000 m

Output Coupling : Parallel, Serial

Output Voltage : 24 V DC

Output Voltage Limits : 22...28 V

Pollution Degree : 2

Power Dissipation in W : 36 W

Power Supply Type : Regulated switch mode

Certifications : CE, cUL listed, cUL recognized, RCM, CB Scheme, EAC, KC

Power Supply Output Current : 10 A

Rated Power in W : 240 W

Service Life : 10 year(s)

Shock Resistance : 100 m/s² for 11 ms

Width : 60 mm

Supply : SELV conforming to EN/IEC 60950-1, SELV conforming to EN/IEC 60204-1, SELV conforming to IEC 60364-4-41

Enclosure Material : Plastic

Electromagnetic Emission : Conducted emissions conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-4

Maximum Leakage Current : 1 mA 240 V AC

Residual Ripple : < 120 mV

Network Frequency Limits : 50-60 Hz

Variant Option : Optimized

Load Capacitance : 8000 µF

Power Factor : 0.95 at 115 V AC, 0.95 at 230 V AC

Vibration Resistance : 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6

Output Protection Type : Against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset

Status LED : 1 LED (green) output voltage

Electric Compatibility : Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2, immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2, immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4, surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5, surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5, immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8, immunity to voltage dips conforming to EN/IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to EN 61000-3-2, conducted disturbance emission conforming to EN 55016-1-2, conducted disturbance emission conforming to EN 55016-2-1

Ambient Air Temperature For Operation : -20-40 °C without derating mounting position A 115 V AC < 2000 m, -20-50 °C without derating mounting position A 230 V AC < 2000 m, 40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m, 50-70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m

Standards : EN 62368-1, EN/IEC 61204-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, UL 508, CSA C22.2 No 107.1, EN/IEC 62368-1

Environmental Characteristic : 3M4 conforming to IEC 60721-3-3

Electrical Shock Protection Class : Class I

Earthing System : TN, TT, IT

Weight : 0.55 kg
