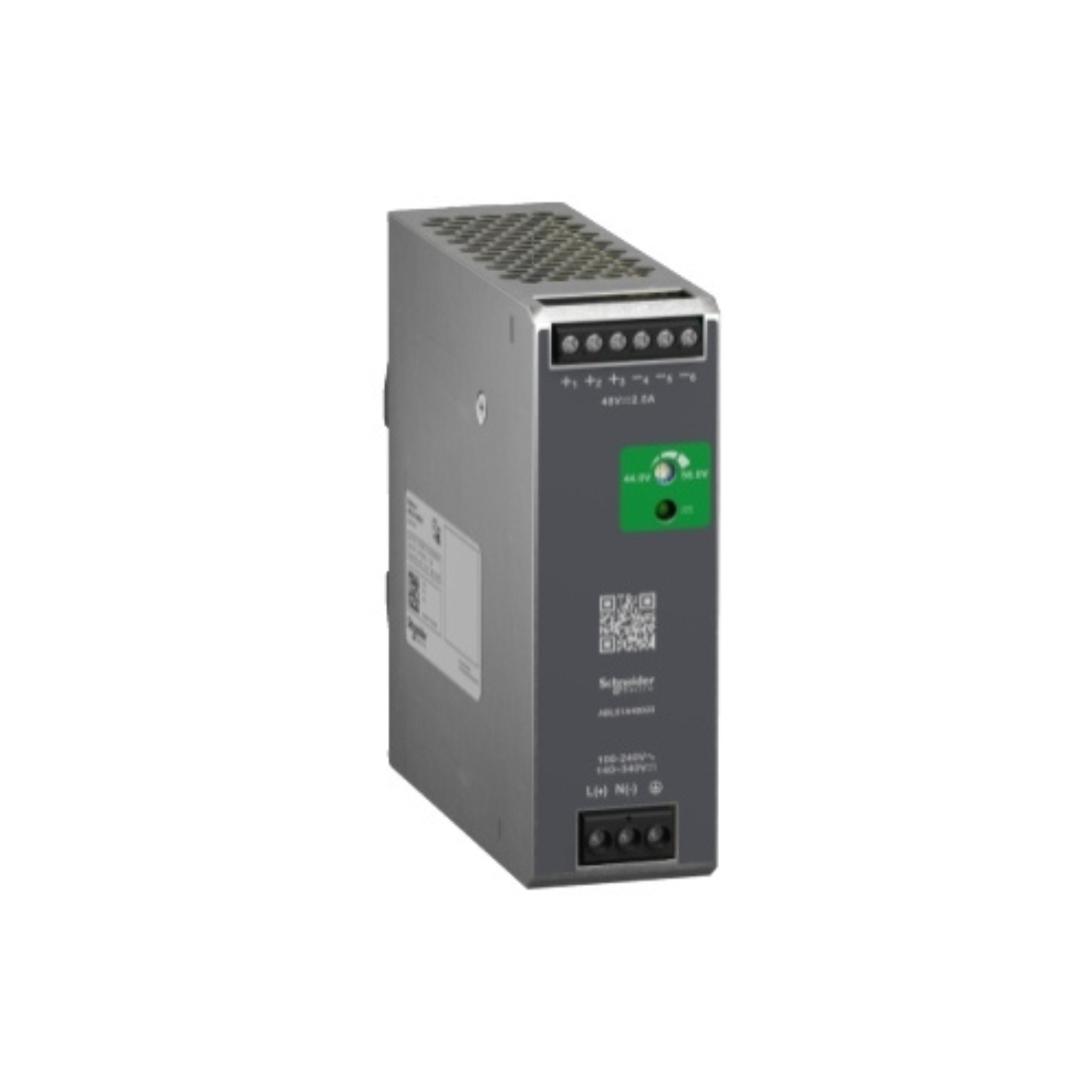

Schneider Electric Regulated Power Supply 100-240V AC 48V 2.5A Single Phase Optimized ABLS1A48025
Schneider Electric Regulated Power Supply 100-240V AC 48V 2.5A Single Phase Optimized ABLS1A48025

Schneider Electric Regulated Power Supply 100-240V AC 48V 2.5A Single Phase Optimized ABLS1A48025

Regular price AED 443.10
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Regulated Power Supply
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric ABLS1A48025 Regulated Power Supply supplies DC voltage. It has a rated input of 100 V to 240 V AC and 140 V to 340 V DC, a rated output current of 2.5 A at 48 V DC, and a power rating of 120 W. It is ideal for providing the DC voltage needed for Automation devices designed for industrial, commercial, and residential applications such as material handling, packaging, control, food and beverage, mining, oil and gas, and water. Installation is carried out on Omega rail or by fixing with screws. Its width is 40 mm, its height is 123.6 mm and its depth is 117.6 mm.

    Schneider Electric ABLS1A48025 Regulated Power Supply ensures overload and short circuit protection with automatic reset after removing the source of the overload/short circuit. This is a power supply for industrial use, rail mounting. Complies with EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/- 1 -201, CSAC22.2No62368-1/No61010-2-201/No61010-1 and CE certified, listed/recognized by CUL, RCM, CB scheme. The Acti9 iC60 range of miniature circuit breakers is recommended for this protection.

    The protection class is 13A, curve C. On the front, there is an LED that indicates the presence of DC output voltage, as well as a QR code to access the most recent technical documentation. Thanks to its book-type casing, it can be installed in both cabinets and industrial control panels by clipping to an Omega (DIN) rail. Provides power to your automated systems. Designed for simple machines and applications, modular power supplies are primarily valued for their extreme compactness.

    Features
    • Supplies DC voltage
    • It installs on an omega rail or fixed by a screw.
    • The protection class is 13A, curve C
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Regulated Power Supply

    Model : ABLS1A48025

    Connections - Terminals : Screw connection: 0.5...4 mm², (AWG 20...AWG 12) without wire end ferrule for output, screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) with wire end ferrule for output, screw connection: 0.75...4 mm², (AWG 18...AWG 12) without wire end ferrule for input, screw connection: 0.75...4 mm², (AWG 18...AWG 12) with wire end ferrule for input

    Current Consumption : < 2.5 A 115 V AC, < 1.4 A 230 V AC, < 1.3 A 140 V DC

    Depth : 117.6 mm

    Dielectric Strength : 3000 V AC with input to output

    Efficiency : 85 % at 115 V AC, 88 % at 230 V AC

    Height : 123.6 mm

    Holding Time : > 20 ms 115 V AC, > 40 ms 230 V AC

    Input Protection Type : Integrated fuse (not interchangeable) 4 A, external protection (recommended) 20 A Curve C, external protection (recommended) 13 A Curve C

    Input Voltage : 100...240 V AC single phase, 100...240 V AC 2 phases, 140...340 V DC

    Input Voltage Limits : 85...264 V AC (without temperature derating) , 120...375 V DC (without temperature derating) , 85…120 V DC (with temperature derating)

    Inrush Current : 30.0 A at 115 V, 60.0 A at 230 V

    IP Degree Of Protection : IP20

    Line And Load Regulation : < 0.5 % network 0 to 100 % load at 25 °C, < 1 % network full voltage range in line at 25 °C

    MTBF : 700000 h at 25 °C, full load conforming to SR 332

    Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, double-profile DIN rail, panel mounting

    Operating Altitude : < 5000 m

    Output Coupling : Parallel

    Output Voltage : 48 V DC

    Output Voltage Limits : 44...56 V

    Pollution Degree : 2

    Power Dissipation in W : 23 W

    Power Supply Type : Regulated switch mode

    Certifications : CE, cUL listed, cUL recognized, RCM, CB Scheme, EAC, KC

    Range Of Product : Modicon Power Supply

    Rated Power in W : 120 W

    Service Life : 10 year(s)

    Shock Resistance : 100 m/s² for 11 ms

    Width : 40 mm

    Supply : SELV conforming to EN/IEC 60950-1, SELV conforming to EN/IEC 60204-1, SELV conforming to IEC 60364-4-41

    Enclosure Material : Aluminium

    Electromagnetic Emission : Conducted emissions conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-4

    Maximum Leakage Current : 1 mA 240 V AC

    Residual Ripple : < 150 mV

    Network Frequency Limits : 50-60 Hz

    Variant Option : Optimized

    Load Capacitance : 4000 µF

    Power Factor : 0.55 at 115 V AC, 0.45 at 230 V AC

    Vibration Resistance : 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6

    Output Protection Type : Against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset

    Status LED : 1 LED (green) output voltage

    Electric Compatibility : Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2, immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2, immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4, surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5, surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5, immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8, immunity to voltage dips conforming to EN/IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to EN 61000-3-2, conducted disturbance emission conforming to EN 55016-1-2, conducted disturbance emission conforming to EN 55016-2-1

    Ambient Air Temperature For Operation : -20--10 °C with current derating of 2 % per °C mounting position A < 2000 m, -10-40 °C without derating mounting position A 115 V AC < 2000 m, -10-50 °C without derating mounting position A 230 V AC < 2000 m, 40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m, 50-70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m

    Standards : EN 62368-1, EN/IEC 61204-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, UL 508, CSA C22.2 No 107.1, EN/IEC 62368-1

    Environmental Characteristic : 3M4 conforming to IEC 60721-3-3

    Electrical Shock Protection Class : Class I

    Earthing System : TN, TT, IT

    Weight : 0.55 kg
