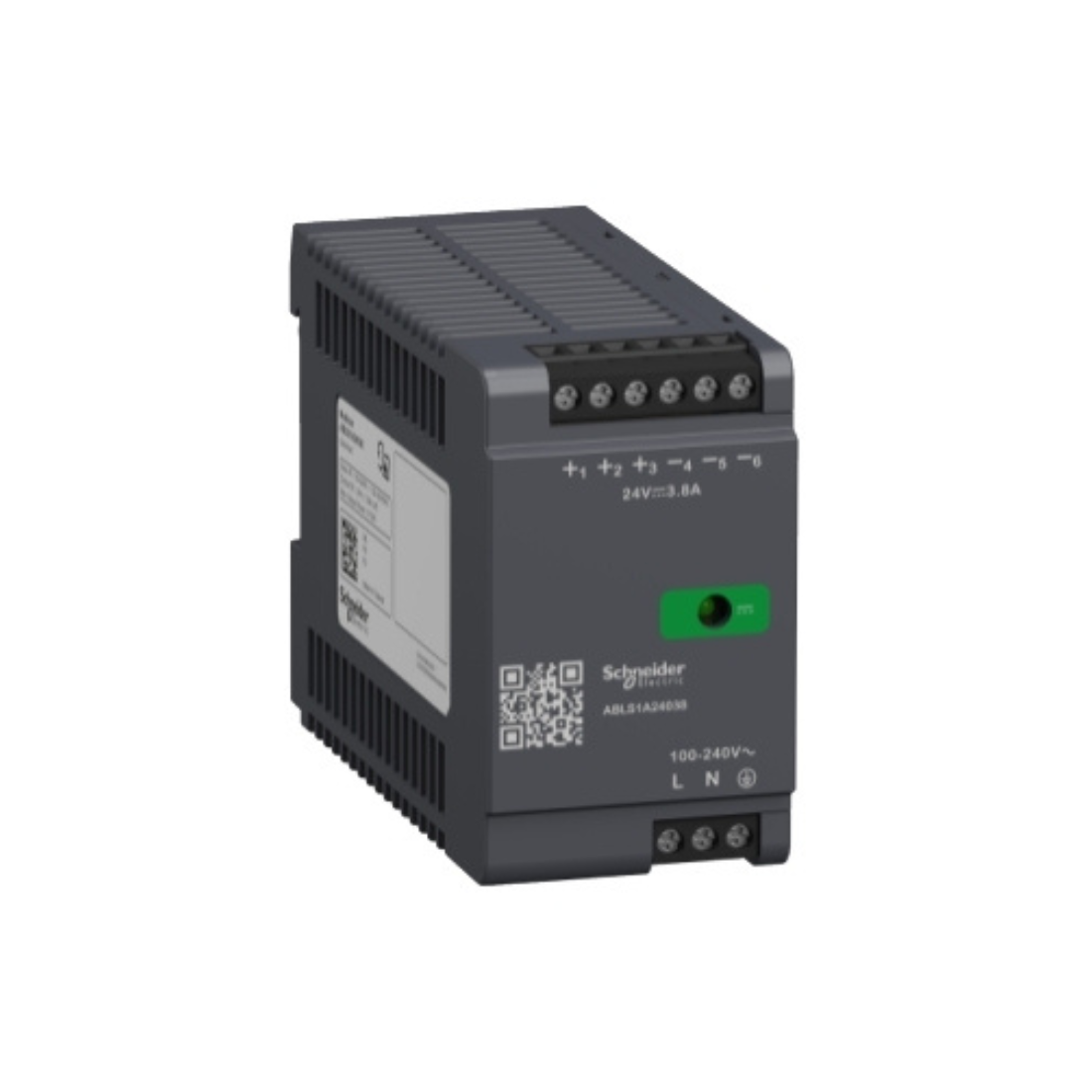

Schneider Electric Regulated Power Supply 100-240V AC 24V 3.8A Single Phase Optimized ABLS1A24038

Name: Schneider Electric Regulated Power Supply 100-240V AC 24V 3.8A Single Phase Optimized ABLS1A24038
Brand: Schneider Electric
Price: 388.5 AED
Availability: InStock

AED 388.50

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Regulated Power Supply

Description

Schneider Electric ABLS1A24038 Regulated Power Supply supplies DC voltage. It has a rated input of 100V to 240VAC, a rated output current of 3.8A at 24VDC, and a power rating of 91.2W. It is ideal for providing the DC voltage needed for automation devices used for industrial, commercial, and residential applications such as material handling, packaging, control, food and beverage, mining, oil and gas, and water. Installation is carried out on Omega rail or by fixing with screws. Its width is 45 mm, its height is 75 mm, its depth is 100 mm.

Ensures overload and short circuit protection with automatic reset after removing the source of the overload/short circuit. It weighs 0.325 kg. This is a power supply for industrial use, rail mounting. Schneider Electric ABLS1A24038 Regulated Power Supply complies with EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/- 1 -201, CSAC22.2No62368-1/No61010-2-201/No61010-1 and CE certified, listed/recognized by CUL, RCM, CB scheme. The Acti9 iC60 range of miniature circuit breakers is recommended for this protection. The protection class is 6A, curve C or 10A, curve B.

On the front, there is an LED that indicates the presence of DC output voltage, as well as a QR code to access the most recent technical documentation. Thanks to its compact housing, it can be installed in both cabinets and industrial control panels by hooking it to an Omega (DIN) rail. Provides power to your automated systems. Designed for simple machines and applications, modular power supplies are primarily valued for their extreme compactness.

Features

Bring energy to the automated systems
Designed for simple machines or applications, and appreciated for their extreme compactness
Integrated overload, short-circuit, overvoltage, and Undervoltage protection
Wide input voltage range
The high degree of output voltage stability

Specifications

Brand : Schneider Electric

Item Name : Regulated Power Supply

Model : ABLS1A24038

Connections - Terminals : Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) for input/output

Current Consumption : < 1.2 A 115 V AC, < 0.6 A 230 V AC

Depth : 100 mm

Dielectric Strength : 3000 V AC with input to output

Efficiency : 87 % at 115 V AC, 89 % at 230 V AC

Height : 75 mm

Holding Time : > 20 ms 100 V AC, > 50 ms 230 V AC

Input Protection Type : Integrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve C, external protection (recommended) 10 A Curve B, external protection (recommended) 6 A Curve C

Input Voltage : 100...240 V AC single phase, 100...240 V AC 2 phases

Input Voltage Limits : 85...264 V AC

Inrush Current : 45.0 A at 115 V, 70.0 A at 230 V

IP Degree Of Protection : IP20

Line And Load Regulation : < 1 % network 0 to 100 % load at 25 °C, < 2 % network full voltage range in line at 25 °C

MTBF : 1500000 h at 25 °C, full load conforming to SR 332, 600000 h at 55 °C, 80 % load conforming to SR 332

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, double-profile DIN rail, panel mounting

Operating Altitude : < 2000 m

Output Coupling : Serial

Output Voltage : 24 V DC

Output Voltage Limits : 24 V

Pollution Degree : 2

Power Dissipation in W : 13 W

Power Supply Output Current : 3.8 A

Power Supply Type : Regulated switch mode

Certifications : CE, cUL listed, cUL recognized, RCM, CB Scheme, EAC, KC, NEC: class 2

Rated Power in W : 91.2 W

Range Of Product : Modicon Power Supply

Service Life : 10 year(s)

Shock Resistance : 100 m/s² for 11 ms

Width : 45 mm

Supply : SELV conforming to EN/IEC 60950-1, SELV conforming to EN/IEC 60204-1, SELV conforming to IEC 60364-4-41

Enclosure Material : Plastic

Electromagnetic Emission : Conducted emissions conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-4

Maximum Leakage Current : 1 mA 240 V AC

Residual Ripple : < 75 mV

Network Frequency Limits : 50-60 Hz

Variant Option : Optimized

Load Capacitance : 3000 µF

Power Factor : 0.90 at 115 V AC, 0.85 at 230 V AC

Vibration Resistance : 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6

Output Protection Type : Against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset

Status LED : 1 LED (green) output voltage

Electric Compatibility : Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2, immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2, immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4, surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5, surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5, immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8, immunity to voltage dips conforming to EN/IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to EN 61000-3-2, conducted disturbance emission conforming to EN 55016-1-2, conducted disturbance emission conforming to EN 55016-2-1

Ambient Air Temperature For Operation : -20--10 °C with current derating of 2 % per °C mounting position A < 2000 m, -10-55 °C without derating mounting position A < 2000 m, 55-70 °C with current derating of 3.33 % per °C mounting position A < 2000 m

Standards : EN 62368-1, EN/IEC 61204-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, UL 508, CSA C22.2 No 107.1, EN/IEC 62368-1

Environmental Characteristic : 3M4 conforming to IEC 60721-3-3

Electrical Shock Protection Class : Class I

Earthing System : TN, TT, IT

Weight : 0.325 kg
