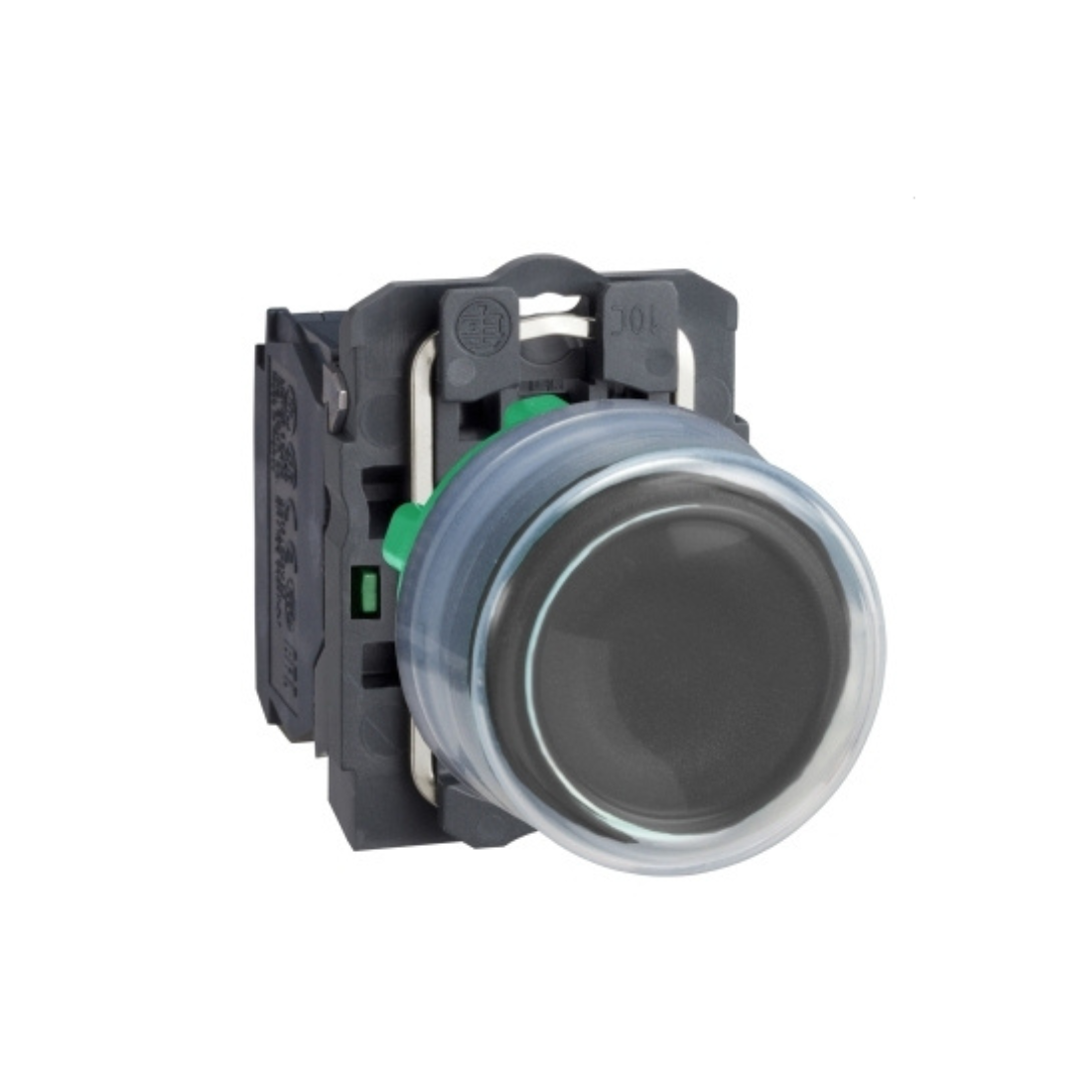

Schneider Electric Push Button Plastic Projecting Black Ø22 Spring Return Booted Unmarked 1 NO XB5AP21
AED 44.10
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Push Button
Collections
Description
Schneider Electric XB5AP21 Black Projecting Push Button operates with a spring-loaded push/return mechanism and uses screw terminals. This silicone coated snap closure provides a simple solution to meet hygiene requirements in the food and beverage, healthcare and pharmaceutical industries. Easily installs into standard 22mm diameter cutouts and connects with simple screw clamp connections.
Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.
Features
- Spring-loaded push/return mechanism.
- Ideal for operation in harsh environments
- It is shock, dust, water and vibration proof
| Brand | Schneider Electric |
| Item Name | Push-Button |
| Model | XB5AP21 |
| Conventional Free Air Thermal Current | 10 A conforming to EN/IEC 60947-5-1 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Rated Impulse Withstand | 6 kV conforming to EN/IEC 60947-1 |
| Bezel Material | Plastic, Dark grey plastic |
| Cap/Operator Or Lens Color | Black |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| Depth | 61 mm |
| Electrical Reliability | λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Fixing Collar Material | Plastic |
| Height | 42 mm |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Black projecting, unmarked |
| Positive Opening | Without |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Certifications | BV, CSA, LROS (Lloyds register of shipping), DNV, RINA, GL, UL listed |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Signalling Type | Steady |
| Terminals Description | (13-14)NO |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Width | 30 mm |
| Contacts Type And Composition | 1 NO |
| Type of Operator | Spring Return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 1 |
| Operator Additional Information | Clear boot |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts Usage | Standard contacts |
| GCR BRIDGE | XB5APCUST01 |
| Operating Force | 3.8 N NO changing electrical state |
| Operating Travel | 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | UL 508, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1 |
| Compatibility | Not compatible with legend holder |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Device Presentation | Complete product |
| Electrical Durability | 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C, 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C, 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C |
| Weight | 0.039 kg |
