Schneider Electric Processor Module M340 Max 1024 Discrete and 256 Analog I/O Modbus Ethernet BMXP342020

Name: Schneider Electric Processor Module M340 Max 1024 Discrete and 256 Analog I/O Modbus Ethernet BMXP342020
Brand: Schneider Electric
Price: 5090.47 AED
Availability: InStock

AED 5,090.47

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Processor Module

Description

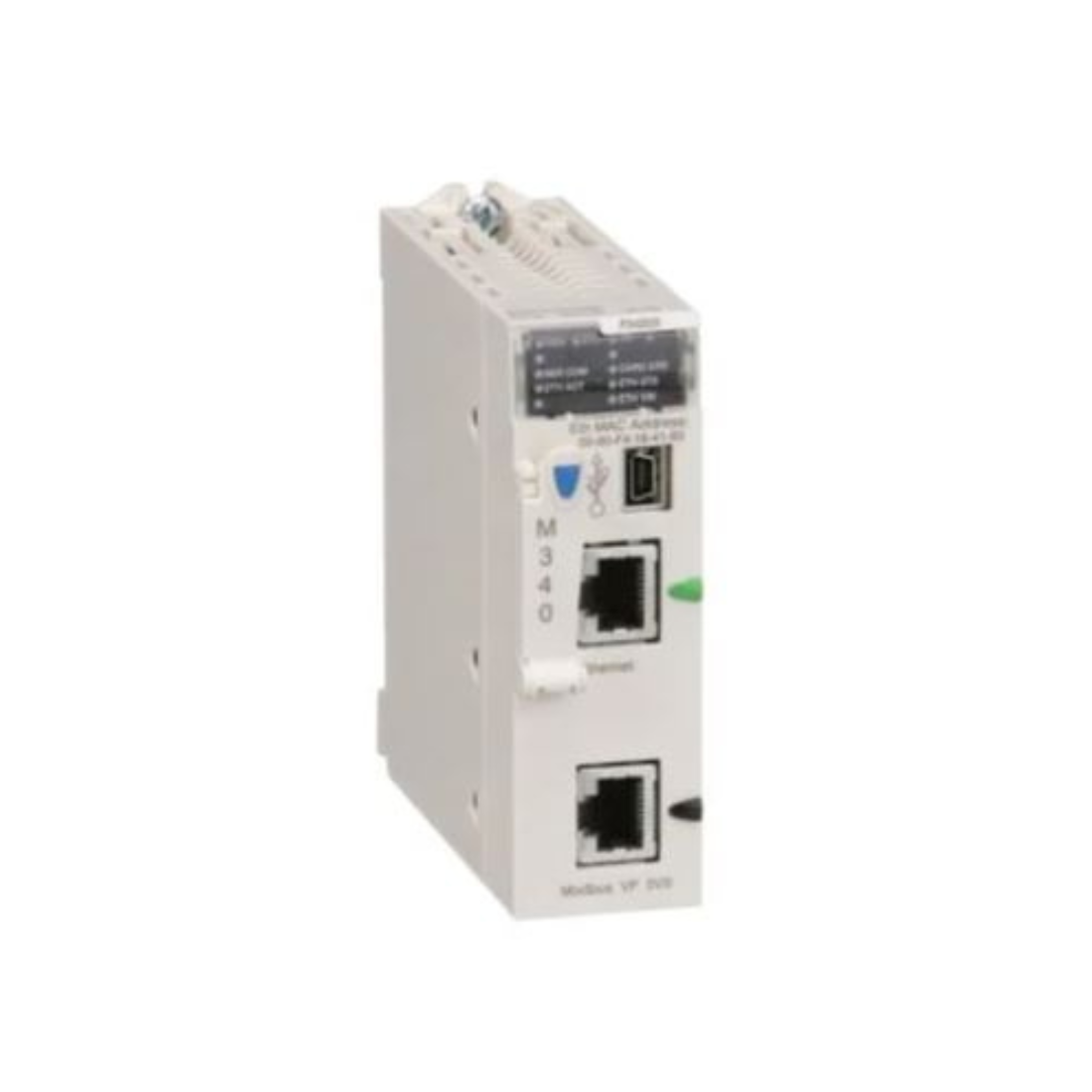

Schneider Electric BMXP342020 Processor Module is part of the Modicon M340 series, a range of programmable automation controllers (PACs). It allows a maximum of 4 racks, 1024 I/O, and a storage capacity of 4096 KB. It has a security screw on the front to lock the module in its slot, an indicator block with 8 LEDs, a mini-B USB port for a programming terminal, and a slot with its flash memory card. It also has an RJ45 port for connection to the Modbus/TCP Ethernet network and an RJ45 port for Modbus serial connection or connection in character mode (RS 232C/RS 485, 2 wires, not isolated).

This processor comes standard with an SD (Secure Digital) flash memory card intended for backing up the two memory areas in the internal RAM of the processor module, the program area, the symbols and comments area, and the constants area. Data backup is automatically performed by mirroring when the PLC is powered off. Data recovery after network restoration is also transparent to the user. It weighs 0.205 kg.

Schneider Electric BMXP342020 Processor Module is compatible with Modicon M340 programmable logic controllers (PLC). Delivered in 2 packages (PCE and SO2 types). Modicon M340 has a compact design and offers flexibility and integrated features in a small package. At the heart of the process, it offers you plug-and-work solutions with Schneider Electric and third-party devices.

Features

It allows a maximum of 4 racks, 1024 I/O, and a storage capacity of 4096 KB.
RJ45 port for connection to the Modbus/TCP Ethernet network
It has a security screw on the front to lock the module in its slot

Specifications

Brand : Schneider Electric

Item Name : Processor Module

Model : BMXP342020

Current Consumption : 95 mA at 24 V DC

Bus Length : 0-10 m serial link non isolated character mode segment, 0-10 m serial link non isolated Modbus segment, 0-1000 m serial link isolated character mode segment, 0-1000 m serial link isolated Modbus segment, 0-15 m character mode point-to-point, 0-15 m Modbus point-to-point

Certifications : CE, UL, CSA, RCM, EAC, Merchant Navy

Protective Treatment : TC

Range Of Product : Modicon M340 automation platform

Relative Humidity : 10-95 % without condensation

Supply : Internal power supply via rack

Discrete Input Current : 3.5 mA

Current State 1 Guaranteed : >= 2 mA

Memory Description : Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096 kB, internal RAM 256 kB data, internal RAM 3584 kB program constants and symbols, supplied memory card (BMXRMS008MP) activation of standard web server, class B10

Number Of Slots : 11

Application Structure : 1 Cyclic/periodic master task, 1 periodic fast task, no auxiliary task, 64 event tasks

Port Ethernet : 10BASE-T/100BASE-TX

Number Of Addresses : 0-248 for character mode, 0-248 for Modbus

Communication Service : Bandwidth management, Ethernet TCP/IP, Data Editor, Ethernet TCP/IP, Modbus TCP messaging, Ethernet TCP/IP, Rack Viewer, Ethernet TCP/IP, SNMP network administrator, Ethernet TCP/IP

Execution Time Per Instruction : 0.12 µs Boolean, 0.17 µs double-length words, 0.25 µs single-length words, 1.16 µs floating points

Maximum Size Of Object Areas : 256 kB unlocated internal data, 32634 %Mi located internal bits

Concept : Transparent Ready, CANopen

Communication Module Processor Capacity : 2 Ethernet communication module, 4 AS-Interface module

Requests : 1 K data bytes per request character mode, 252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus

Default Size Of Object Areas : 1024 %MWi internal words located internal data, 256 %KWi constant words located internal data, 512 %Mi located internal bits

System Overhead : 0.13 ms for fast task, 0.7 ms for master task

Analogue I/O Processor Capacity : 256 I/O multi-rack configuration, 66 I/O single-rack configuration

Control Parameter : One CRC on each frame (RTU) Modbus, one LRC on each frame (ASCII) character mode, one LRC on each frame (ASCII) Modbus

Monitoring : Diagnostic Counters Modbus, event counters Modbus

Number Of Devices Per Segment : 0-32 (character mode), 0-32 (Modbus)

Number Of Racks : 4

Maximum Tap Links Length : <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated Modbus segment

Number Of Devices : 2 point-to-point character mode, 2 point-to-point Modbus

Number Of Instructions Per ms : 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 8.1 Kinst/ms 100 % Boolean

Control Channels : Programmable loops

Number Of Application Specific Channel : 36

Discrete I/O Processor Capacity : 1024 I/O multi-rack configuration, 704 I/O single-rack configuration

Status LED : 1 LED (green) activity on Ethernet network (ETH ACT), 1 LED (green) processor running (RUN), 1 LED (green) status of Ethernet network (ETH STS), 1 LED (red) data rate (ETH 100), 1 LED (red) I/O module fault (I/O), 1 LED (red) memory card fault (CARD ERR), 1 LED (red) processor or system fault (ERR), 1 LED (yellow) activity on Modbus (SER COM)

Ambient Air Temperature For Operation : 0-60 °C

Standards : EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G

Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
