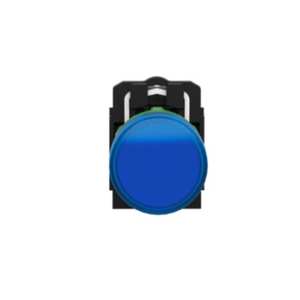

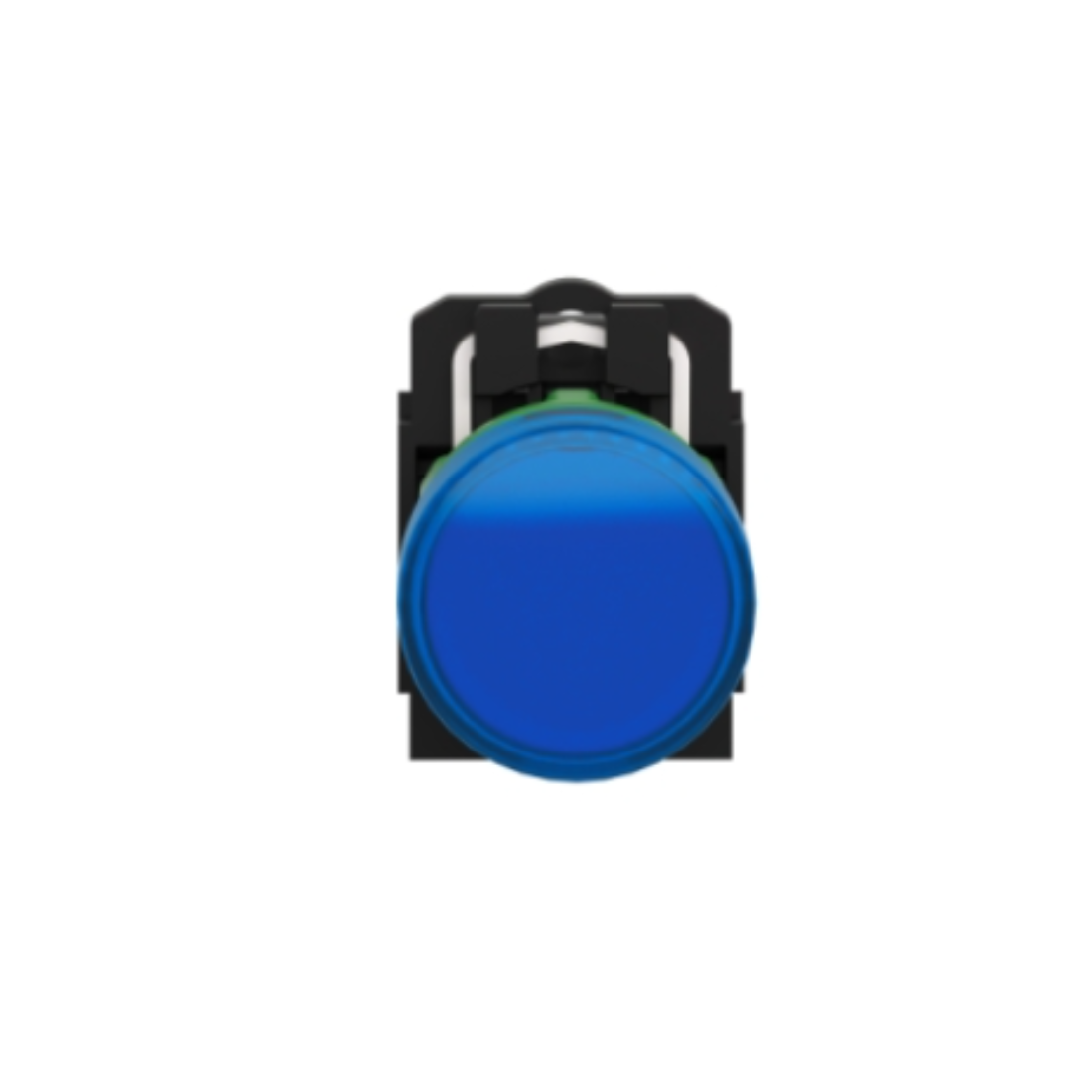

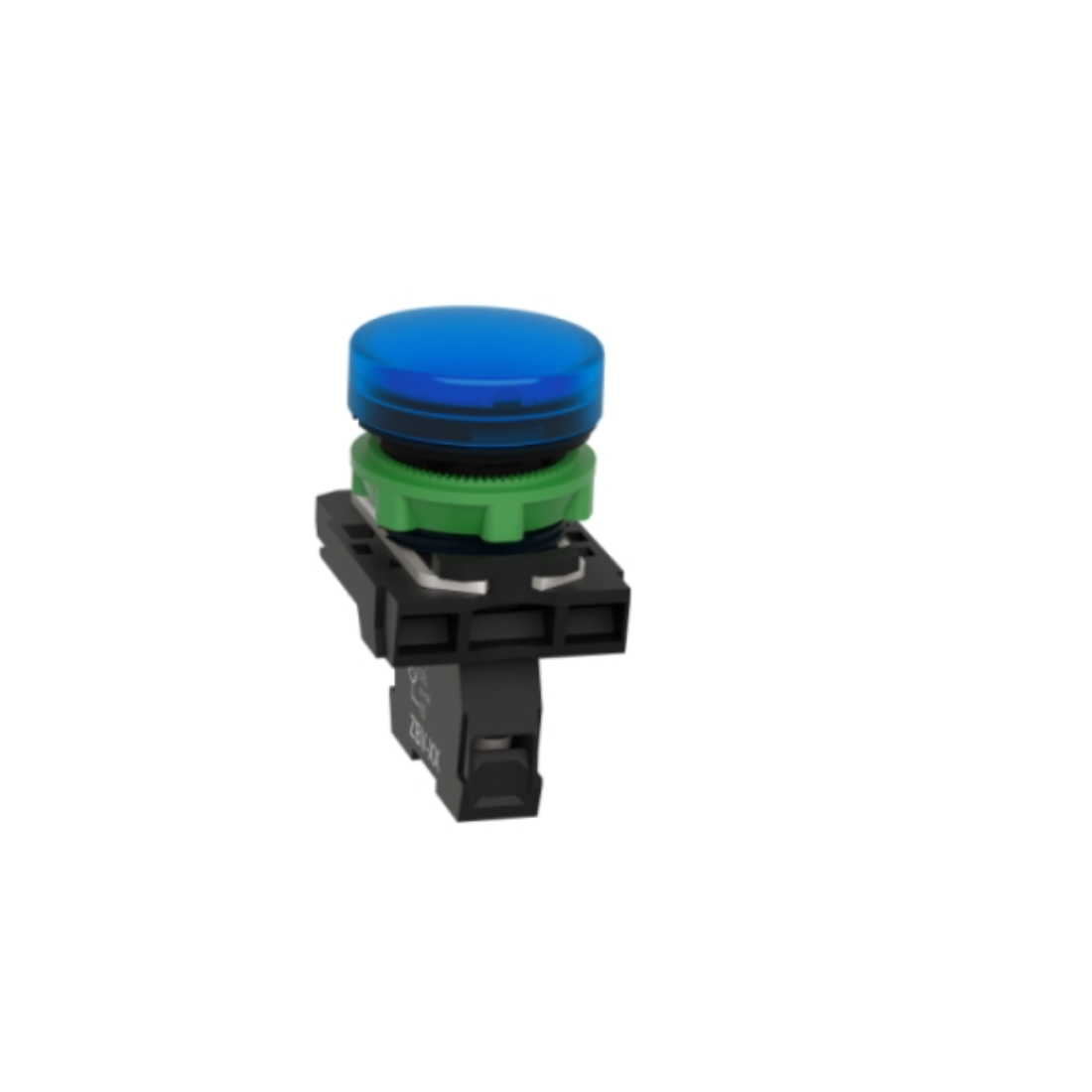

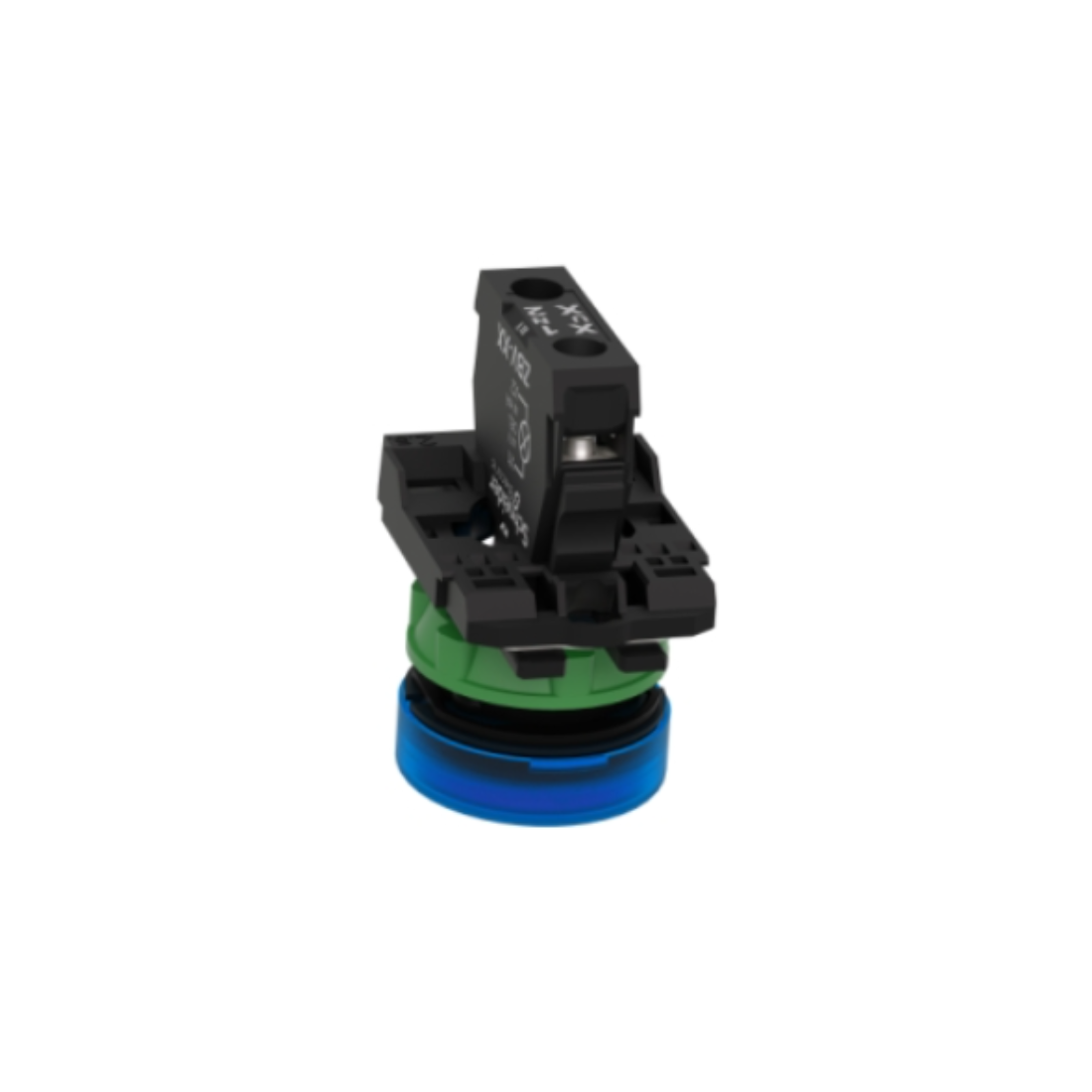

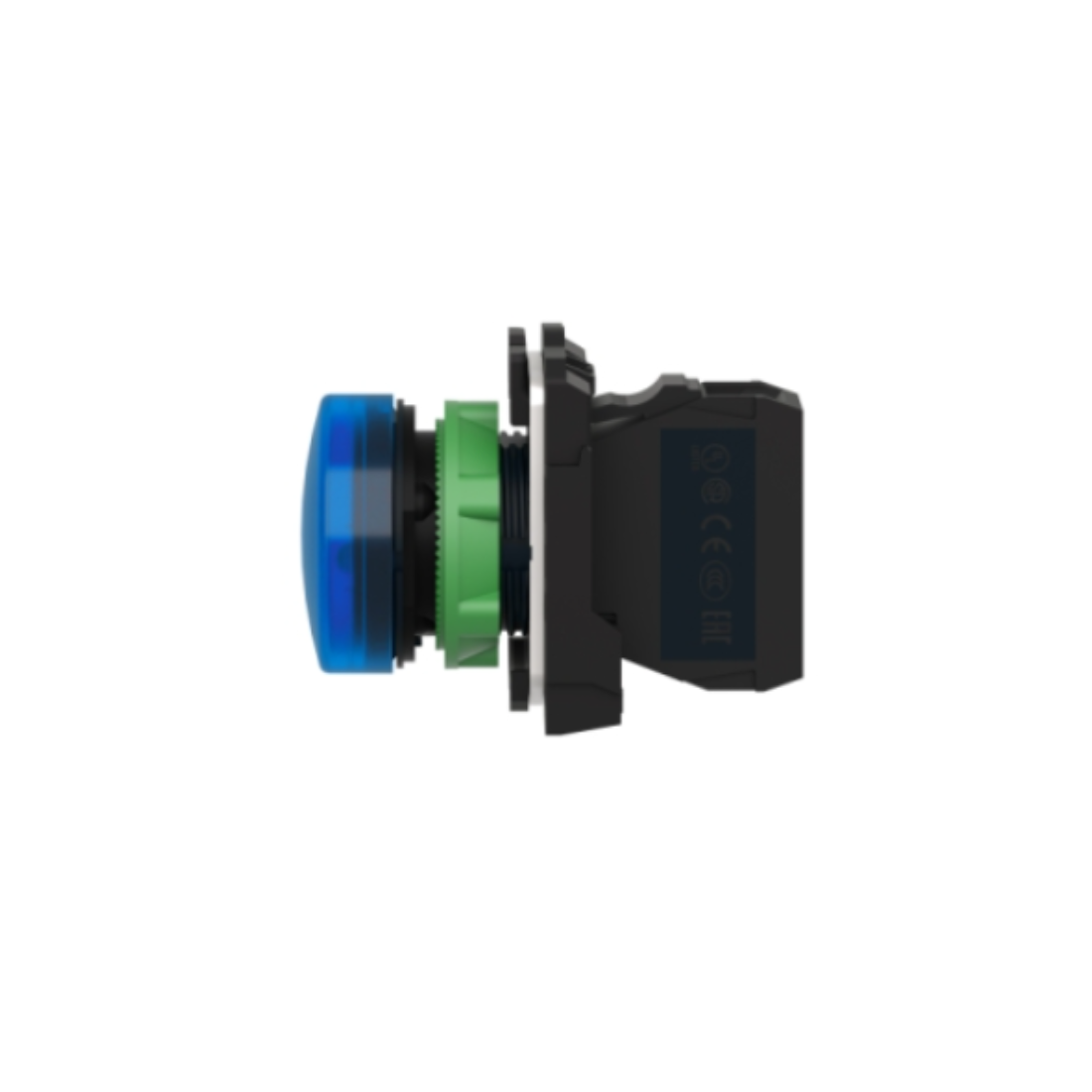

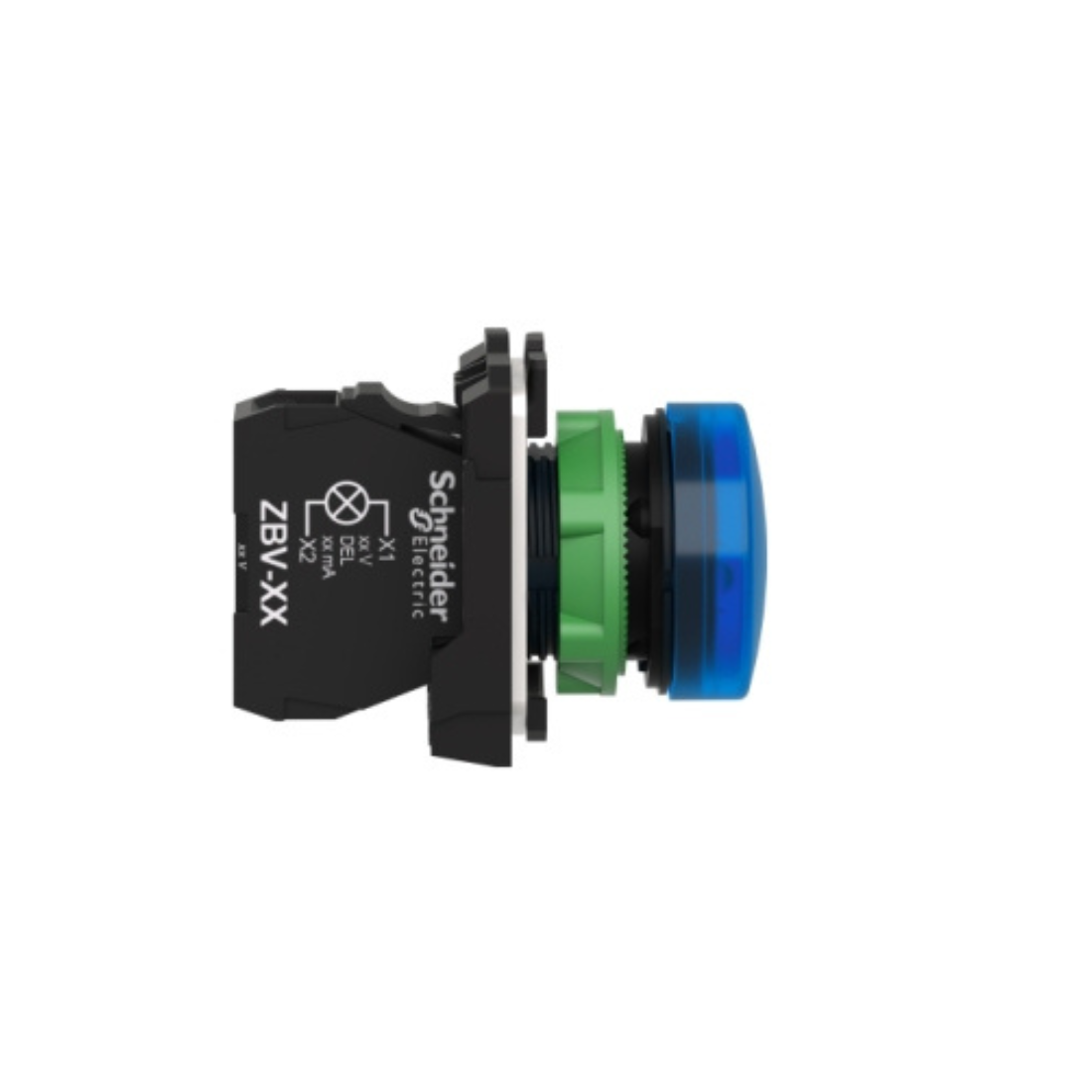

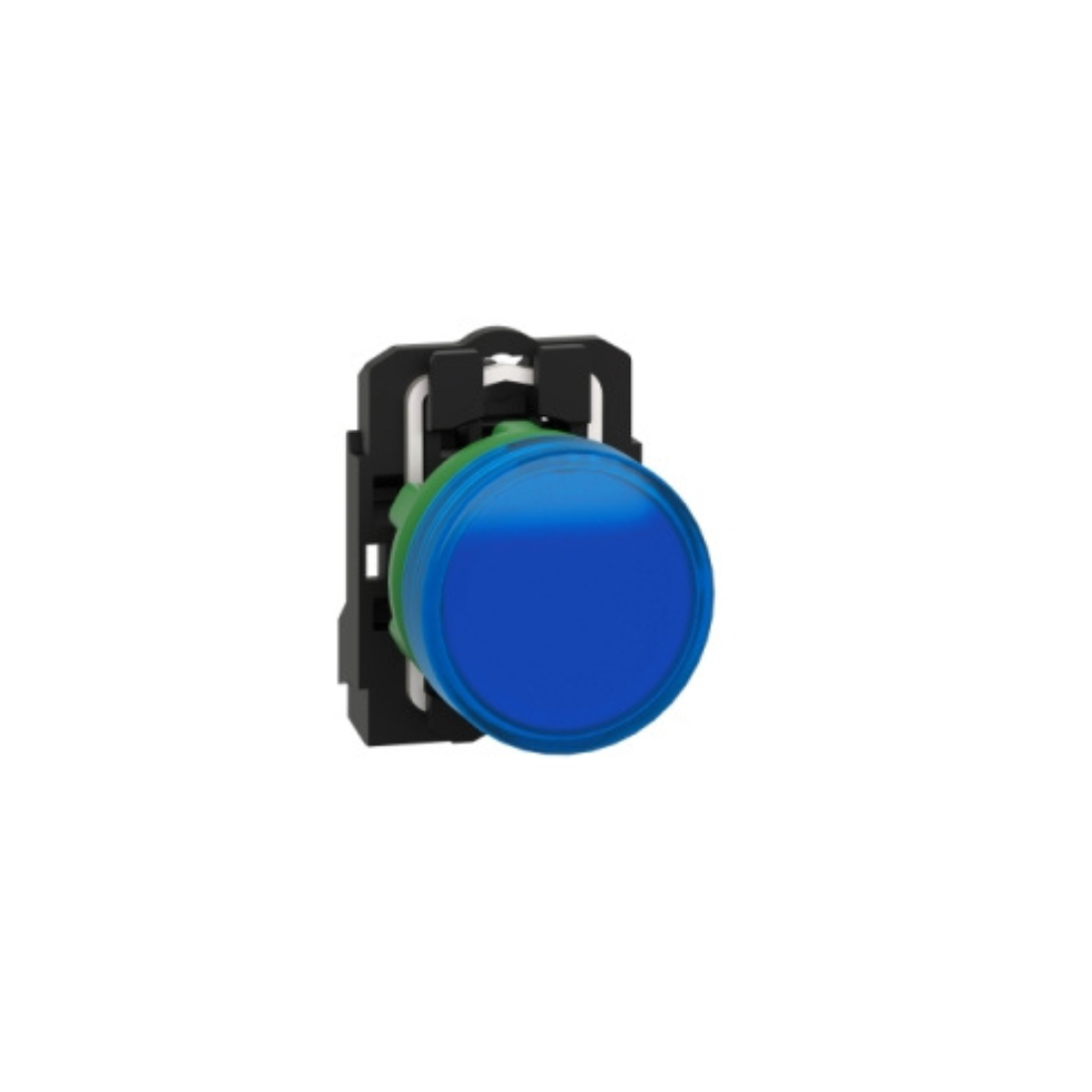

Schneider Electric Pilot Light Plastic Blue Ø22 Plain Lens with Integral LED 110-120V AC XB5AVG6

Schneider Electric Pilot Light Plastic Blue Ø22 Plain Lens with Integral LED 110-120V AC XB5AVG6

Name: Schneider Electric Pilot Light Plastic Blue Ø22 Plain Lens with Integral LED 110-120V AC XB5AVG6
Brand: Schneider Electric
Price: 44.1 AED
Availability: InStock

AED 44.10

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Pilot Light

Description

Schneider Electric XB5AVG6 Blue Pilot Light is supplied with 110V to 120V AC, uses an integral LED and screw clamp terminals. This maintenance-free indicator light provides a bright visualization of the process and machine operations. Easily installs into standard 22mm diameter cutouts and connects with simple screw terminal connections.

Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar. Thanks to IP66 / IP67 / IP69 / IP69K, it is resistant to impacts, dust, water and vibrations, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

Features

Universal LED block to be used for all colors
Improved color intensity and brightness
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
A wide choice of contact blocks for general purposes or specific applications (low current, standard)

Specifications

Brand : Schneider Electric

Item Name : Pilot Light

Model : XB5AVG6

Resistance to Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 4 kV conforming to EN 60947-1

Rated Supply Voltage : 110...120 V

Bezel Material : Dark Grey Plastic

Bulb Base : Integral LED

Cap/Operator Or Lens Color : Blue

Compatibility Code : XB5

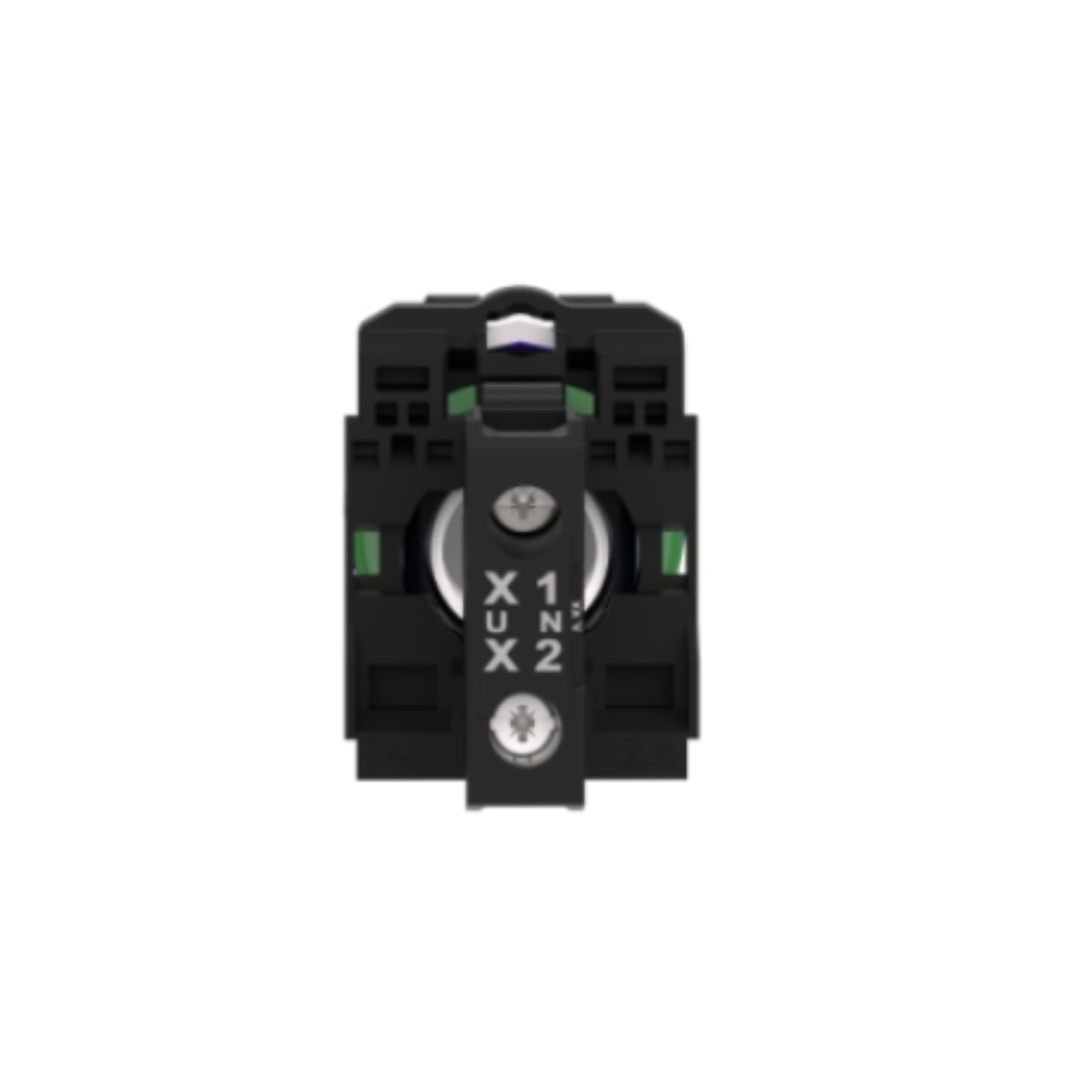

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Current Consumption : 14 mA

Depth : 54 mm

Fixing Collar Material : Plastic

Height : 42 mm

IK Degree Of Protection : IK05 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653

Mounting Diameter : 22 mm

Light Source : Universal LED

Overvoltage Category : Class II conforming to IEC 60536

Protective Treatment : TH

Range Of Product : Harmony XB5

Sale Per Indivisible Quantity : 1

Shape of Signaling Unit Head : Round

Service Life : 100000 h at rated voltage and 25 °C

Shock Resistance : 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Supply Voltage Limits : 100-132 V AC

Terminals Description : ISO n°1 (X1-X2)PL

Width : 30 mm

Resistance to Electromagnetic : Fields 10 V/m conforming to IEC 61000-4-3

Operator Additional Information : With plain lens

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : 1

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : XB5AVCUST04

Light Source Color : Blue

Resistance to Fast Transients : 2 kV conforming to IEC 61000-4-4

Electromagnetic Emission : Class B conforming to IEC 55011

Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Electromagnetic Compatibility : Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011

Ambient Air Temperature For Operation : -40-55 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, JIS C8201-1

Device Presentation : Complete product

Weight : 0.038 kg
