Schneider Electric Pieno Switched with Fluorescent Locator 10AX 250V 1 Way 4 Gang E8234L1F_AS_G1 4G - Aluminium Silver
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description

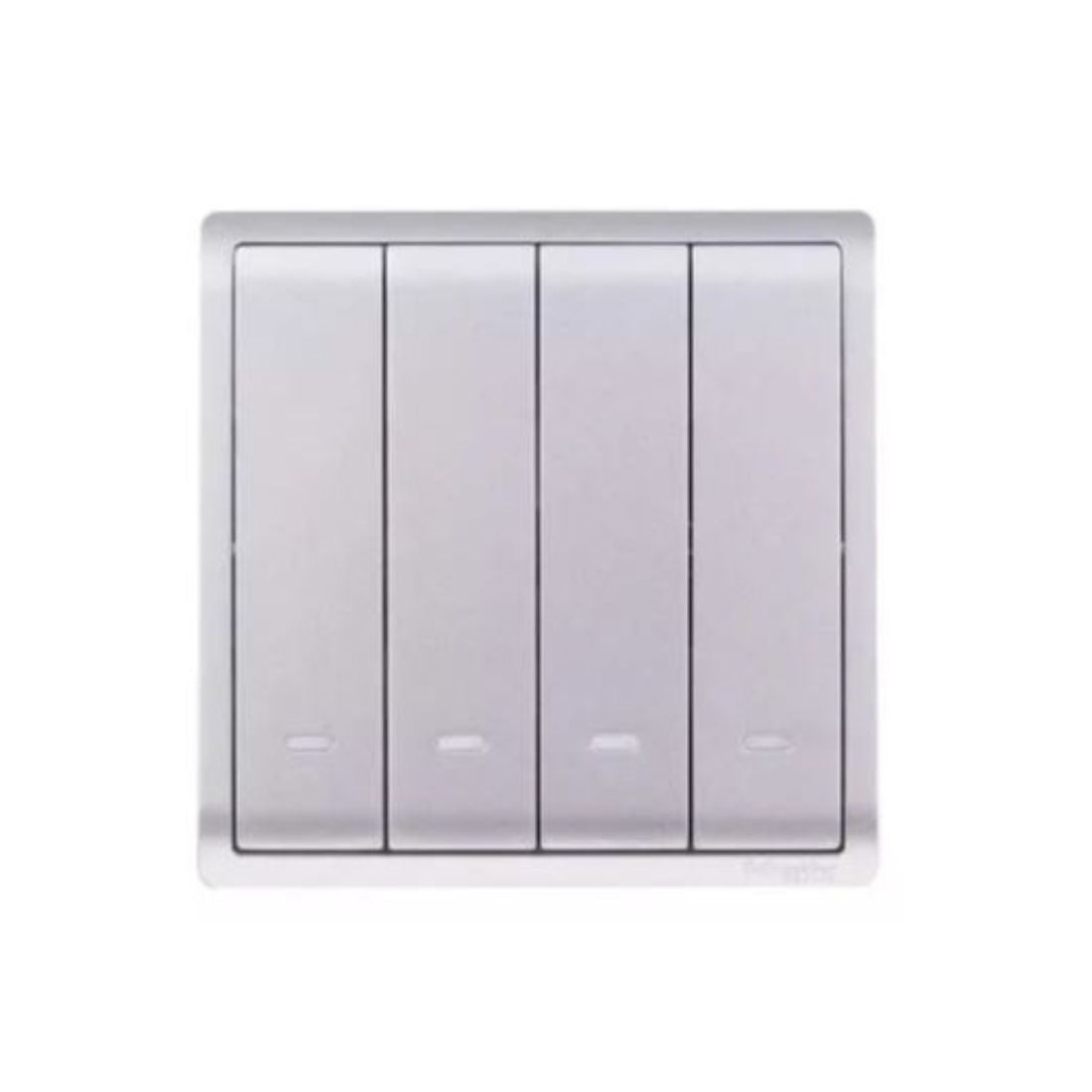

Schneider Electric E8234L1F_AS_G1 4G 1Way Switched With Fluorescent Locator is a type of switch commonly used in homes and commercial spaces to control lighting. The switch has four individual switches on it. Each switch can control a different light or set of lights.
The 1-way switch is a basic on/off switch. It controls one light or set of lights from one location. The switch itself might have a small indicator light that helps locate the switch in the dark. 10AX is a measure of the switch's current-carrying capacity. 250V is the maximum voltage the switch can handle. Aluminium Silver is the color of the switch.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Switched With Fluorescent Locator |
| Model | E8234L1F_AS_G1 |
| Color | Aluminium Silver |
| Load Type | Resistive, Fluorescent |
| Rated Current | 10 AX at 250 V AC 50 Hz |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.59 cm |
| Ambient Air Temperature for Operation | -5-40 °C |
| Depth | 23 mm |
| Embedding Depth | 23 mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 87mm |
| Local Signalling | Fluorescent (White) |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Number Of Gangs | 4 Gangs |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Width | 87mm |
| Switch Function | 1-way |
| Wiring Device Mounting | Surface, Flush |
| Connections - Terminals | Pillar Terminal |
| Standards | IEC 60669-1, SS 227-1, BS EN 60669-1, MS IEC 60669-1, GB 16915.1 |
| Weight | 114.96 g |
