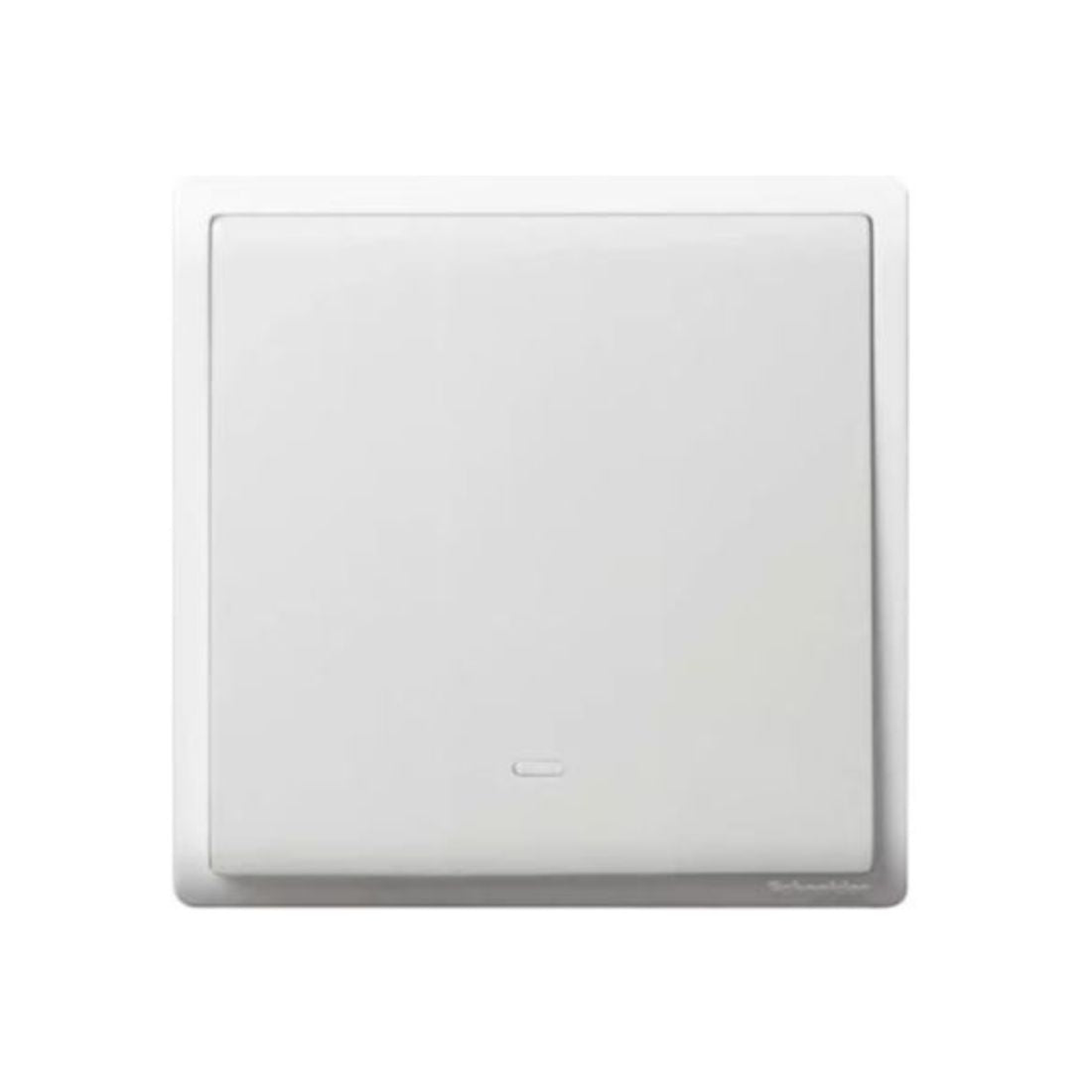

Schneider Electric Pieno E8231PRL1F 10A 250V 1 Gang Momentary Switch with Fluorsecent locator
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Momentary Switch
Description
Schneider Electric E8231PRL1F 1G Momentary Switch With Fluorescent Locator is a type of switch that is only active when it's being pressed, as opposed to a toggle switch which stays in its position until flipped again. It is a single-gang switch, which indicates it controls a single circuit.
This type of switch is only active as long as it's being pressed. There is a component on the switch that is made of fluorescent material, which may help locate the switch in the dark. 10A, 250V is designed to handle a maximum current of 10 amperes and a voltage of up to 250 volts. This type of switch is used in various applications, such as lighting control or any other scenario where a momentary action is desired.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Momentary Switch |
| Model | E8231PRL1F |
| Rated Currnet | 10 A at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.3 cm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Local Signalling | Fluorescent (White) |
| Product Certifications | CCC |
| Device Mounting | Flush, Surface |
| Embedding Depth | 21.2mm |
| Height | 87mm |
| IP Degree Of Protection | IP20 |
| Relative Humidity | 0-95 % |
| Material | Polycarbonate: surround, polycarbonate: grid plate |
| Number Of Gangs | 1 Gang |
| Range Of Product | Pieno |
| Switch Function | Momentary |
| Width | 87mm |
| Standards | GB 16915.1, IEC 60669-1 |
| Connections - Terminals | Pillar Terminal |
| Weight | 83.2g |
