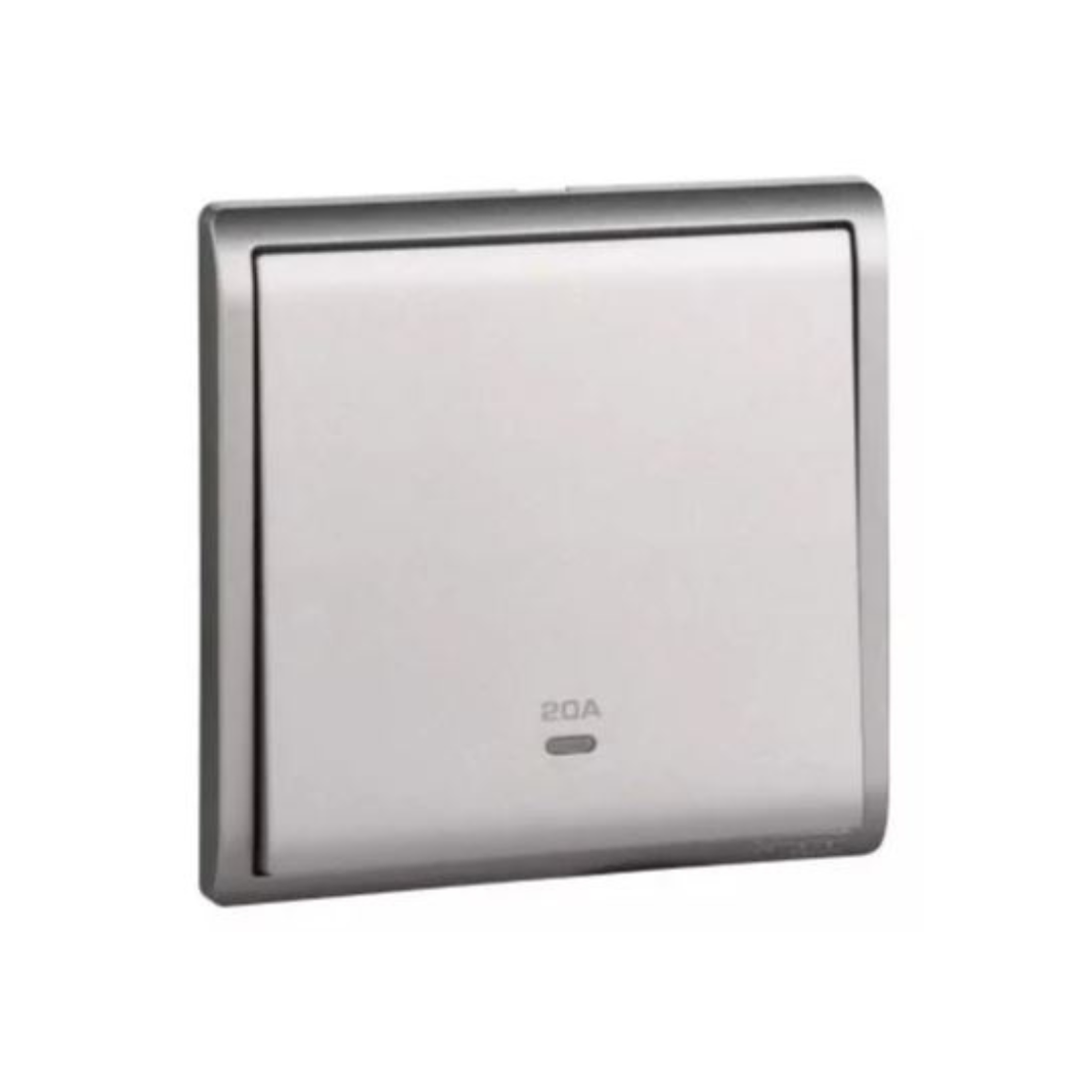

Schneider Electric Pieno Double Pole Switched with Neon 20A 250V 1 Gang E8231D20N_AS_G1 - Aluminium Silver
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Double Pole Switch
Description
Schneider Electric E8231D20N_AS_G1 Double Pole Switched With Neon is designed to control two separate circuits. Each pole can be used to control a different load. The switch has a small indicator light (neon) that is usually illuminated when the switch is in the ON position. This is useful for quickly identifying if the circuit is live.
20A, 250V is the maximum current and voltage the switch is rated for. It can handle up to 20 amperes of current at 250 volts. It is a single switch, controlling a single set of lights or a single load. Aluminium Silver is the color or finish of the switch plate.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for ideal rocker alignment
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8231D20N_AS_G1 |
| Color | Aluminium Silver |
| Load Type | Resistive, Fluorescent |
| Rated Current | 20 A at 250 V AC 50 Hz |
| Depth | 32.2mm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 1 x 6 mm² for stranded cable(s) |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.55 cm |
| Ambient Air Temperature for Operation | -5-40 °C |
| Embedding Depth | 23 mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 87mm |
| Local Signalling | Neon |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Number Of Gangs | 1 Gang |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Width | 87mm |
| Wiring Device Mounting | Surface, Flush |
| Connections - Terminals | Pillar Terminal |
| Standards | SS 227-1, MS IEC 60669-1, GB 16915.1, BS EN 60669-1, IEC 60669-1 |
| Weight | 149.91 g |
