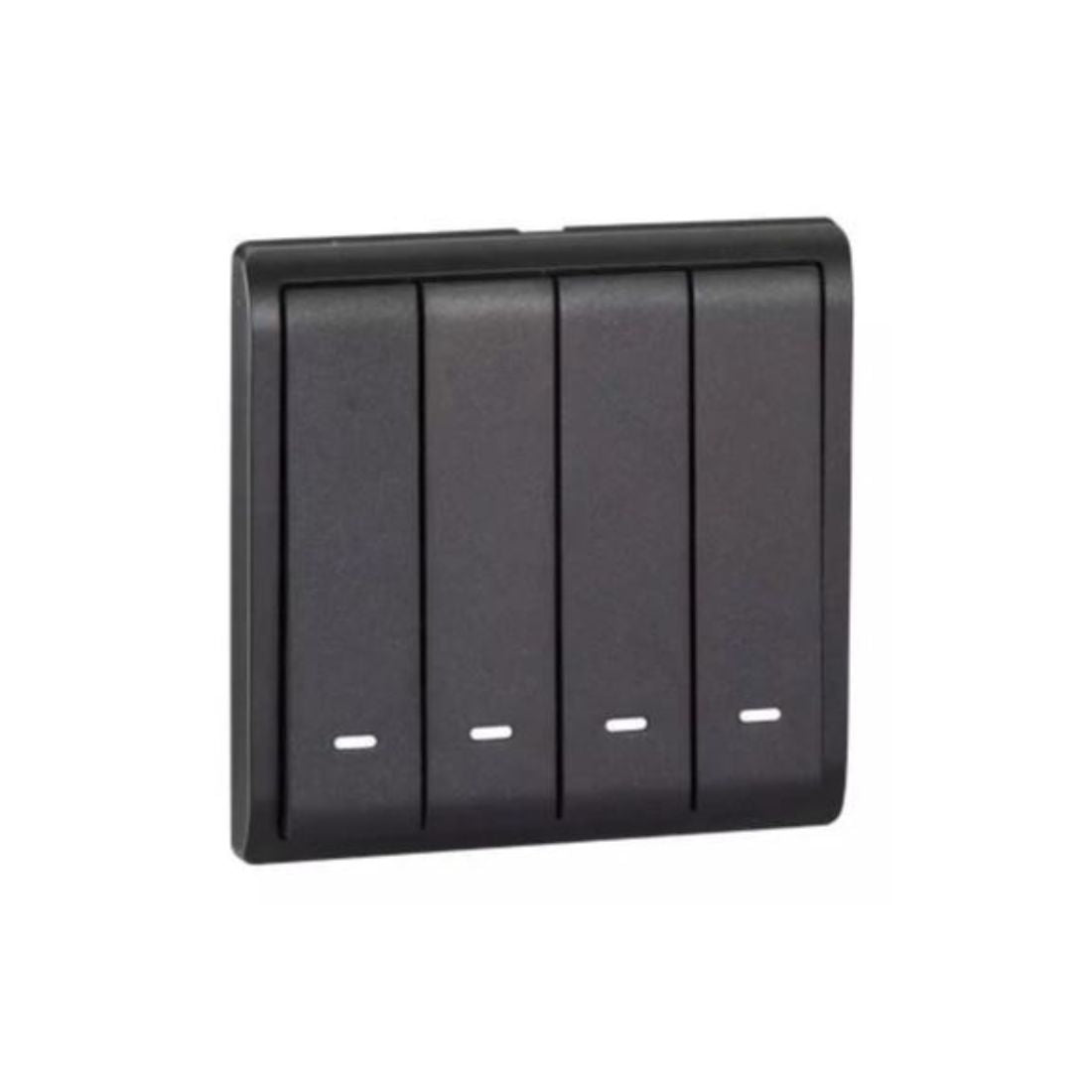

Schneider Electric Pieno 4 Gang 1 Way Switched with Fluorescent Locator 10AX 250V E8234L1F_MB_G1 - Matt Black
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8234L1F_MB_G1 4Gang 1Way Switched With Fluorescent Locator is a specific type of electrical switch commonly used in households or commercial spaces. There are four switches in a single unit. Each switch can control a different light or electrical device.
The switch can control a single light or device from one location. It has an on-and-off position. A fluorescent locator is a small indicator light, often used to help locate the switch in the dark. It emits a gentle glow. 10AX, 250V is the maximum current and voltage the switch is rated for. It is rated for a maximum current of 10 amperes (A) and a voltage of 250 volts (V).
Overall, the Schneider Electric E8234L1F_MB_G1 4Gang 1Way Switched With Fluorescent Locator is a multi-switch unit designed for controlling multiple devices or lights from a single location. It has a built-in locator light for convenience in the dark, and it's designed to handle a maximum of 10 amps at 250 volts. The matt black finish is an aesthetic choice.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Switched With Fluorescent Locator |
| Model | E8234L1F_MB_G1 |
| Color | Matt Black |
| Load Type | Resistive, Fluorescent |
| Rated Current | 10 AX at 250 V AC 50 Hz |
| Clamping Connection Capacity | 1 x 16 mm² For Solid Cable(s), 1 x 10 mm² For Stranded Cable(s) |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.59 cm |
| Ambient Air Temperature for Operation | -5-40 °C |
| Embedding Depth | 23 mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 87mm |
| Local Signalling | Fluorescent (White) |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Number Of Gangs | 4 Gangs |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Width | 87mm |
| Switch Function | 1-way |
| Wiring Device Mounting | Surface, Flush |
| Connections - Terminals | Pillar Terminal |
| Standards | BS EN 60669-1, MS IEC 60669-1, IEC 60669-1, GB 16915.1, SS 227-1 |
| Weight | 114.96 g |
