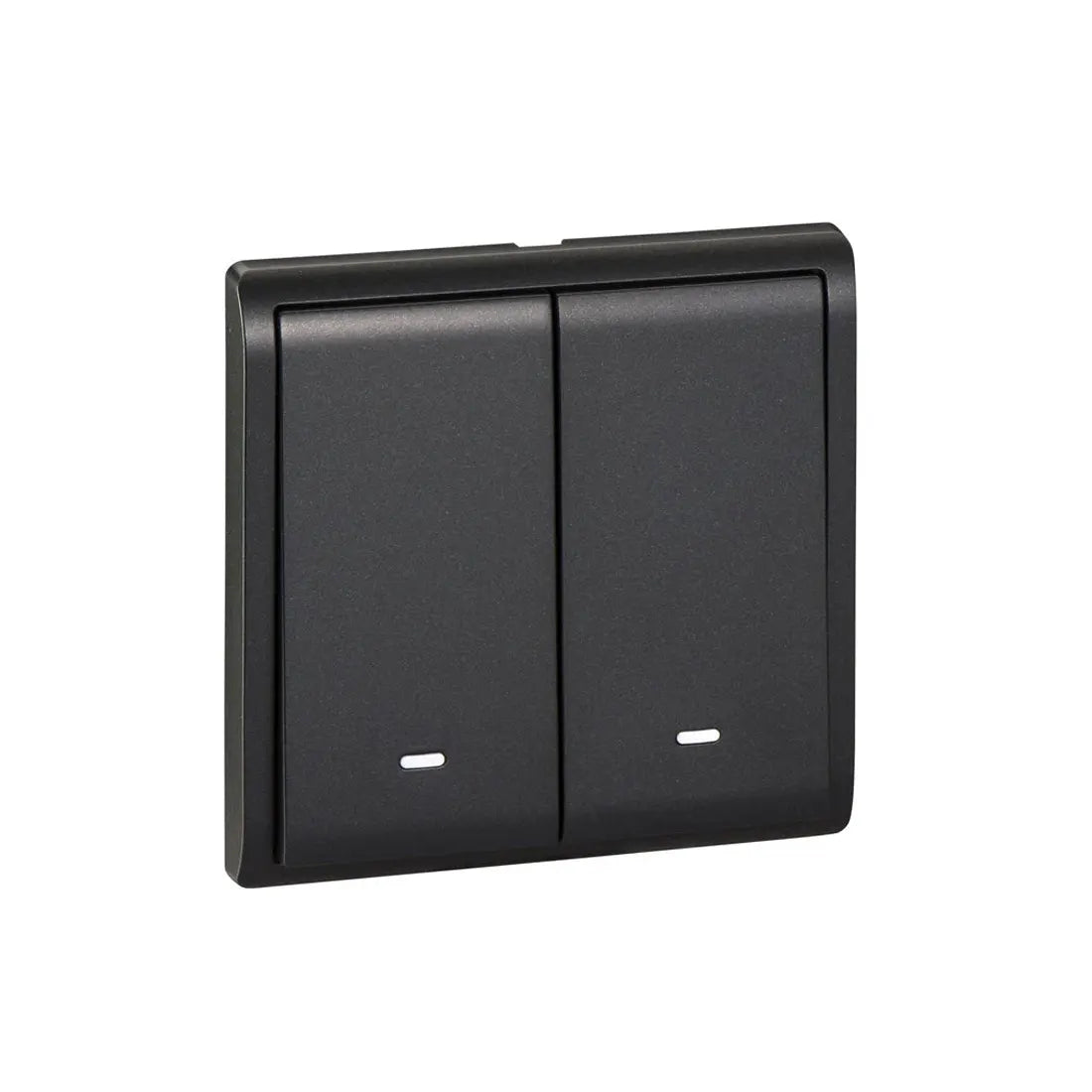

Schneider Electric Pieno 2 Gang 1 Way Switch with Fluorescent Locator 20A 16AX 250V E8232L1F20_MB_G1 - Matt Black
(Price Includes VAT)
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
The Schneider Electric Pieno 2 Gang 1 Way Switch is a stylish and functional switch designed for modern homes and commercial spaces. Finished in elegant matt black, it not only looks sleek but also offers practical features for everyday use.
With a fluorescent locator, this switch is easy to find in the dark, making it convenient and safe for night-time use. It is suitable for both fluorescent and resistive loads, supporting a rated current of 20A at 250V AC. The two-gang 1-way configuration allows you to control two separate lighting circuits independently.
Built from durable polycarbonate, the switch is strong and long-lasting. It can be installed flush or on the surface, and the pillar terminals accommodate both stranded and solid wires, ensuring a secure and reliable connection. Compact and practical, it measures 87 x 87 x 23 mm and performs efficiently in temperatures from -5°C to 40°C with up to 95% relative humidity
| Brand | Schneider Electric |
| Item Name | Switch With Fluorescent Locator |
| Model | E8232L1F20_MB_G1 |
| Color | Matt Black |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Wiring Device Mounting | Surface, Flush |
| Switch Function | 1-way |
| Rated Current | 20 A at 250 V AC 50 Hz |
| Local Signalling | Fluorescent (white) |
| Number of Gangs | 2 Gangs |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Connections - Terminals | Pillar Terminals |
| Clamping Connection Capacity | 2 x 1.5 mm² for Stranded Cable(s), 2 x 2.5 mm² for Solid Cable(s) |
| Embedding Depth | 23 mm |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 23 mm |
| Ambient Air Temperature for Operation | -5…40 °C |
| Relative Humidity | 0…95 % |
| Standards | BS EN 60669-1, MS IEC 60669-1, SS 227-1, IEC 60669-1, GB 16915.1 |
