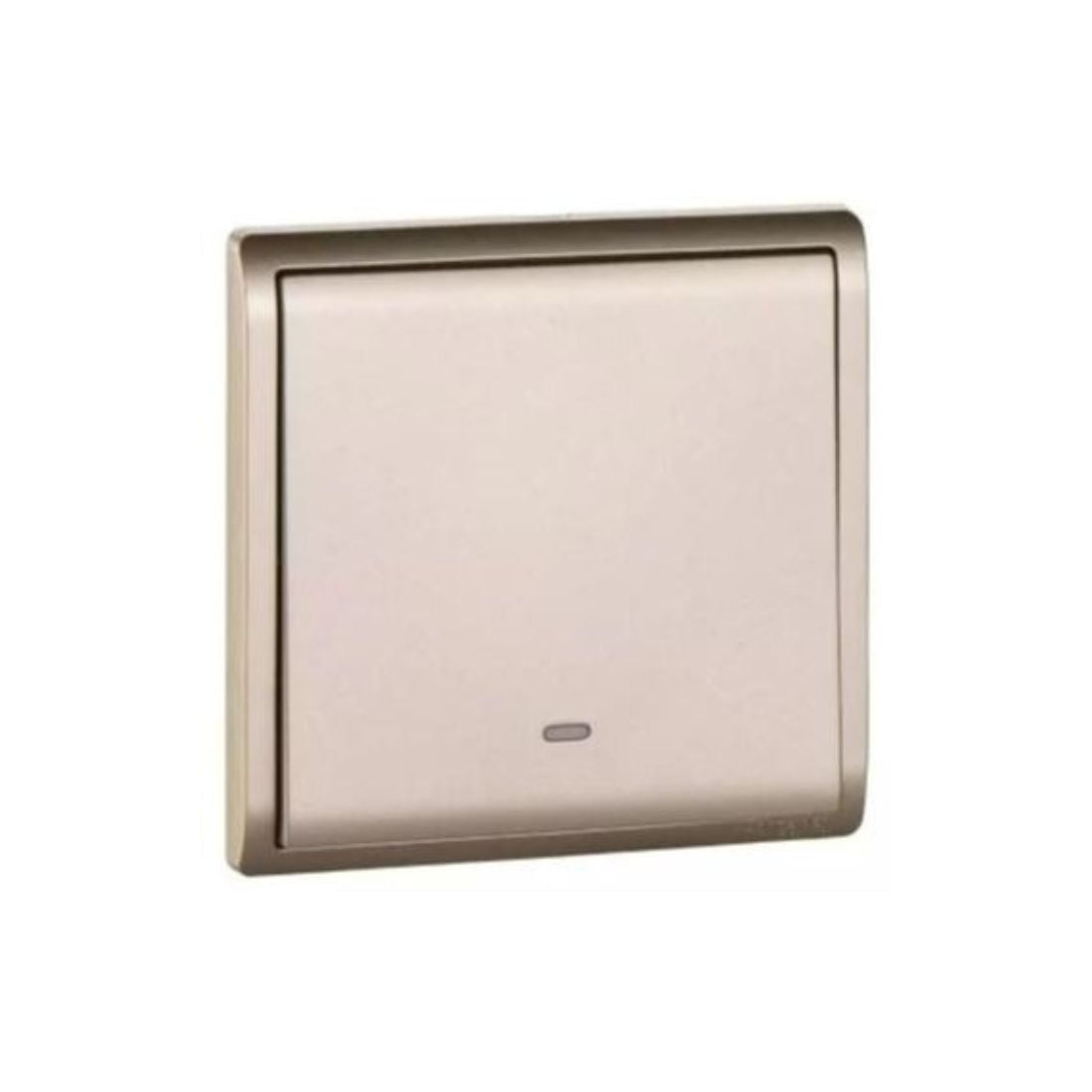

Schneider Electric Pieno 16AX 250V 1 Gang Intermediate switched with Fluorescent Locator Wine Gold E8231MF_WG_G1 - Wine Gold
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8231MF_WG_G1 Intermediate Switched With Fluorescent Locator is a type of switch used in electrical installations. It is an intermediate switch, which is a type of switch used in a multi-way switching system. The switch has a fluorescent locator. This is typically a small indicator light that glows when the switch is in the 'off' position. It makes it easier to find the switch in the dark.
16AX is the maximum current the switch is designed to handle. 250V is the maximum voltage the switch is designed to handle. In a 1G switch, there's only one switch in a single unit. Wine Gold is the color and finish of the switch.
Overall, the Schneider Electric E8231MF_WG_G1 Intermediate Switched With Fluorescent Locator is designed for medium-duty electrical applications and can handle a maximum of 250 volts. It's designed for a single-gang installation and comes in a wine-gold finish.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8231MF_WG_G1 |
| Color | Wine Gold |
| Load Type | Fluorescent, Resistive |
| Rated Current | 16 AX at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.17 cm |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Depth | 19.6 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Embedding Depth | 19.6 mm |
| Height | 87mm |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Local Signalling | Fluorescent (white) |
| Ambient Air Temperature for Operation | -5-40 °C |
| Number Of Gangs | 1 Gang |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Switch Application | Switch |
| Switch Function | Intermediate |
| Width | 87mm |
| Connections - Terminals | Pillar Terminal |
| Standards | GB 16915.1, IEC 60669-1 |
| Weight | 107.91g |
