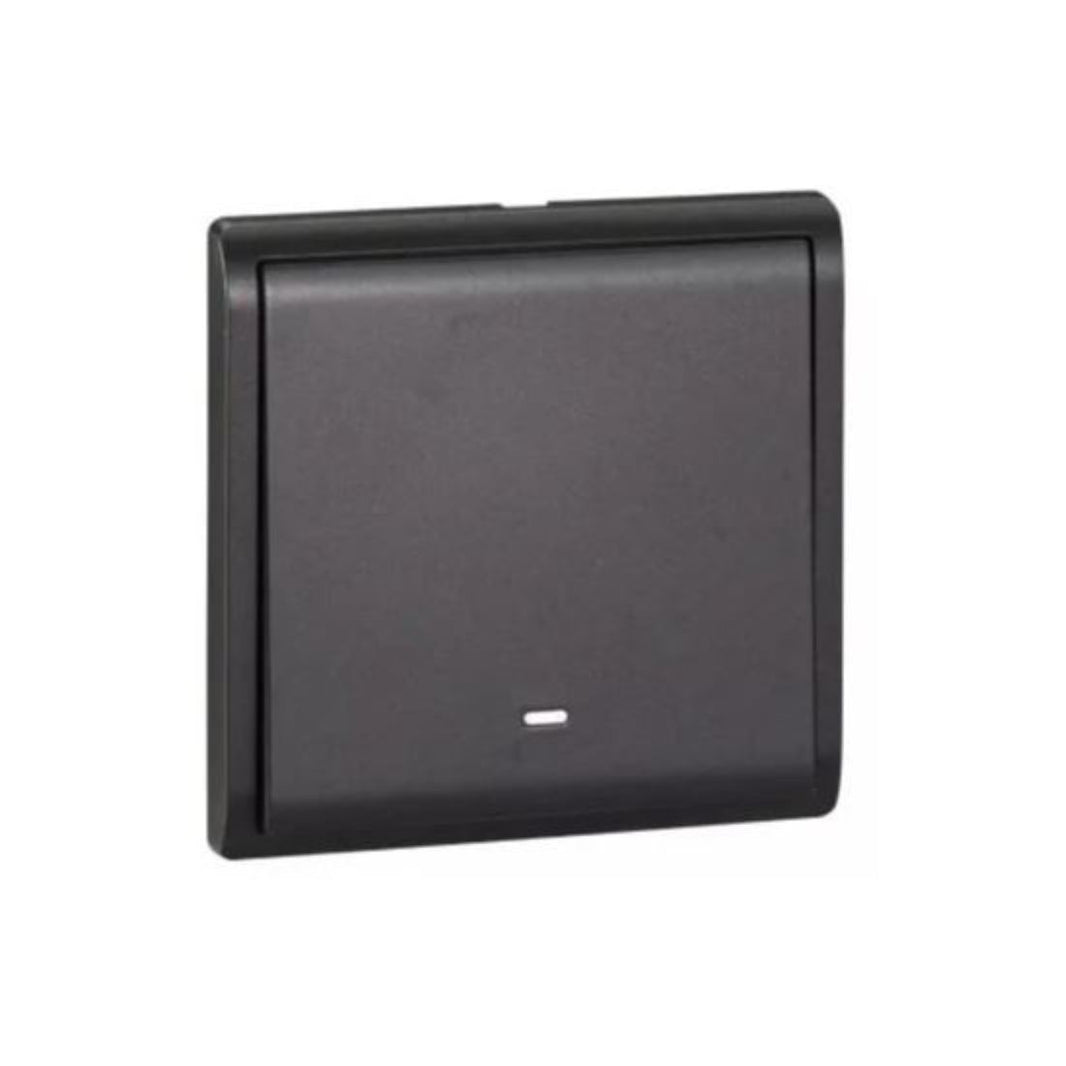

Schneider Electric Pieno 16AX 250V 1 Gang Intermediate Switched with Fluorescent Locator E8231MF_MB_G1 - Matt Black
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8231MF_MB_G1 Intermediate Switched With Fluorescent Locator is an electrical component commonly used in lighting systems. An intermediate switch is a type of electrical switch commonly used in lighting circuits. It is used in conjunction with two-way switches to control a single light or group of lights from multiple locations.
It has a small illuminated indicator, possibly using a low-power fluorescent light or an LED. 16AX is a rating for the switch, which means the switch can handle a current of up to 16 amperes. 250V is the maximum voltage the switch is designed to handle. 1Gang is the number of gangs or ways the switch can control.
Overall, Schneider Electric E8231MF_MB_G1 Intermediate Switched With Fluorescent Locator has a 16-ampere rating, can handle up to 250 volts, and is designed for a single gang. The switch comes in a Matt Black finish, which is a non-reflective black color. This type of switch could be used in various applications where control of lighting from multiple locations is required.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8231MF_MB_G1 |
| Color | Matt Black |
| Load Type | Fluorescent, Resistive |
| Rated Current | 16 AX at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.17 cm |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Depth | 19.6 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Embedding Depth | 19.6 mm |
| Height | 87mm |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Local Signalling | Fluorescent (white) |
| Ambient Air Temperature for Operation | -5-40 °C |
| Number Of Gangs | 1 Gang |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Switch Application | Switch |
| Switch Function | Intermediate |
| Width | 87mm |
| Connections - Terminals | Pillar Terminal |
| Standards | SS 227-1, MS IEC 60669-1, GB 16915.1, BS EN 60669-1, IEC 60669-1 |
| Weight | 107.91g |
