Schneider Electric Pieno 16A 250V 1 Gang Intermediate Switch with Fluorescent Locator E8231MF
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description

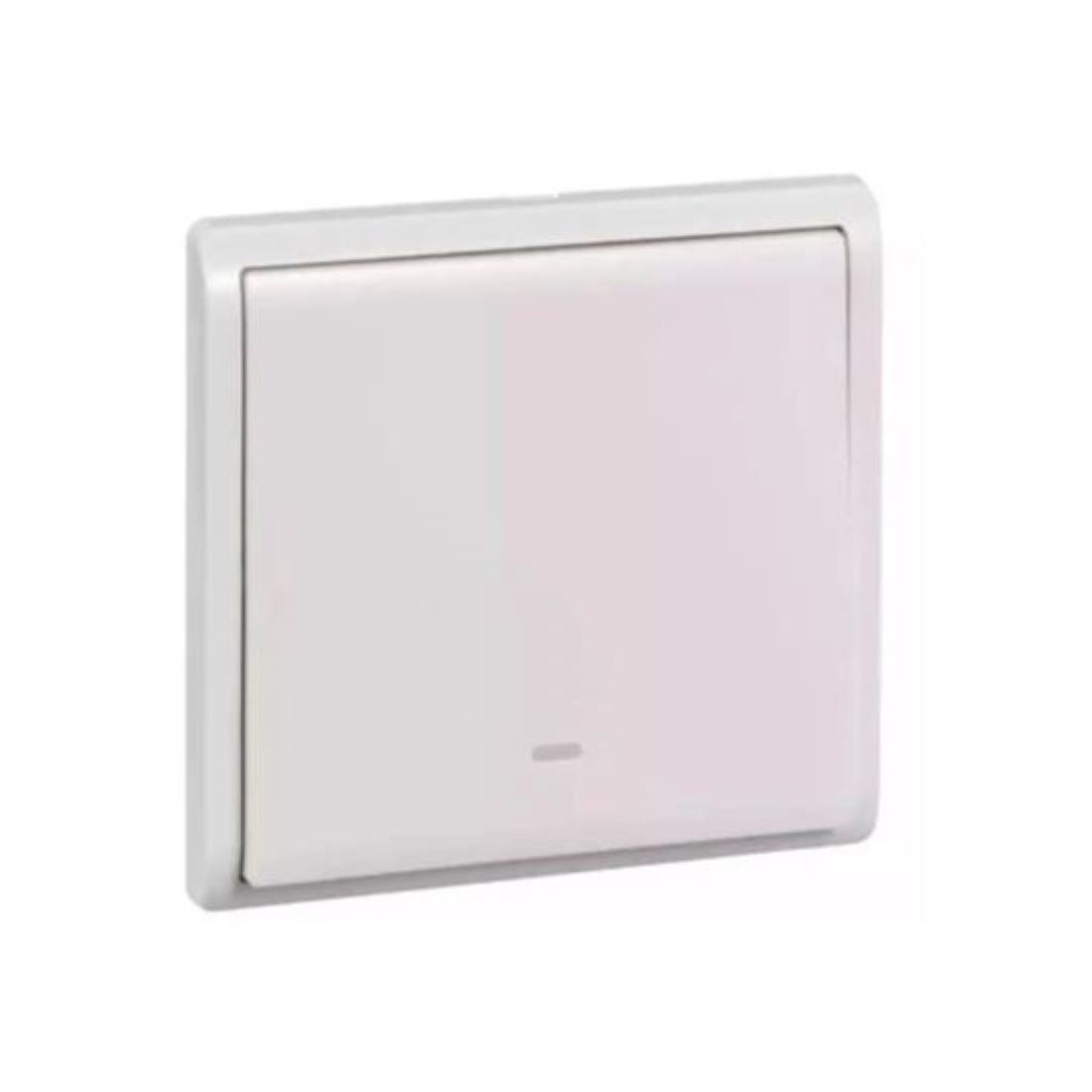

Schneider Electric E8231MF Intermediate Switch With Fluorescent Locator is a type of switch commonly used in a three-way lighting circuit, that controls a single light from multiple locations. This is a type of switch used in conjunction with two-way switches to control a single light from three or more locations. It's called an intermediate because it sits between the two-way switches in the circuit.
A fluorescent locator is a small light incorporated into the switch. It helps to locate the button in the dark, emitting a faint light even when the main light is turned off. 16AX is the switch's current carrying capacity. It can handle up to 16 amperes of current. 250V is the maximum voltage the button is designed to handle. It can handle up to 250 volts. 1 gang is the number of switch modules that can fit into a single mounting box. It is designed to fit into a standard single-gang electrical box.
In summary, the Schneider Electric E8231MF Intermediate Switch With Fluorescent Locator is rated for a maximum of 16 amperes at 250 volts and is designed to fit into a standard single-gang electrical box.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8231MF |
| Load Type | Fluorescent, Resistive |
| Rated Current | 16 AX at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.594 cm x 8.428 cm x 3.107 cm |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Ambient Air Temperature For Operation | -5-40 °C |
| Depth | 87mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Height | 87mm |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Local Signalling | Fluorescent (white) |
| Ambient Air Temperature for Operation | -5-40 °C |
| Number Of Gangs | 1 Gang |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Switch Application | Switch |
| Switch Function | Intermediate |
| Width | 87mm |
| Connections - Terminals | Pillar Terminal |
| Standards | GB 16915.1, IEC 60669-1 |
| Weight | 92.0g |
