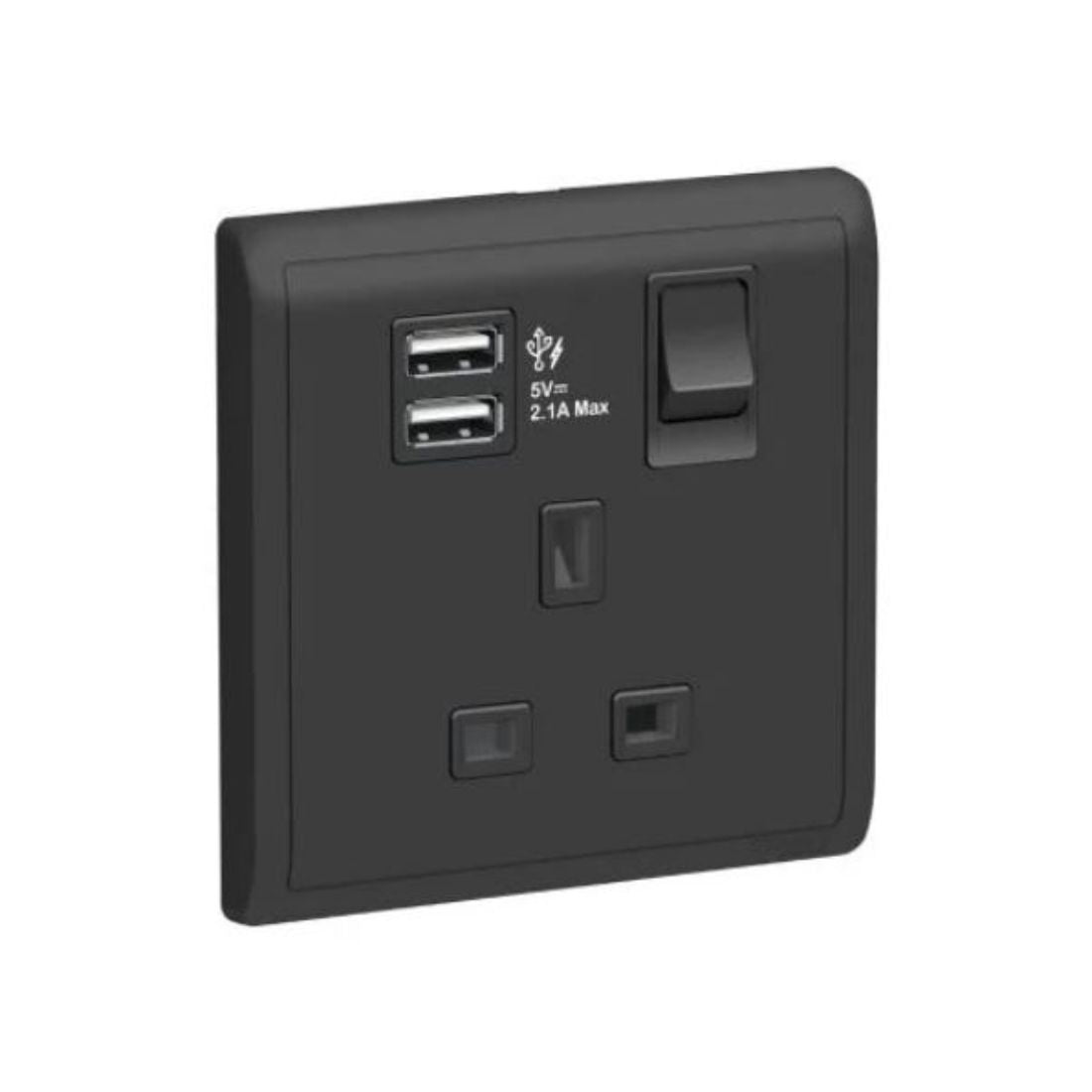

Schneider Electric Pieno 13A 1 Gang Switched Socket with 2.1A USB E8215USB_MB_G12 - Matt Black
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : USB With Switched Socket
Description
Schneider Electric E8215USB_MB_G12 13A, 1G, Switched Socket With 2.1A USB is an electrical outlet or receptacle that has an integrated switch, to control the flow of electricity to the connected device or appliance.13A is the maximum current rating of the socket, which is 13 amperes. This means it can handle devices that draw up to 13 amps of current. It has a single-gang socket, meaning it has one set of outlets.
The socket has an on/off switch, that can turn the power to the socket on or off using the switch. The socket has a USB port with a maximum output of 2.1 amperes. It directly charges devices that use USB cables, like smartphones or tablets.
Overall, Schneider Electric E8215USB_MB_G12 13A, 1G, Switched Socket With 2.1A USB is a single-gang unit with a 13A rated plug socket, an on/off switch, and a USB port capable of delivering up to 2.1 amperes. The matt black finish suggests it has a non-glossy appearance.
Features
- Provide both USB charging capabilities and traditional power outlets.
- Its connection terminals are screw terminals.
- Ideally suited for new construction and refurbishment projects
- Unique Full Flat Design
| Brand | Schneider Electric |
| Item Name | Switched Socket With USB |
| Model | E8215USB_MB_G12 |
| Clamping Connection Capacity | 1 x 4 mm² For Solid Cable(s), 2 x 4 mm² For Stranded Cable(s), 1 x 2.5 mm², 2 x 2.5 mm² |
| Rated Current Power Circuit | 13 A 220...250 V, AC, 50/60 Hz |
| Color | Matt Black |
| Connector Type | USB Type A |
| Depth | 42.15mm |
| Device Mounting | Flush 47mm |
| Device Presentation | Mechanism |
| Electrical Connection | 3 Screw Terminal |
| Embedding Depth | 30.1mm |
| Fixing Center | 60.3mm |
| Fixing Mode | By Screws M3.5 x 25mm |
| Input Power | 16W |
| Height | 87mm |
| IP Degree Of Protection | IP20 |
| Integrated Connection Type | 2 USB port 5 V DC, Maximum Load Current: 2.1 A |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Cover, Polycarbonate: Surround, Polycarbonate: Dolly, Nylon + GF: Shutter, Brass: Contact Plate, Steel: Spring, Nickel Steel: Terminal Screw |
| Number Of Gangs | 1 Gang |
| Number Of Power Socket Outlets | 1 x 2P + E With Shutters, British |
| Operating Altitude | <= 2000m |
| Power Consumption | 0.075W |
| Range | Pieno |
| Protection Type | USB port: over temperature protection with PWM IC circuit, USB port: over voltage protection against surges with PWM IC circuit, USB port: overcurrent between output phases and earth (on power up only) with PWM IC circuit |
| Relative Humidity | 0-95 % |
| Socket Number | 1 |
| Surface Finish | Glossy |
| Screwdriver Shape | Phillips |
| Surface Finish | Glossy |
| Surface Treatment | Painted |
| Switch Function | ON/OFF Power-Socket Outlet |
| Wire Stripping Length | 10-12 mm |
| Ambient Air Temperature For Operation | 0-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Standards | BS 1363-2, IEC 60950-1 |
| Environmental Characteristic | Alcohol, Liquid Soap |
| Width | 87 mm |
| Net Weight | 0.1064 kg |
| Quantity | 1 Pcs |
