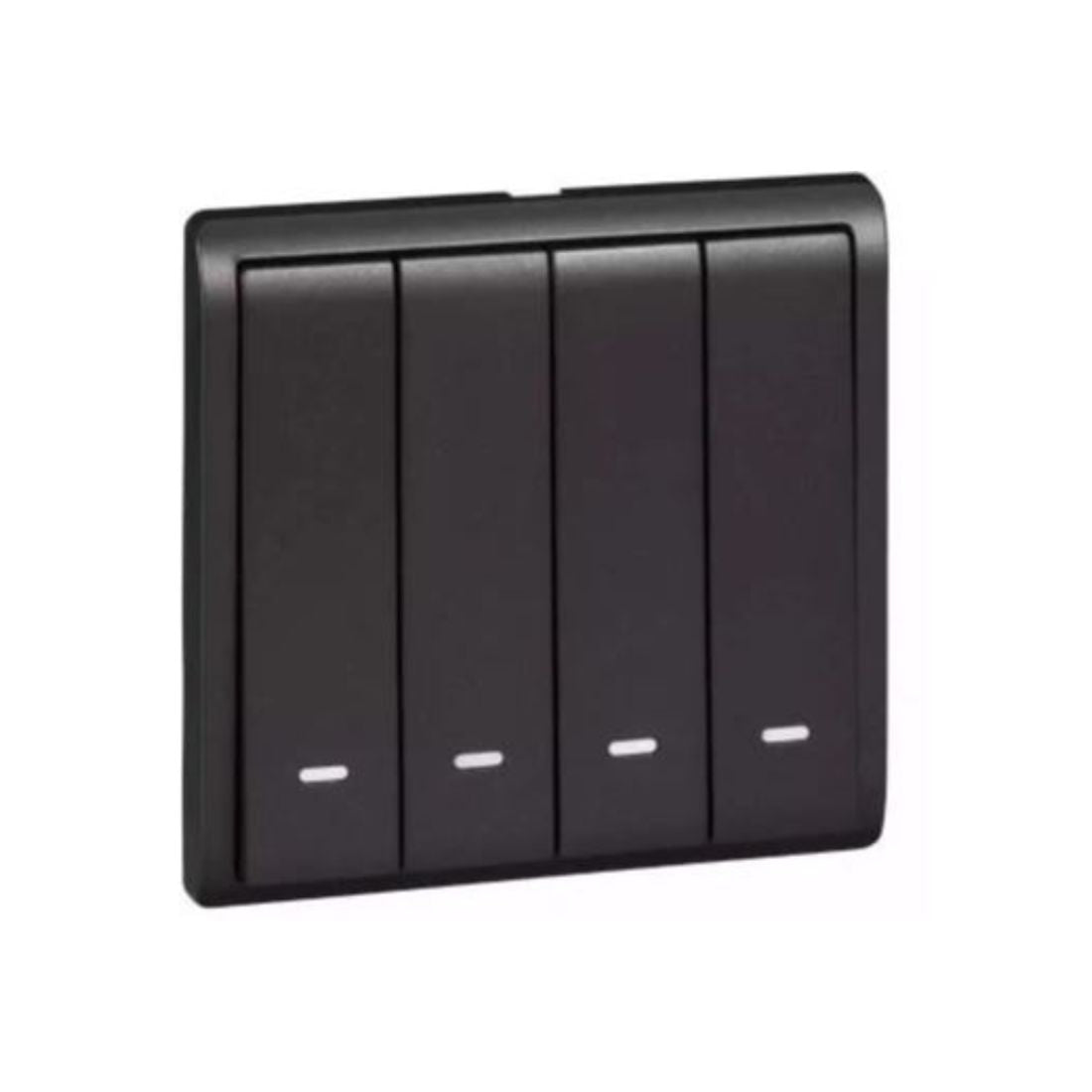

Schneider Electric Pieno 10AX 250V 4 Gang 2 Way Switched with Fluorescent Locator E8234L2F_MB_G1 - Matt Black
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8234L2F_MB_G1 4G 2Way Switched With Fluorescent Locator is a type of switch that is commonly used in conjunction with two 3-way switches to control a light or a group of lights from multiple locations. It has four gangs, meaning it can control four separate lights or sets of lights.
A 2-way switch is a type of switch that is used to control a single light fixture from two different locations. This is commonly used in staircases, hallways, and large rooms. It has a small fluorescent indicator to help locate the switch in the dark. 10AX is the amperage rating of the switch. 250V is the maximum voltage that the switch can handle. Matt Black is the color of the switch, indicating that it's black with a non-glossy finish.
Schneider Electric E8234L2F_MB_G1 4G 2Way Switched With Fluorescent Locator is often used in modern interior design schemes where the switch itself is meant to be a part of the decor.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Switched With Fluorescent Locator |
| Model | E8234L2F_MB_G1 |
| Color | Matt Black |
| Load Type | Resistive, Fluorescent |
| Rated Current | 10 AX at 250 V AC 50 Hz |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.59 cm |
| Depth | 23 mm |
| Ambient Air Temperature for Operation | -5-40 °C |
| Embedding Depth | 23 mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 87mm |
| Local Signalling | Fluorescent (White) |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Number Of Gangs | 4 Gangs |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Switch Application | Switch |
| Width | 87mm |
| Switch Function | 1-way |
| Wiring Device Mounting | Surface, Flush |
| Connections - Terminals | Pillar Terminal |
| Standards | MS IEC 60669-1, IEC 60669-1, GB 16915.1, SS 227-1, BS EN 60669-1 |
| Weight | 123.64 g |
