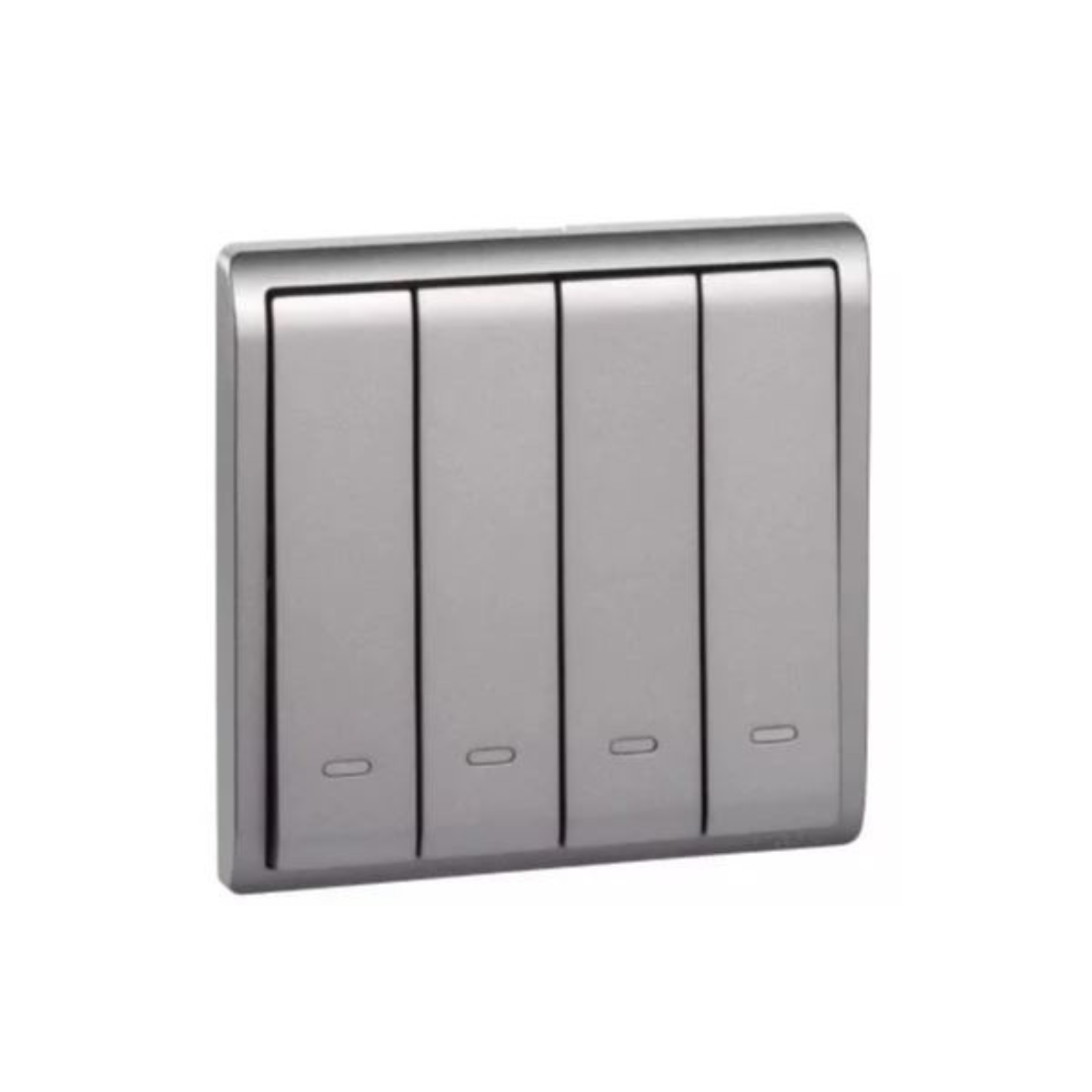

Schneider Electric Pieno 10AX 250V 4 Gang 2 way switched with Fluorescent Locator E8234L2F_AS_G1 - Aluminium Silver
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8234L2F_AS_G1 4G 2Way Switched With Fluorescent Locator is a kind of electrical switch structure widely used in private homes or commercial spaces to control lighting. This switch has four independent switches on the same plate. Each switch can control a different electrical fixture or circuit. It is a two-way switch.
A two-way switch is used to control a single light or electrical device from two different locations. The switch is equipped with a small indicator that helps locate the switch in the dark. 10AX, 250V is the electrical rating of the switch. It can handle a maximum load of 10 amperes at 250 volts. This is a common rating for light switches.
Overall, Schneider Electric E8234L2F_AS_G1 4G 2Way Switched With Fluorescent Locator can handle up to 10 amps at 250 volts. It's a two-way switch with a fluorescent locator, and it comes in an aluminum silver finish. This kind of switch would typically be used in a setting to has multiple lights or devices to control from a single location.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Switched With Fluorescent Locator |
| Model | E8234L2F_AS_G1 |
| Color | Wine Gold |
| Load Type | Resistive, Fluorescent |
| Rated Current | 10 AX at 250 V AC 50 Hz |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.59 cm |
| Ambient Air Temperature for Operation | -5-40 °C |
| Embedding Depth | 23 mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 87mm |
| Local Signalling | Fluorescent (White) |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Number Of Gangs | 4 Gangs |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Width | 87mm |
| Switch Function | 2-way |
| Wiring Device Mounting | Surface, Flush |
| Connections - Terminals | Pillar Terminal |
| Standards | MS IEC 60669-1, SS 227-1, IEC 60669-1, GB 16915.1, BS EN 60669-1 |
| Weight | 123.64g |
