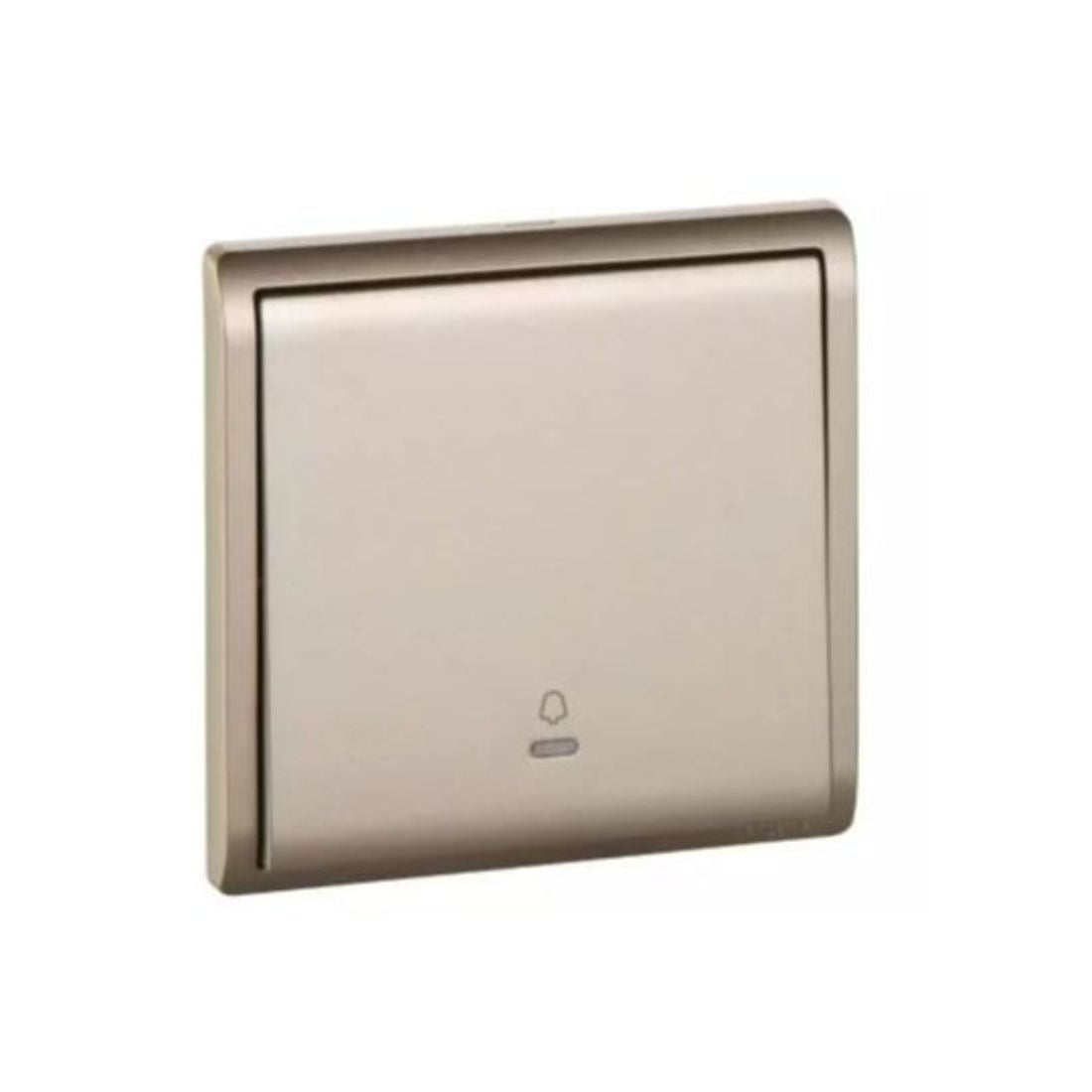

Schneider Electric Pieno 10A 250V 1 Gang Bell Press Switch E8231BPL1_WG_G1 - Wine Gold
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8231BPL1_WG_G1 1Gang Bell Press Switch is a type of switch that is typically used for controlling lights. 1Gang is the number of switch buttons on the plate, which means it has one switch button. 10A and 250V are the electrical ratings of the switch. It can handle up to 10 amperes (A) of current at 250 volts (V) of voltage. This means it's suitable for most household lighting applications. Wine Gold is the color and finish of the switch plate.
In summary, Schneider Electric E8231BPL1_WG_G1 1Gang Bell Press Switch is a single-button switch capable of handling up to 10A of current at 250V. It has a wine-gold color and finish. This type of switch is commonly used for controlling lights in a household setting.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Bell Press Switch |
| Model | E8231BPL1_WG_G1 |
| Color | Wine Gold |
| Rated Current | 10 A at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.57 cm |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| IP Degree Of Protection | IP20 |
| Embedding Depth | 23 mm |
| Height | 87 mm |
| Wiring Device Mounting | Flush, Surface |
| Material | Polycarbonate: surround, polycarbonate: grid plate |
| Maximum Ambient Air Temperature for Operation | -5-40 °C |
| Number Of Gangs | 1 Gang |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Local Signalling | Fluorescent (White) |
| Connections - Terminals | Pillar Terminal |
| Standards | SS 227-1, IEC 60669-1, MS IEC 60669-1, GB 16915.1, BS EN 60669-1 |
| Switch Application | Bell |
| Switch Function | Momentary |
| Width | 87mm |
| Weight | 89.64g |
