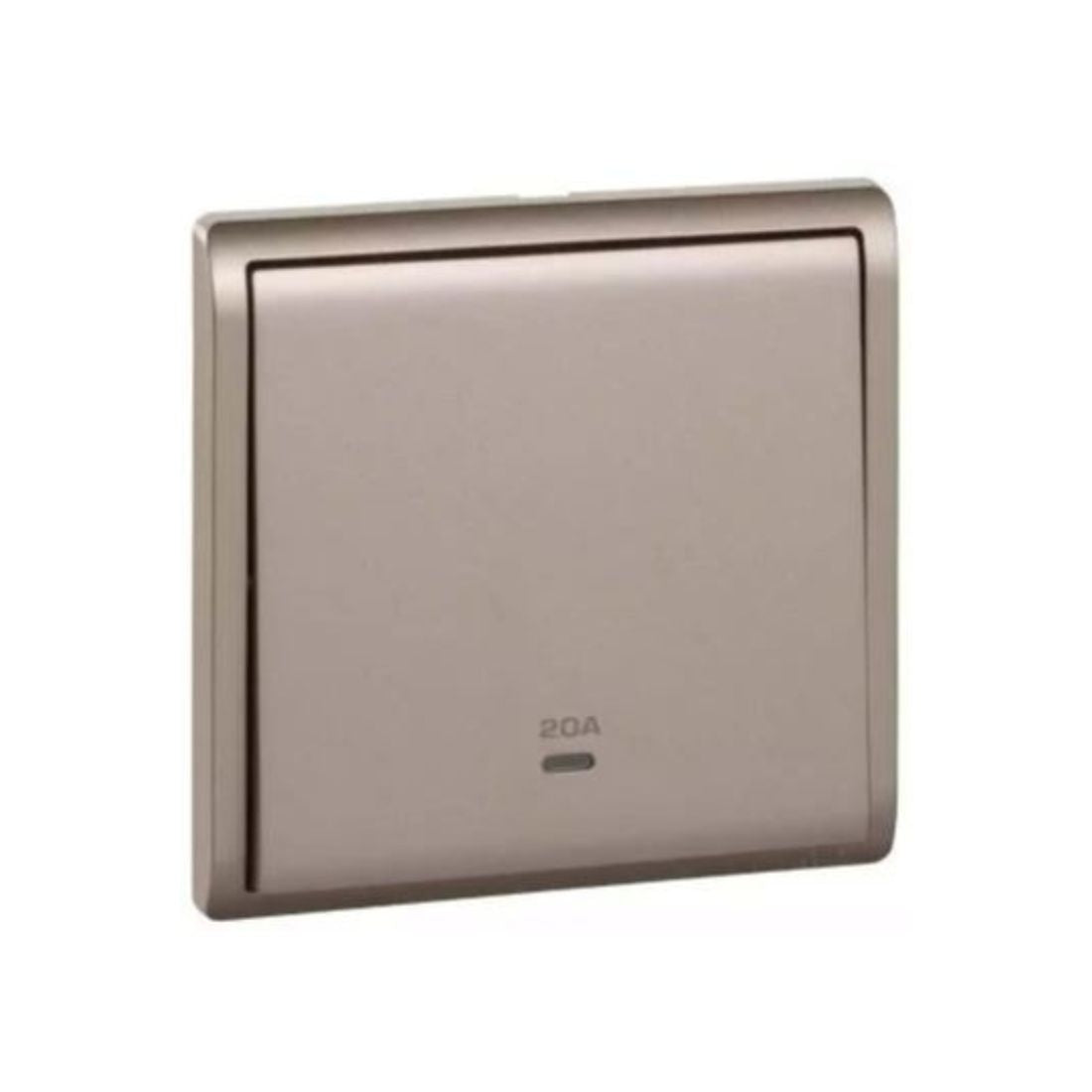

Schneider Electric Pieno 1 Gang Double Pole Switched with Neon Lamp 20A 250V E8231D20N_WG_G1 - Wine Gold
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Double Pole Switch
Description
Schneider Electric E8231D20N_WG_G1 1 Gang Double Pole Switched With Neon Lamp is a specific type of switch commonly used in electrical installations. The switch controls one set of contacts or one circuit, which means it's a single switch. The switch has two separate sets of contacts.
Each set can control a different circuit. It has a small indicator light (neon lamp) that will light up when the switch is turned on. This serves as a visual indicator. 20A, 250V is the electrical rating of the switch. It can handle a maximum current of 20 amperes and a maximum voltage of 250 volts. This makes it suitable for higher-power devices. Wine Gold is the color or finish of the switch.
So, in summary, Schneider Electric E8231D20N_WG_G1 1 Gang Double Pole Switched With Neon Lamp is a single switch that can control two separate circuits, each capable of handling up to 20 amps at 250 volts. It also has a neon lamp to indicate when the switch is on, and it comes in a wine-gold finish for aesthetic purposes.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for ideal rocker alignment
| Brand | Schneider Electric |
| Item Name | Double Pole Switch |
| Model | E8231D20N_WG_G1 |
| Color | Wine Gold |
| Rated Current | 20 A at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.55 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 1 x 6 mm² for stranded cable(s) |
| Wiring Device Mounting | Flush, Surface |
| Device Application | Control |
| Depth | 32.2 mm |
| Embedding Depth | 23 mm |
| Height | 87mm |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround |
| Number Of Gangs | 1 Gang |
| Local Signalling | Neon |
| Range | Pieno |
| Width | 87mm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Standards | SS 227-1, IEC 60669-1, MS IEC 60669-1, BS EN 60669-1, GB 16915.1 |
| Connections - Terminals | Pillar Terminal |
| Weight | 149.91 g |
