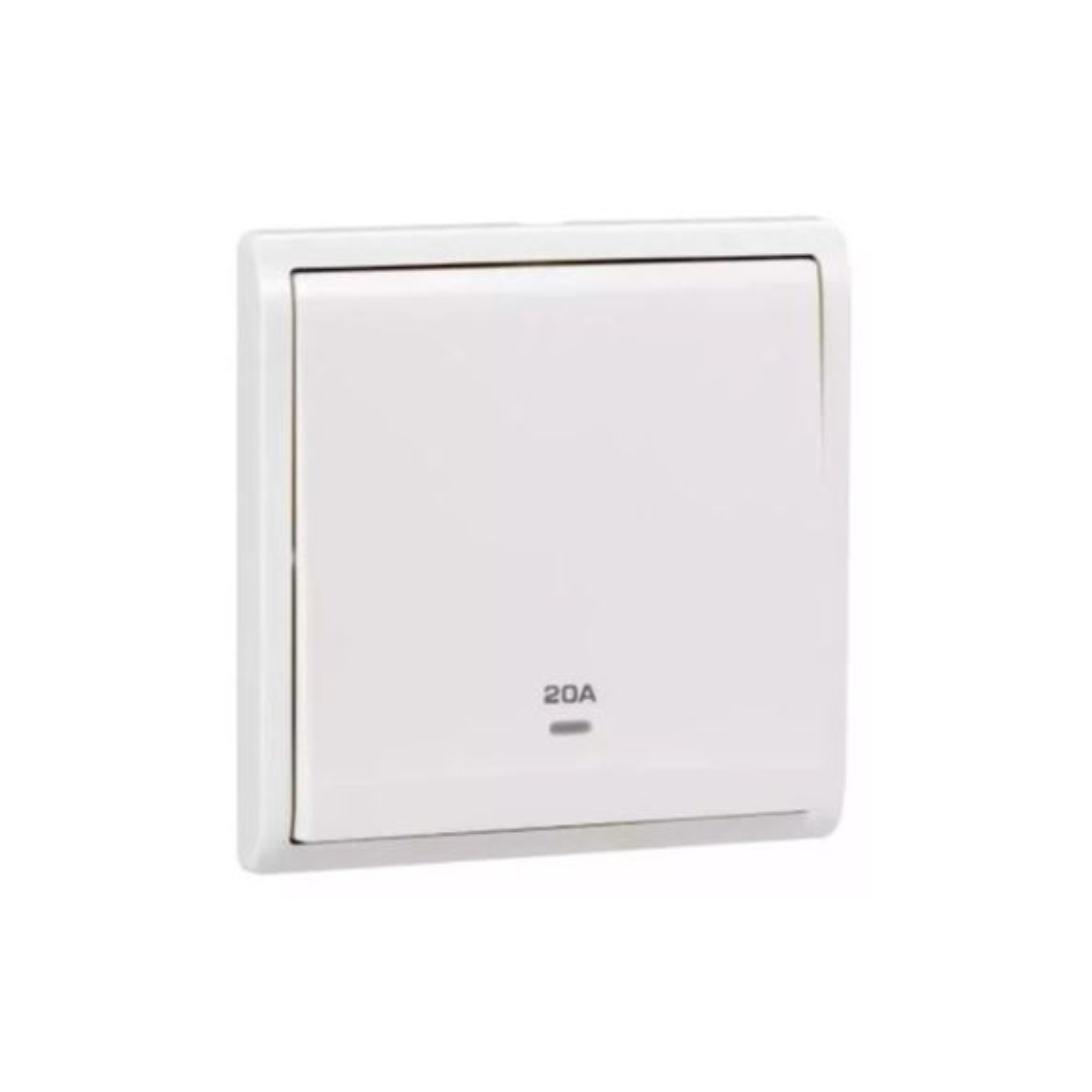

Schneider Electric Pieno 1 Gang Double Pole Switch with Neon 20A 250V E8231D20N
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Double Pole Switch
Description
Schneider Electric E8231D20N 1 Gang Double Pole Switch With Neon is an electrical switch commonly used for higher current applications. 1 Gang is the switch that has one set of switches in a single unit. It can control one set of electrical connections. The switch has two separate sets of contacts that can be used to control two independent circuits.
Each pole can control a separate live wire. The switch includes a small indicator light that illuminates when the switch is turned on. This is useful for quickly determining the switch's status, especially in the dark. 20A is the maximum current the switch can handle safely. 250V is the maximum voltage the switch is designed to handle.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Double Pole Switch |
| Model | E8231D20N |
| Rated Current | 20 A at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.25 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 1 x 6 mm² for stranded cable(s) |
| Wiring Device Mounting | Flush, Surface |
| Device Application | Control Switch |
| Height | 87mm |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround |
| Certifications | CCC |
| Number Of Gangs | 1 Gang |
| Local Signalling | Neon |
| Range | Pieno |
| Width | 87mm |
| Ambient Air Temperature For Operation | -5-40 °C |
| Standards | IEC 60669-1, GB 16915.1 |
| Connections - Terminals | Pillar Terminal |
| Weight | 109.49g |
