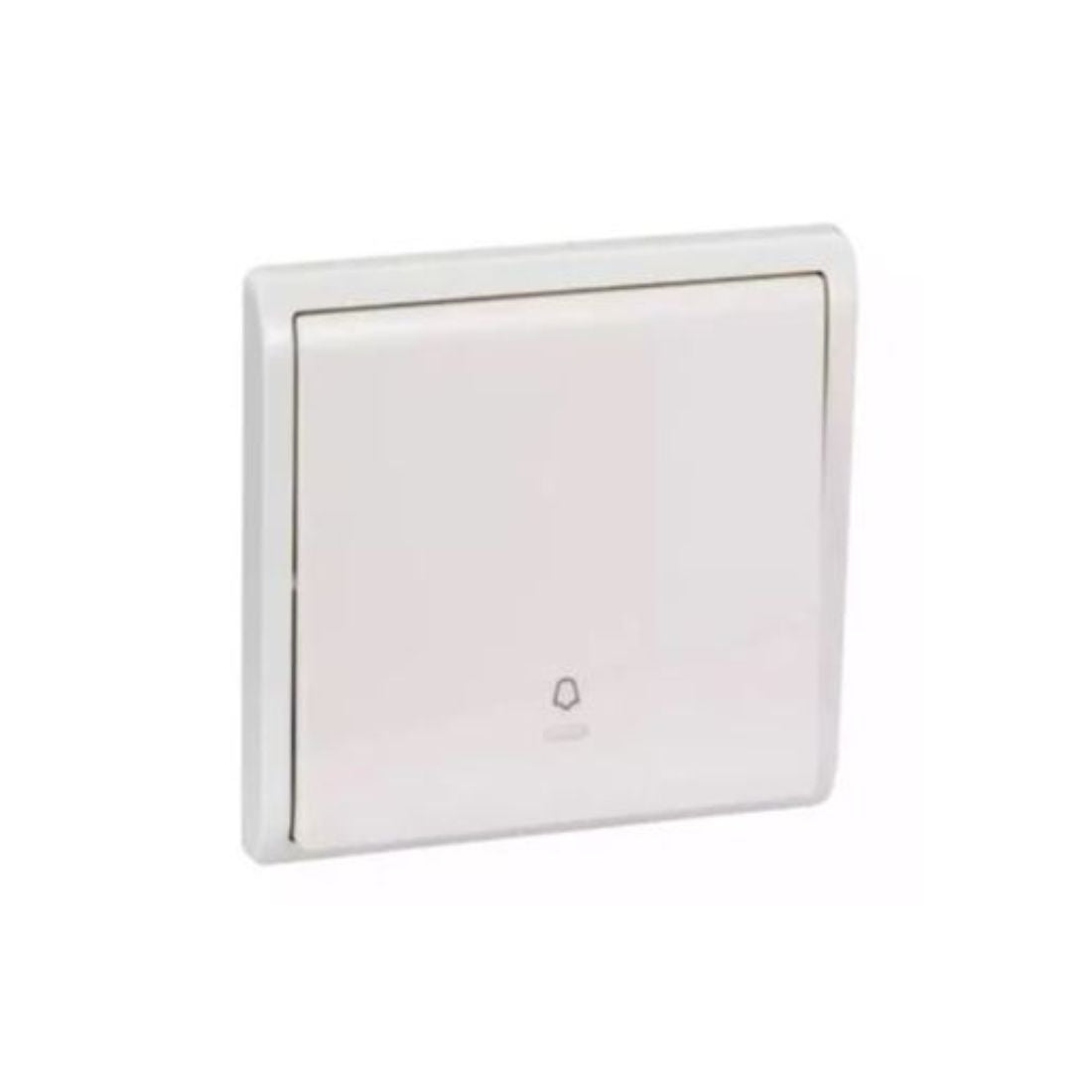

Schneider Electric Pieno 1 Gang Bell Press Switch with Fluorescent Locator 10A 250V E8231BPL1
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Bell Press Switch
Description
Schneider Electric E8231BPL1 1 Gang Bell Press Switch With Fluorescent Locator is designed for use in electrical circuits to control the flow of electricity to a specific device or lighting fixture. 1 Gang is the number of switches grouped together in a single unit. It is a 1-gang switch, meaning it has one switch. A bell press switch is typically a type of momentary switch that is often used for applications like doorbells or buzzers.
The switch has a Fluorescent Locator that allows it to be located in the dark. 10A, 250V is the electrical specifications of the switch. It's rated to handle a maximum of 10 amperes (A) of current at 250 volts (V) of voltage. This indicates the switch's capacity to handle electrical loads.
Overall, Schneider Electric E8231BPL1 1 Gang Bell Press Switch With Fluorescent Locator can handle devices or fixtures that draw up to 10A of current at 250V. It's designed with a momentary action (bell press) and has a feature (fluorescent locator) to make it visible in the dark.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for ideal rocker alignment
| Brand | Schneider Electric |
| Item Name | Bell Press Switch |
| Model | E8231BPL1 |
| Rated Current | 10 A at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.3 cm |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| IP Degree Of Protection | IP20 |
| Embedding Depth | 23 mm |
| Height | 87 mm |
| Wiring Device Mounting | Flush, Surface |
| Material | Polycarbonate: surround, polycarbonate: grid plate |
| Ambient Air Temperature for Operation | -5-40 °C |
| Number Of Gangs | 1 Gang |
| Certifications | CCC |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Local Signalling | Fluorescent (White) |
| Connections - Terminals | Pillar Terminal |
| Standards | IEC 60669-1, GB 16915.1 |
| Switch Application | Bell |
| Switch Function | Momentary |
| Width | 87mm |
| Weight | 155.8 g |
